Help CenterABB DSDX453 5716075-AN – Master Digital Expansion Unit for Advant/Master S100 I/O
Related Products
-
ABB DSCA114 57510001-AA Communication Board – System-bus and Serial Connectivity for Advant OCS CabinetsNegotiableMOQ: 1 Combo -
ABB DSMC112 57360001-HC Controller – Robust Control Board for ABB Drive and Process SystemsNegotiableMOQ: 1 Combo
-
ABB DSQC313 – Modular Controller Board for ABB S4/S4C Robot SystemsNegotiableMOQ: 1 Combo
-
ABB DSQC202 Industrial Interface Module – Reliable I/O Backbone for Legacy ABB Robot ControllersNegotiableMOQ: 1 Combo
-
ABB DSPC406 Processor Module – Reliable Control Processing for Demanding DCS/PLC EnvironmentsNegotiableMOQ: 1 Combo

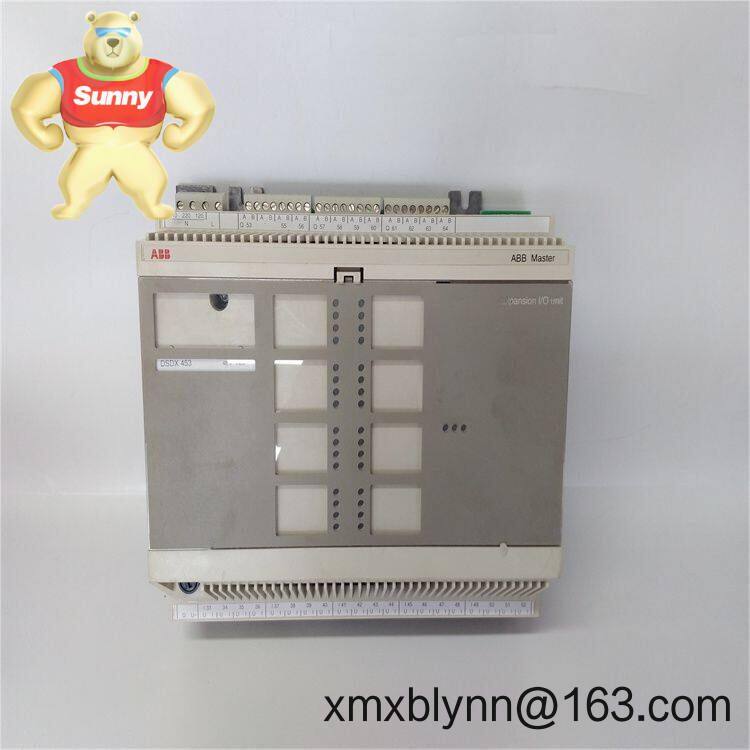

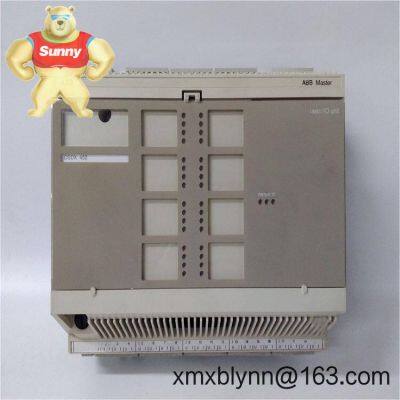

The ABB DSDX453 (part code 5716075-AN) is a rack-mounted digital expansion unit used in ABB Master/Advant S100 I/O systems to extend digital signal capacity and streamline addressing on established DCS platforms. It typically serves as a native, drop-in option for plants standardizing on ABB S100 racks, helping keep legacy installations running reliably while remaining serviceable.
From my experience, sites choose the DSDX453 when they need incremental digital expansion without changing controllers or rewiring marshalling cabinets. You get predictable scan performance, straightforward commissioning, and consistent diagnostics within the Advant/Master toolset.
Key FeaturesNative S100 rack compatibility – Designed to fit ABB Master/Advant S100 I/O racks for fast drop-in expansion.
Digital I/O capacity extension – Expands digital signal handling without changing the host controller strategy.
Deterministic scanning – Works with the backplane bus to maintain stable update times in most cases.
Status and diagnostics – Typical onboard indicators and system diagnostics help technicians verify health at a glance.
Address configuration – Usually supports simple address/signal grouping selection (e.g., DIP or coded settings) for clean integration.
Lifecycle-friendly – Helps extend installed base life; compatible with many mixed-generation ABB Master/Advant deployments.
| Brand / Model | ABB DSDX453 (5716075-AN) |
| System | Advant/Master S100 I/O family (rack-based) |
| Main Function | Digital expansion unit for extending and organizing digital I/O capacity |
| Power Requirements | Backplane powered from the S100 rack supply (typical for this series) |
| Signal Types Supported | Digital signals within the S100 I/O ecosystem; logic-level handling via rack-connected modules |
| Communication Interfaces | Interfaces to the S100 backplane/Master bus; no external fieldbus required for operation |
| Operating Temperature | 0 to 55 °C (typical for ABB rack I/O; verify site requirements) |
| Installation Method | Front-inserted S100 rack module with rear backplane connector |
You’ll typically see the DSDX453 used where Advant/Master systems are still the backbone: power generation, pulp & paper lines, metals processing, oil & gas units, and municipal water plants. In brownfield upgrades, it seems to be a practical way to add I/O headroom without disturbing legacy cabinets or marshalling.
Power & Utilities – Turbine auxiliaries, boiler protection interlocks, and field interposing relays.
Pulp & Paper – Conveyor logic, machine safety chains, and distributed limit switches.
Metals – Drive permissives, furnace interlocks, and emergency stop networks.
Oil & Gas – Skid package I/O, wellhead logic, compressor control panels.
Water & Wastewater – Pump start/stop, valve end switches, alarm annunciation.
Compatibility – Works within the existing S100 ecosystem; no new protocols or gateways for basic expansion.
Reduced downtime – Swap-in replacement is straightforward; commissioning typically aligns with existing controller tools.
Cost control – Extends the useful life of ABB Master/Advant assets; avoids a full I/O migration cycle.
Maintainability – Clear diagnostics and predictable behavior help maintenance teams resolve issues quickly.
“We used DSDX units to add alarm points on a turbine skid without touching the control logic,” a maintenance supervisor told me. “It was plug-and-run, and the operators noticed zero change in timings.”
Mounting – Install in an ABB S100 I/O rack slot. Ensure the backplane connector is fully seated and the card is latched.
Environment – Keep within the rack’s specified temperature range; provide cabinet ventilation and avoid vibration hot spots.
Wiring – Field wiring remains on associated digital I/O modules; verify grouping and address selection align with the controller database.
Safety – Isolate cabinet power before insertion/removal. Handle using ESD protection; avoid touching backplane contacts.
Routine maintenance – Visually check status LEDs and rack health, clean dust filters, and confirm diagnostics in the engineering station. Firmware/parameter revisions should match the configured project, especially during like-for-like replacements.
Manufactured to ABB industrial quality standards for DCS hardware.
CE compliance typical for Advant/Master rack modules; UL and other approvals may apply by batch and region.
RoHS applicability depends on production date; many installed-base spares predate current RoHS regimes.
Warranty: subject to supplier policy; ABB and certified distributors typically provide a standard limited warranty on functional performance.
Note: DSDX453 5716075-AN revision details can vary slightly by build. If you’re matching an existing system, share the rack type and current module revision so we can confirm exact compatibility.
