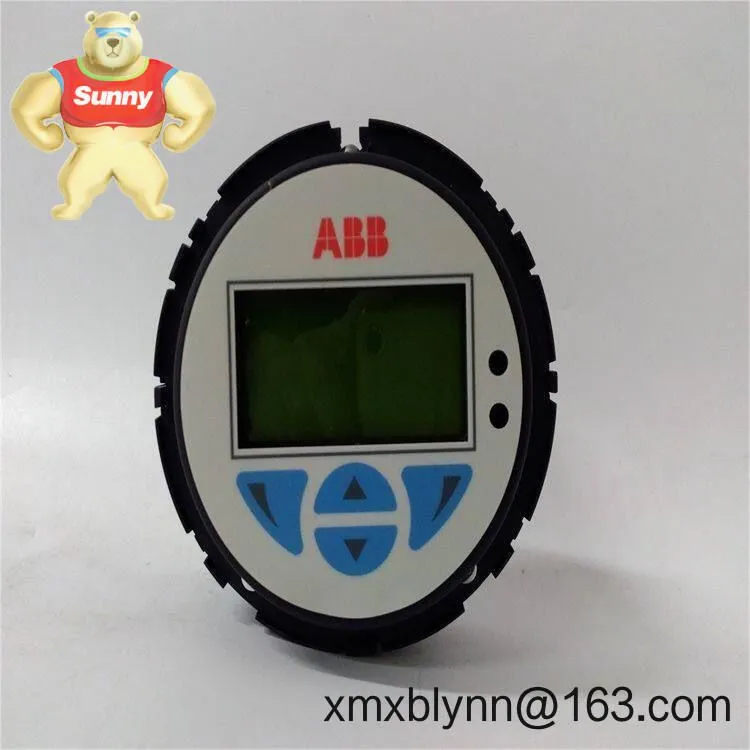

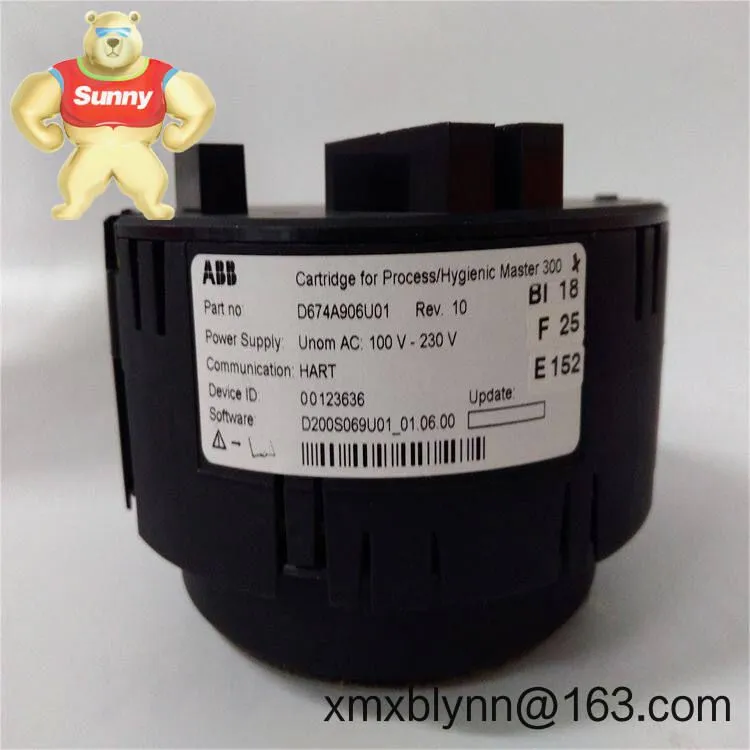

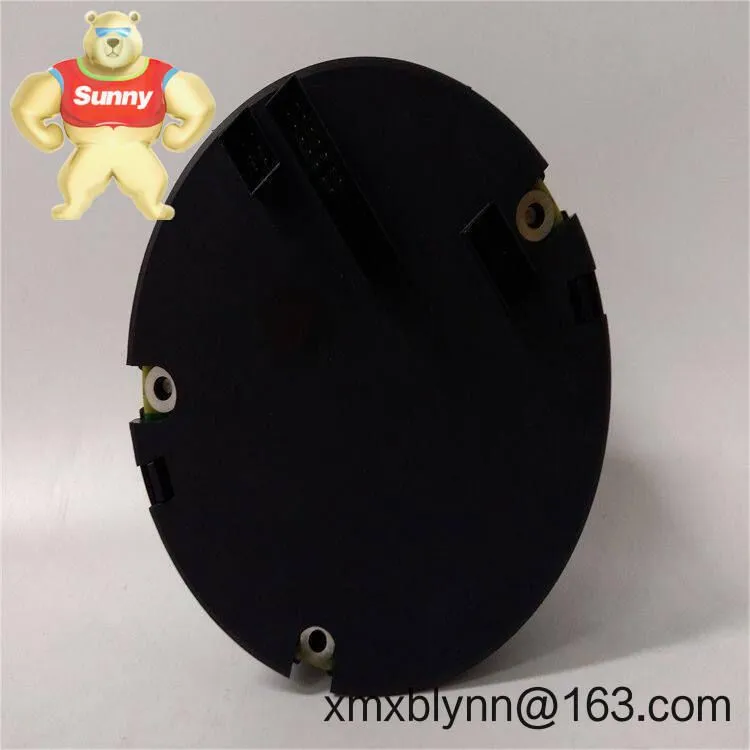

The ABB D674A906U01 is a plug-in electronics cartridge designed for select ABB HART-based field instruments—typically used to restore functionality quickly without replacing the entire transmitter or positioner. From my experience, it’s a practical spare that helps maintenance teams recover 4–20 mA + HART communication, keep loop integrity, and minimize downtime in demanding process environments.
The “U-high” variant generally indicates a high supply tolerance, which in many cases suits long cable runs, higher loop impedance, or installations with intrinsically safe barriers. You might notice that swap-outs take minutes—pull the old module, seat the new cartridge, then validate with a HART communicator.
Key FeaturesHART-enabled 4–20 mA loop – Restores digital communication for configuration, diagnostics, and trim over the standard current loop.
U-high supply tolerance – Typically supports wider loop voltage/impedance conditions; helpful with long cable runs or barriers.
Drop-in replacement – Designed as a plug-in electronics module for the designated ABB housing; no re-piping or re-wiring in most cases.
Service-friendly – Swap within minutes to bring a device back online; great for plants prioritizing MTTR reduction.
Configuration retention – Works with standard HART tools to restore ranges, damping, and tags; usually backward compatible with site tools.
Robust build quality – ABB cartridges are engineered for industrial environments and continuous operation.
This cartridge supports HART-based ABB instruments used across:
Oil & Gas / Petrochemical – Restores pressure, level, or valve position feedback on critical loops where downtime is costly.
Chemicals & Pharmaceuticals – Keeps validated loops operational with minimal intervention and consistent configuration control.
Water & Wastewater – Ideal for remote stations with long cable runs; the U-high tolerance seems to help with loop voltage headroom.
Power Generation & Pulp/Paper – Quick recovery on harsh-duty instruments while preserving HART diagnostics.
Food & Beverage – Supports tight process control with predictable HART-based commissioning.
Reduced downtime – Swap the electronics instead of removing the entire device; typically back in service within the same shift.
Cost-efficient repair – Lower total cost than full instrument replacement, especially on large installed bases.
Compatibility with site tools – Works with common HART communicators and asset management systems for fast commissioning.
Inventory simplicity – Keeping a few cartridges on hand often covers multiple installed devices (subject to model match).
Reliability – ABB-grade components and testing help ensure stable loop performance once installed.
Preparation – Isolate and de-energize the loop. If mounted on a pressure device, no process opening is required for the electronics swap, but follow plant LOTO procedures.
ESD care – Use an ESD wrist strap and handle the cartridge by edges. Avoid touching exposed components.
Seating – Open the instrument housing, release the old module, and insert the D674A906U01 firmly. Ensure connectors mate cleanly; tighten fixings per the service manual.
Wiring & sealing – No wiring changes in most cases. Check cable glands and housing O-rings for proper sealing before re-energizing.
Configuration – With a HART communicator (e.g., ABB DHH805 or a HART modem), restore ranges, URV/LRV, tags, and damping. Perform a quick output trim if your QA practice requires it.
Routine maintenance – Periodically verify loop current, check HART diagnostics, and update firmware if supported by the host device.
Environment – Typical cabinet or field-mount housings are acceptable; ensure condensation control and avoid continuous vibration where possible.
Certifications – Aligns with the host instrument’s approvals; typically CE and RoHS. Many host devices also carry cULus and hazardous area approvals (ATEX/IECEx)—verify for your exact model.
Manufacturing standards – Built to ABB’s industrial quality standards for long-term operation.
Warranty – Standard manufacturer warranty applies; in most cases 12 months from shipment for spare parts (check your purchase terms).
Quick tip: before ordering, match D674A906U01 against your device’s spare-parts list or nameplate options. That small check avoids compatibility surprises and gets you the right U-high/HART unit the first time.
