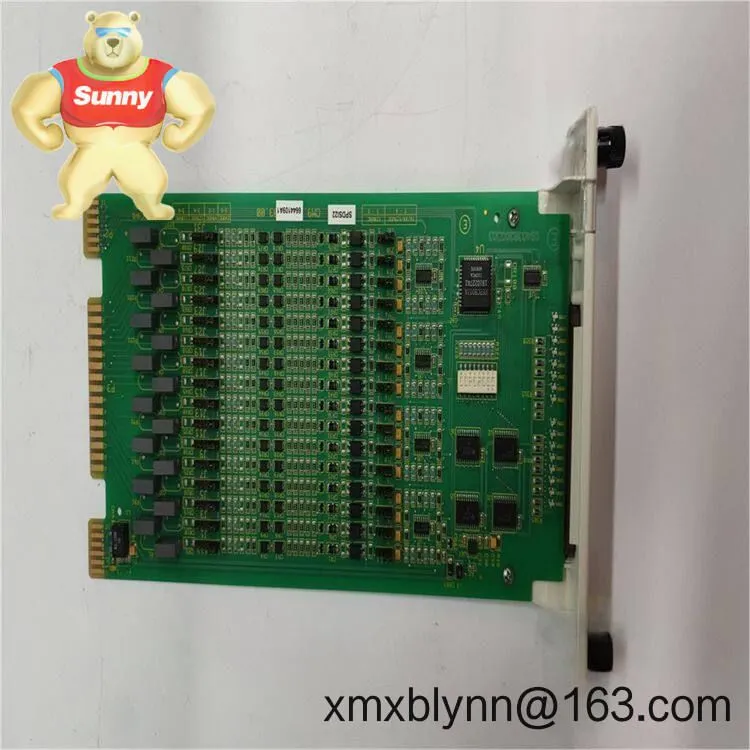

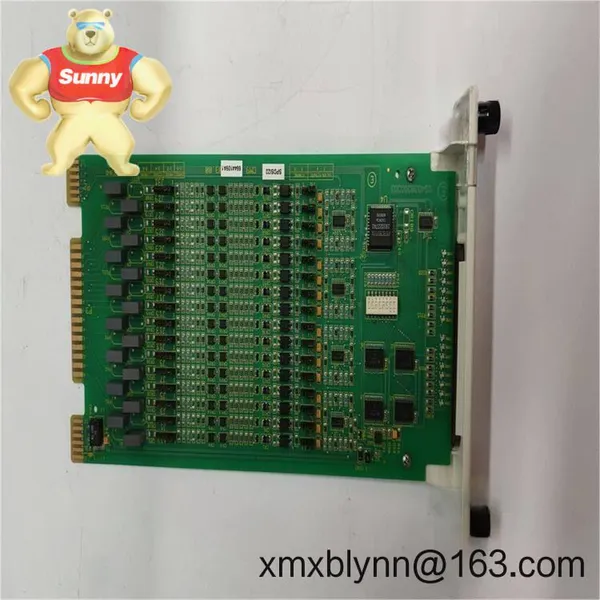

The ABB Bailey IMDSO14 is a discrete digital output module designed for INFI 90 and Symphony Harmony DCS installations. It handles on/off control for field devices—solenoids, contactors, lamps, interlocks—where dependable switching and clear diagnostics matter. In many cases it’s used as a direct drop‑in replacement to keep mature plants running without redesigning I/O.
From my experience, the strength of the IMDSO14 is its predictable behavior and tight integration with the controller and termination hardware. You might notice that it reduces nuisance trips by providing stable, isolated output channels that play nicely with existing wiring practices.
Discrete output control – Drives on/off field loads typically used for valves, motor starters, beacons, and interlocks.
INFI 90/Symphony compatibility – Works within the ABB Bailey INFI 90 I/O architecture so engineering databases and diagnostics remain consistent.
Channel isolation and noise immunity – Typically optically isolated driver stages with good noise tolerance for electrically harsh panels.
Diagnostic feedback – Status and health bits report to the control system, helping maintenance spot wiring or channel faults quicker.
Field power flexibility – Uses external field supply routed through the termination unit, so you can align with site standards.
Stable form factor – Standard INFI 90 single‑width module that fits existing racks and pairs with the appropriate DO termination unit and cable.
Plants tend to deploy IMDSO14 where deterministic, binary control is essential. You’ll typically see it:
Power generation – turbine auxiliaries, breaker permissives, lube oil skid valves
Oil & gas / petrochem – shutdown solenoids, flare systems, pump start/stop
Pulp & paper – conveyor interlocks, steam header valve actuation
Metals & mining – crusher feeds, trip circuits, stacker/reclaimer beacons
Water & wastewater – blower control, chemical dosing solenoids, panel lamps
Drop‑in continuity – Keeps legacy INFI 90 loops intact, avoiding costly re‑engineering of wiring and logic databases.
Reliability under load – Solid‑state outputs and isolation design help reduce channel failures in electrically noisy cabinets.
Lifecycle practicality – Supports phased modernization strategies: hold the existing I/O while migrating controllers at your pace.
Diagnostics that matter – Fault/status visibility shortens troubleshooting, which typically cuts downtime during shift maintenance.
One thing I appreciate is how predictable commissioning tends to be. A maintenance lead at a combined‑cycle plant told us they swapped an IMDSO14 during a planned outage, validated outputs with the TU test points, and had pump control back in under an hour—no database edits required.
Installation & MaintenancePanel/cabinet – Install in a clean, ventilated enclosure meeting industrial cabinet standards; maintain airflow around modules.
Wiring – Route field power through the Digital Output Termination Unit; fuse each circuit per site rules; segregate high‑energy conductors from low‑level signals.
Grounding & noise – Bond shields at a single point; keep return paths short; use ferrules and labeled terminations for serviceability.
Safety – Isolate field power before servicing; observe ESD protection when handling the module; confirm outputs are de‑energized prior to disconnects.
Routine care – Periodically inspect terminal tightness, clean dust with dry air, and review controller diagnostics. Firmware/config updates are rarely needed on these modules, but verify versions during outages.
Certifications – IMDSO14 modules were produced for industrial markets and are typically CE‑marked; UL recognition may apply at the system assembly level. Early revisions may not be RoHS. Always confirm against the exact part revision.
Warranty & support – Warranty terms vary by source and module revision; many deployments work with a 12‑month coverage model. Technical support usually focuses on correct TU pairing, channel testing, and field power sizing.
Digital Output Termination Unit (TU) suitable for your voltage/current standard
I/O interconnect cable between IMDSO14 and TU
Field fusing or interposing relays (as required by load and site electrical codes)
Backplane/rack hardware for the INFI 90 I/O subsystem
