Help CenterVolvo Penta TAD1643VE-B Engine Assembly
Related Products
-
Volvo Penta TAD850VE Engine Assembly 160KW 2200 RPMNegotiableMOQ: 1 Piece -
Volvo Penta TAD1150VE Engine, 235 KW, 320 Hp, 2100 RPMNegotiableMOQ: 1 Piece
-
Volvo Penta TAD1151VE Engine, 265 kW 360 Hp 2100 RPMNegotiableMOQ: 1 Piece
-
Volvo Ship Engine Starting Relay 874743NegotiableMOQ: 1 Piece
-
Volvo Ship Oil Temperature Gauge 874905NegotiableMOQ: 1 Piece

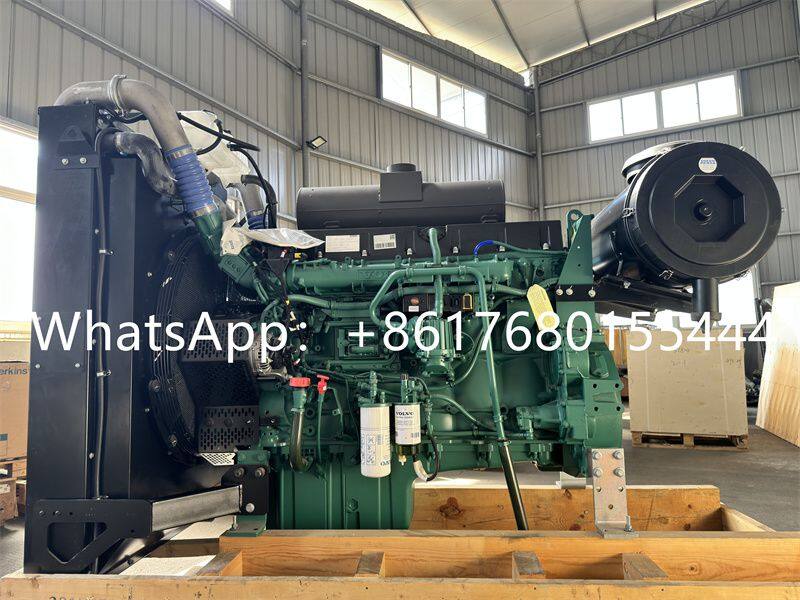

The Volvo Penta TAD1643VE - B engine assembly is a high - performance power unit designed for a variety of heavy - duty applications. Here is an introduction: ### Basic Information - **Manufacturer**: Volvo Penta. - **Cylinder Arrangement**: In - line six - cylinder. - **Displacement**: 16.12 liters. - **Bore and Stroke**: 144 mm in bore and 165 mm in stroke. - **Combustion Type**: Four - stroke. - **Aspiration**: Turbocharged with intercooler. ### Technical Features - **Turbocharging and Intercooling System**: It adopts a water - cooled turbo - charger, which makes the engine more dynamic and suitable for mobile applications. The air - to - air intercooler cools the compressed air, increasing its density and thus improving combustion efficiency and power output. - **Fuel Injection System**: Equipped with a high - tech fuel injection system, which contributes to efficient combustion and low fuel consumption. The advanced electronic control system precisely controls the fuel injection quantity and timing, ensuring a perfect balance between low emissions and high power. - **Electronic Management System**: Features an advanced engine control unit (ECU) that continuously monitors and optimizes engine performance, including fuel consumption, emissions, and power output. It has the same electrical interface as the latest Stage IV/Tier 4 Final engine, enabling ease of installation and integration with various equipment. - **Durability - enhancing Design**: The engine is equipped with piston cooling to maintain a controlled working temperature in cylinders and combustion chambers. It also has replaceable cylinder liners and valve seat/guides, which ensures maximum durability and a long service life. - **Balanced Operation**: The engine is well - balanced, producing smooth and vibration - free operation with a minimal noise level, which is beneficial for both the operator and the surrounding environment. ### Performance Parameters - **Power Output**: The rated power is 565 kW (758 bhp) at 1900 rpm. - **Torque**: It has high torque characteristics, which can provide strong power support at low engine speeds. ### Emission Standards The engine meets relevant emission standards, such as EU Stage IV or U.S. EPA Tier 4 Final standards, due to its advanced fuel injection and electronic control technologies, which reduce harmful emissions effectively. ### Applications The Volvo Penta TAD1643VE - B engine assembly is widely used in heavy - duty equipment, including marine propulsion systems, construction machinery, and power generation equipment. For example, it can be installed in large - scale ships, excavators, loaders, and diesel generators, providing reliable and powerful power support.
