Help CenterSHANTUI SD60 Bulldozer 118A-56-01000 118A-56G-11000 118A-91-01000 Ceiling
Related Products
-
SHANTUI SD60 Bulldozer 118A-59R-05000 118H-82-08100 118H-82-09100 146-56-17100 BracketNegotiableMOQ: 1 Piece -
SHANTUI SD60 Bulldozer 113K-53D-02100 Right Armrest Pad Set 113K-53D-03100 Left Armrest Pad SetNegotiableMOQ: 1 Piece
-
SHANTUI SD60 Bulldozer 113K-53D-05000 Seat (Deluxe Basic) 113K-56D-11100Bracket 114U-57-03000air Outlet CavityNegotiableMOQ: 1 Piece
-
SHANTUI SD60 Bulldozer 114U-58-05000 Evaporator Box 114U-58-06000 Condenser and Fan AssemblyNegotiableMOQ: 1 Piece
-
SHANTUI SD60 Bulldozer 115H-86-01000 Pilot Valve Group 117K-74-07000electronically Controlled Steering and Brake Valve 117K-74-07100NegotiableMOQ: 1 Piece

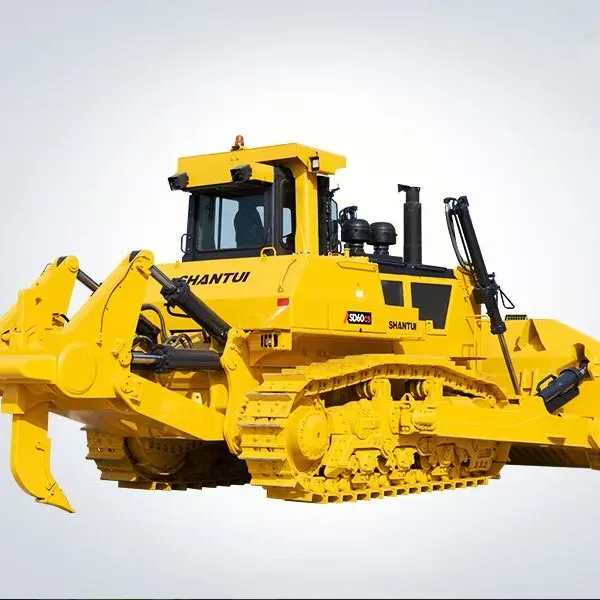

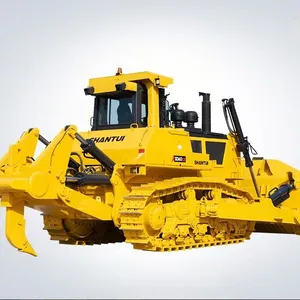

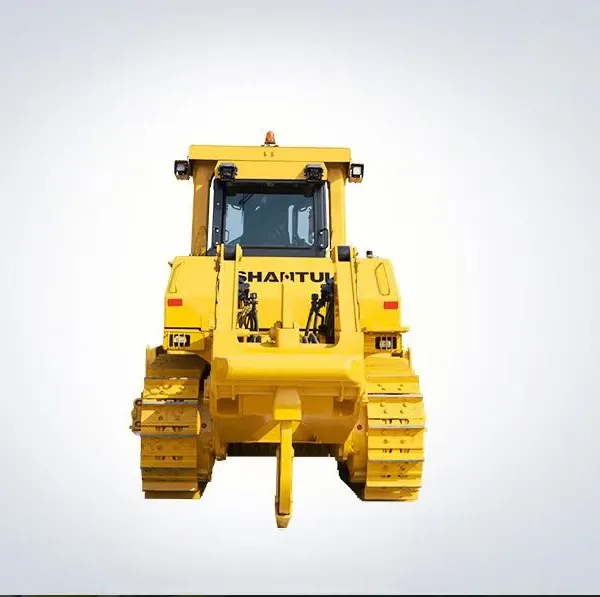

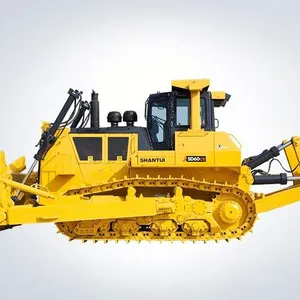

Shantui SD60 Bulldozer Specifications
- Basic Parameters: Overall dimensions (L×W×H) are 10390×4690×4370mm, with an operating weight of 70630kg and a ground pressure of 130.2kPa. The track center distance is 2500mm, track shoe width is 610/710mm, and track contact length is 3840mm. It has a fuel tank capacity of 1150L and a working hydraulic oil tank capacity of 164L.
- Power System: Equipped with a Cummins QSK19 electronic control engine, delivering a rated power of 562kW at 2100rpm. It features an advanced Modular Common Rail System (MCRS), meeting China National IV emission standards. Additionally, it adopts a Cyclone dual pre-filter air intake system to effectively prevent early engine failures.
- Operating Performance: Equipped with a high-pressure hydraulic system with a system pressure of 21MPa, ensuring excellent fine operation performance. The work equipment is controlled by a pilot single lever, and the travel is controlled by an electronic single lever, enabling the "manual-automatic integrated fingertip shifting" function.
- Work Equipment: Standardly equipped with an 18.9m³ semi-U blade, which has a large capacity and is constructed with a high-strength box-type structure and high-performance wear-resistant materials. The rear is fitted with a giant single-tooth ripper, featuring super strong penetration, suitable for rock stripping, with a ripping depth of up to 1435mm.
- Driving Environment: Adopts a high-strength seven-sided cab with a large space, wide field of view, and good airtightness. It is equipped with a high-power heating and cooling air conditioner, standard high-end luxury interior, and a luxury air-suspended heated seat, providing strong shock absorption and excellent comfort.
- Chassis System: Utilizes a K-type suspension design for track rollers, with a floating travel function that reduces rigid impact on the entire machine, increases the ground contact area under complex working conditions, and ensures strong road adaptability and good traction performance. Moreover, it adopts a temperature-controlled fan system that intelligently adjusts the fan speed to improve fuel economy.
