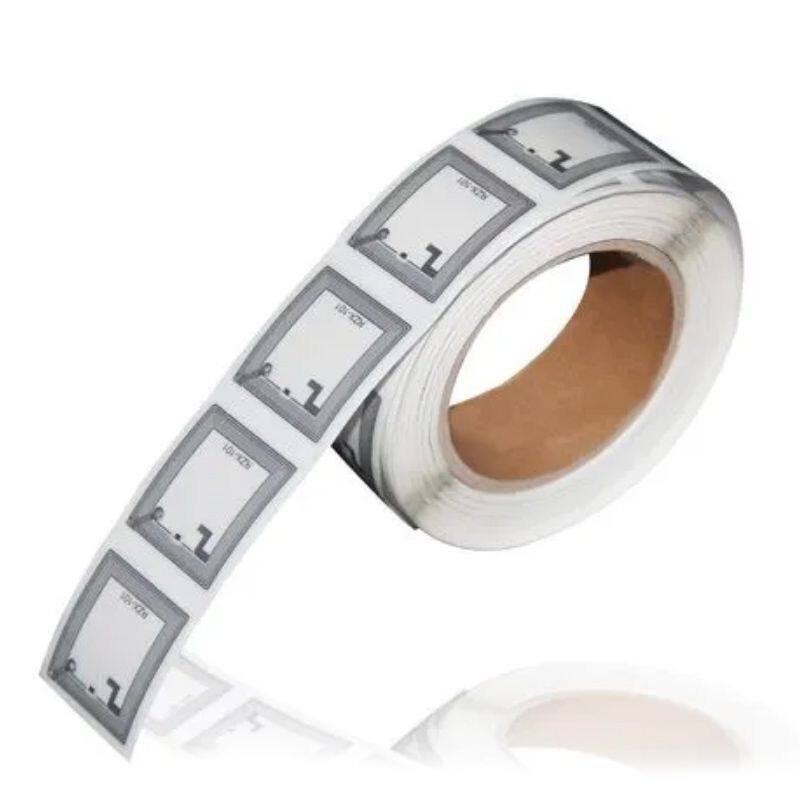

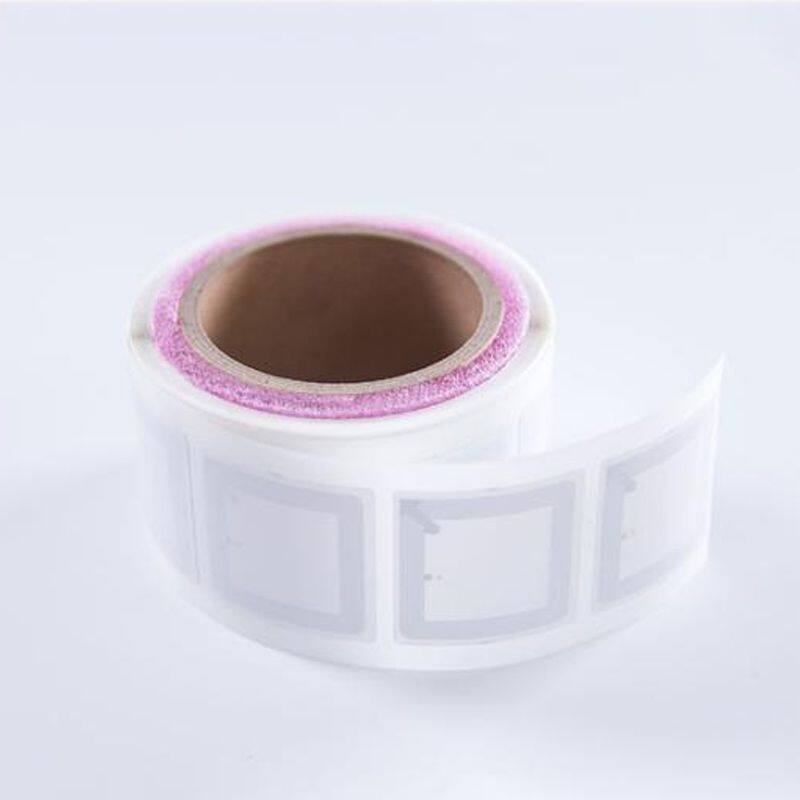

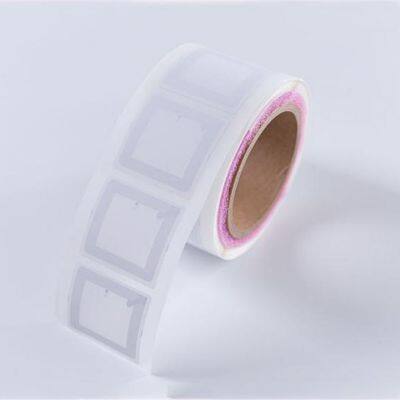

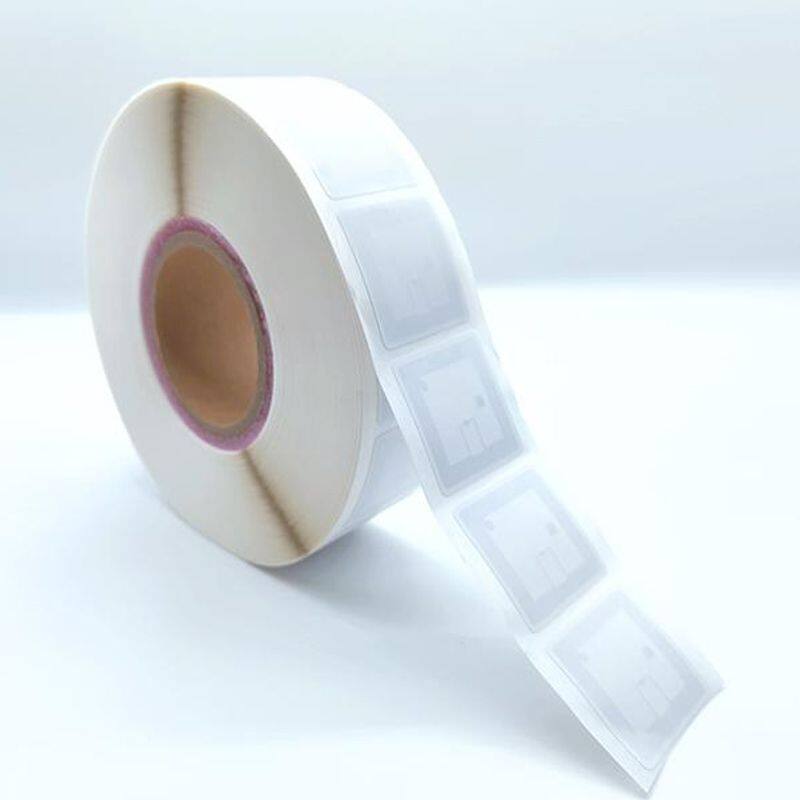

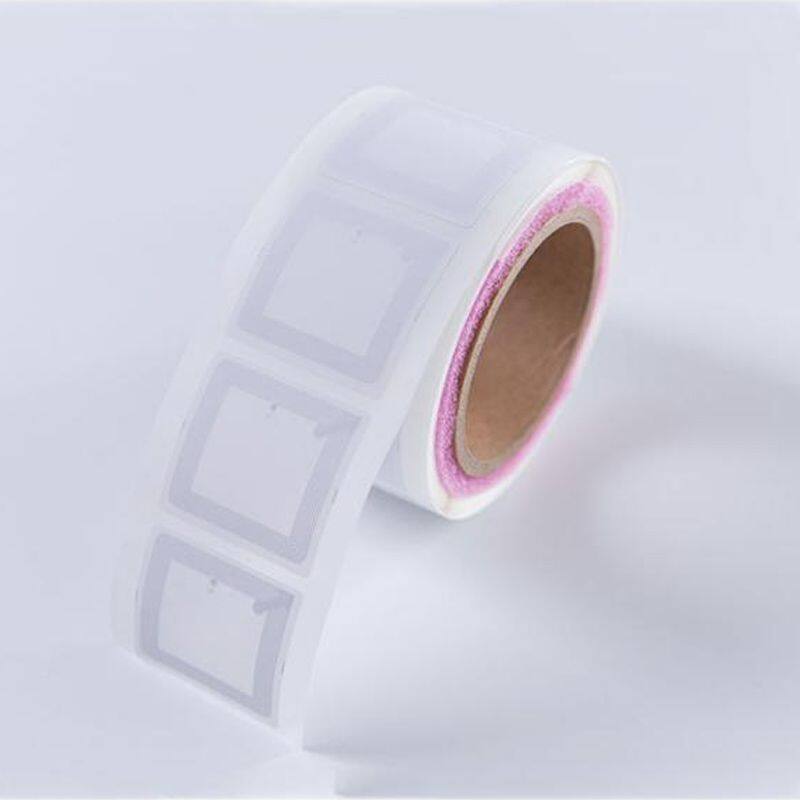

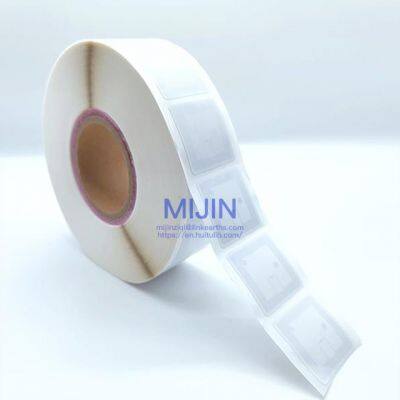

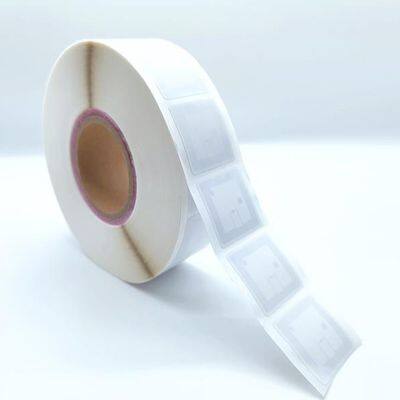

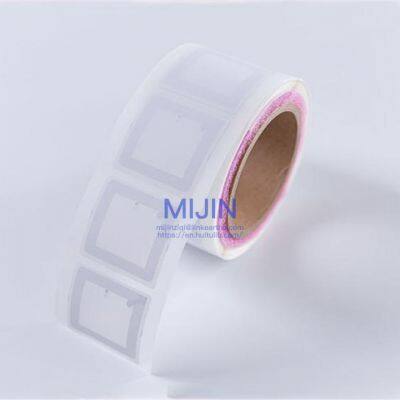

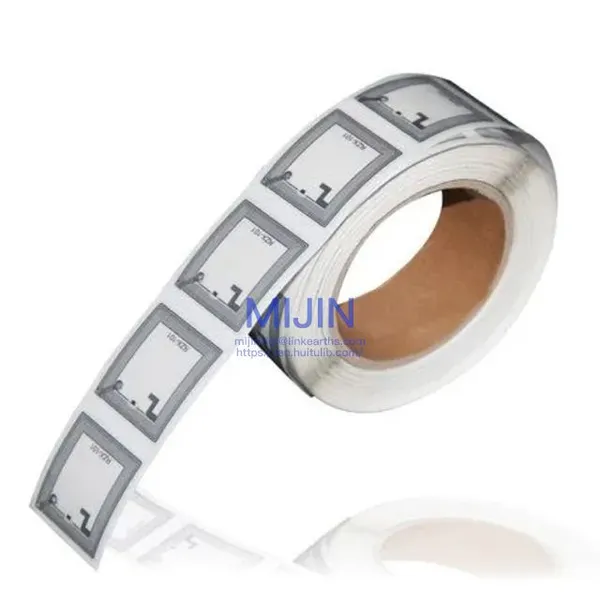

Smart Library HF book tags, electronic tags, library RFID book management

The book-specific RFID tag is a passive low-power integrated circuit product with an antenna, memory and control system. Basic information of books and media materials can be written into and read from its storage chip multiple times, which is used for tag identification of books and multimedia CD materials;

Operating frequency: 13.56MHz;

Supported protocols: ISO15693 and ISO18000-3 standards;

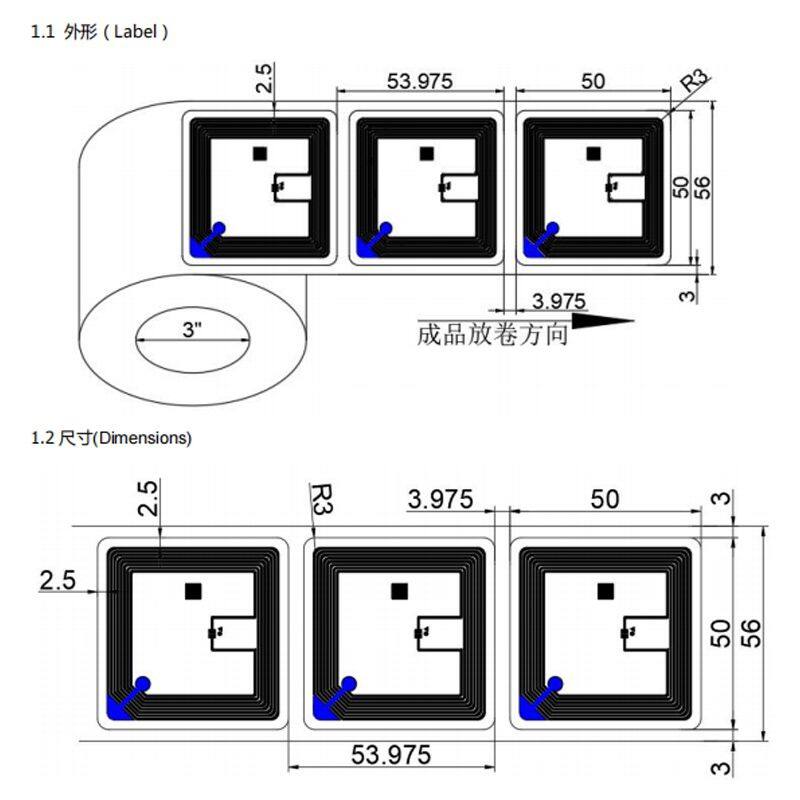

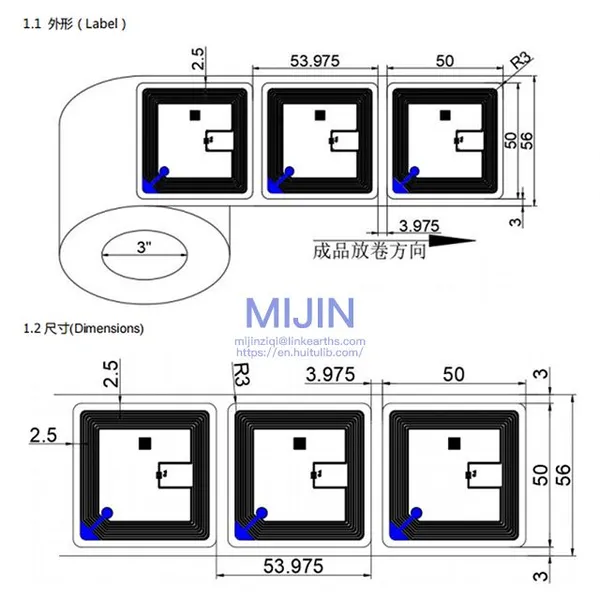

Product specification: 50mm*50mm;

Antenna specification: 45mm*45mm;

Memory capacity: ≥96 bits;

Effective service life: ≥10 years;

Effective usage times: ≥100,000 times;

The tag is a passive tag without the need for a battery;

The tag has a memory, and the data stored in it can be read and written repeatedly;

The tag can be read and written in a non-contact manner, which speeds up the processing procedures for resource circulation;

The tag has certain anti-collision performance, which can ensure the simultaneous and reliable identification of multiple tags;

The tag has high security, with an unrewritable unique serial number (UID) for identification and encryption to prevent the information stored in it from being read or rewritten at will;

Users can customize data formats and contents, with good data scalability;

The antenna of the tag is an aluminum or copper antenna, manufactured by etching process;

The tag adopts EAS or AFI bit as the security marking method for anti-theft;

The inherent frequency error rate of the tag is less than or equal to ±300K Hz;

When reading data from a single data block of the tag, the time recorded from the start of querying the tested tag to reading the single data block of the tag shall be ≤0.1s;

The tag has single-sided adhesiveness and must use neutral adhesive, which will not damage the pasting surface of books and other media, ensuring that it will not come unglued or fall off within the tag's warranty period (10 years).
