ATOS E-ME-AC-05F

Contact Information

ATOS E-ME-AC-05F Elctronic Driver

Manufacturer: ATOS

Type: Elctronic Driver

Product origin: USA

Delivery Time: Based on situation

Quality: 100% New Original

Minimum Order Quantity: 1PC

Product Description and Technical Details

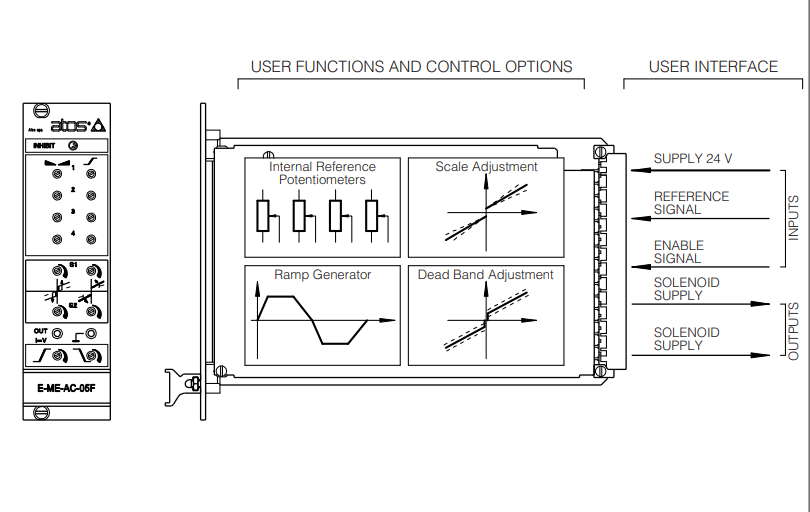

Analog drivers control the current to the sole-noid of Atos proportional valves without pressure or position transducer, regulating the spool position, the flow or the pressure

according to the electronic reference signal.Reference signal variation range (Scale adjust): ±10 VMAX, ±2.5 VMIN

Input signal impedance: Voltage signal Ri > 50 kΩ – (/l option Ri = 316 Ω)

Potentiometer supply: +5 V / 50 mA at contact 10c, –5 V / 20 mA at contact 14c

Ramp time: 5 sec max (0 → 100 % of reference signal)

Enabling signal: V = 5 → 24 VDC on contact 18a with LED indicator on panel; Ri 15 kΩ (max 5 mA)

Electrical wiring: Coil 2 × 1 mm² to 20 m; 2 × 1.5 mm² shielded to 40 m

Card format: Europe 100 × 160 mm (plug-in unit DIN 41494)

Card connector: Male DIN 41612 /D

Connector elements available: Type E-K-32M frame snap connector (see table G800) – to be ordered separately

Operating temperature: 0 … +50 °C (storage –20 … +70 °C)

Front panel dimensions: 128.4 × 35.3 mm

Mass: 540 g

Features: Rapid solenoid excitation and switching off; outputs to solenoids protected against accidental short circuits
