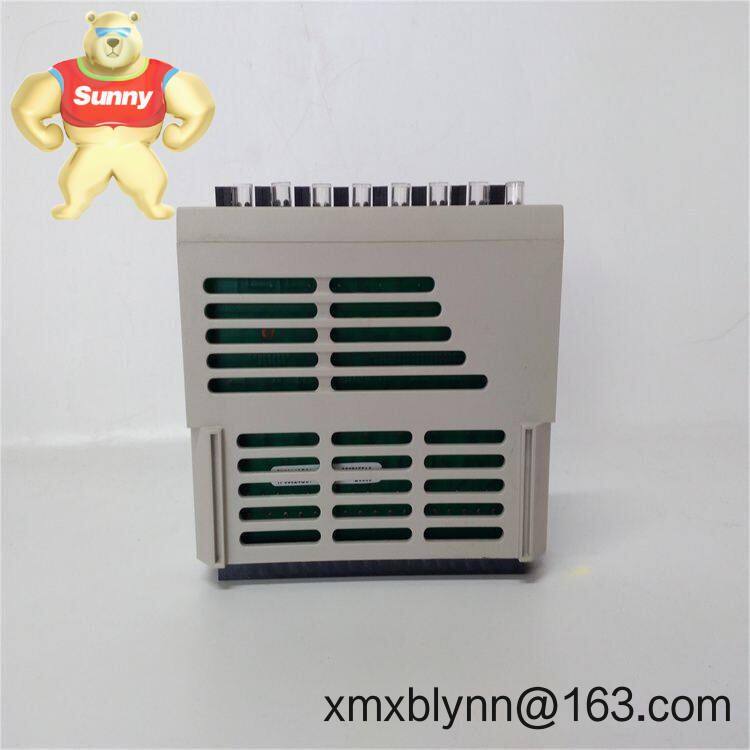

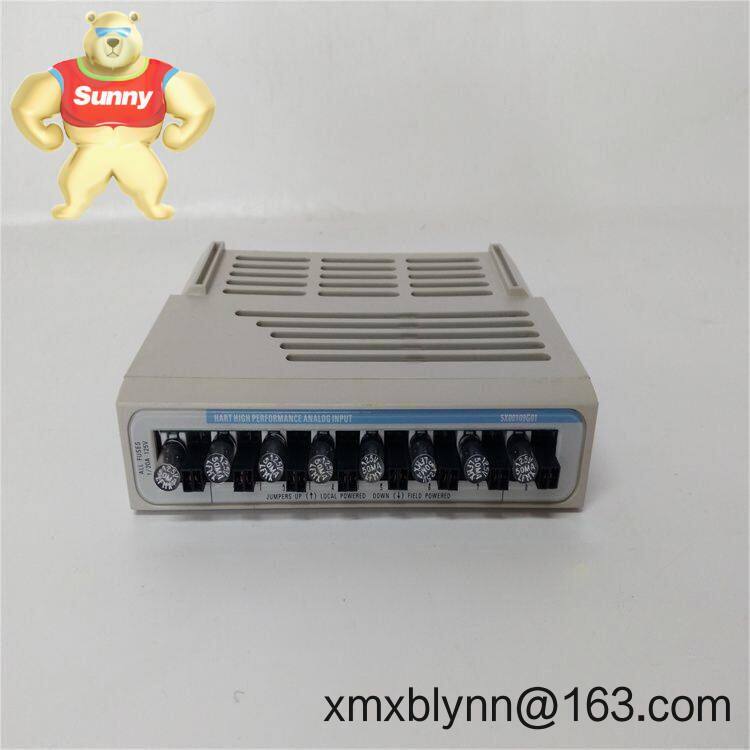

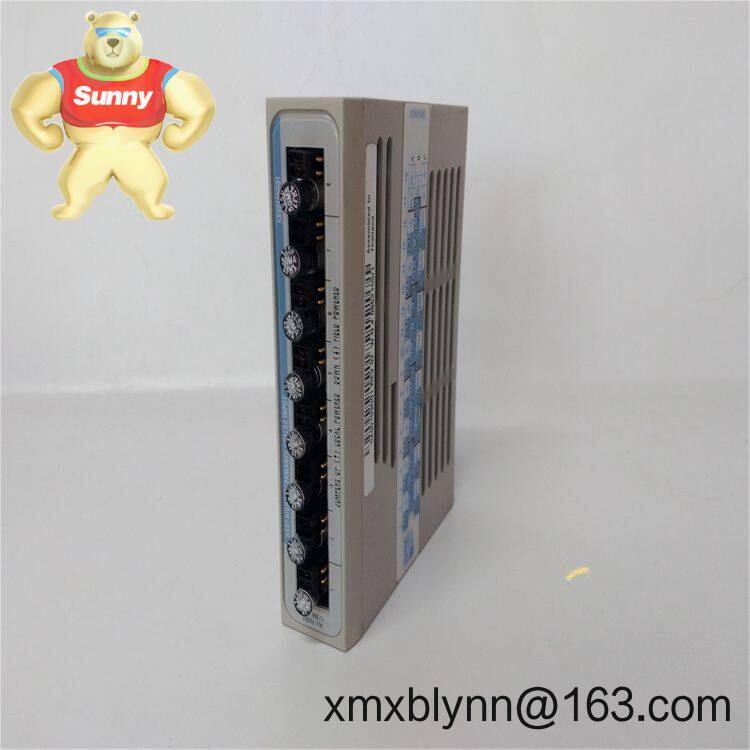

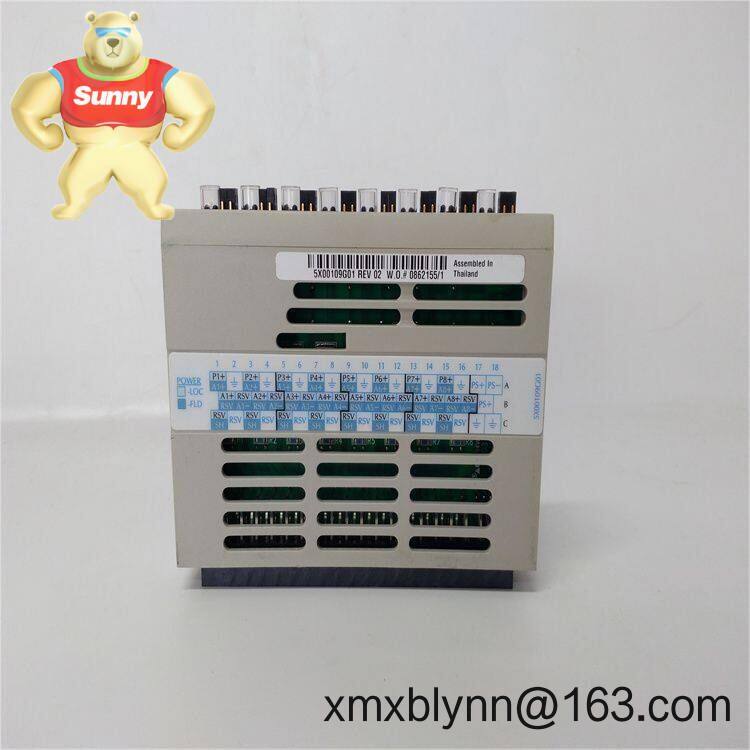

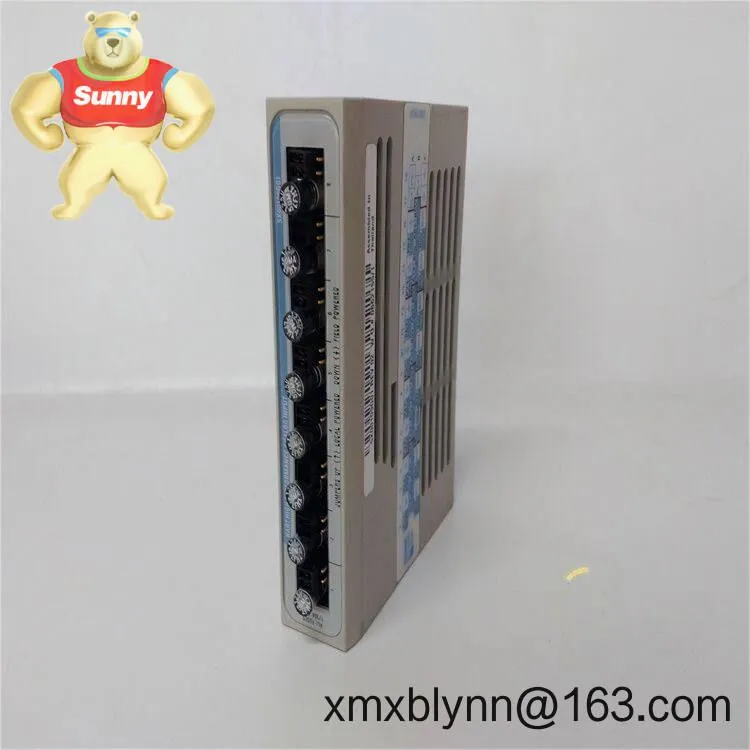

EMERSON 5X00109G01 HART Analog Input Module – Smart 4–20 mA Acquisition With HART Diagnostics

The EMERSON 5X00109G01 is a HART-capable analog input module designed to bring smart transmitter data directly into your control system while maintaining reliable 4–20 mA measurement. It typically fits EMERSON Ovation I/O racks, where it consolidates process variables and device diagnostics on a single card. From my experience, plants use it to cut maintenance time and surface instrument health without adding gateway hardware.

• HART pass-through and secondary variables – Reads primary PV over 4–20 mA and pulls HART data (device status, tag, range, PV/SV/TV/QV) when enabled.

• Multi-channel AI density – Designed for multiple channels per card, which helps reduce cabinet footprint in most cases.

• Isolated, noise‑resilient measurement path – Typically provides channel or group isolation to cut common-mode noise and ground loops in mixed-signal panels.

• 2‑wire and 4‑wire transmitter support – Works with loop-powered field devices and externally powered instruments commonly used for pressure, flow, and temperature.

• Rapid device diagnostics – HART alerts (e.g., sensor drift, configuration mismatch) can be surfaced to the controller or asset management software.

• Backplane integration – Communicates via the Ovation backplane, so no extra gateways are usually required for HART data collection.

• Hot-swap friendly chassis design – In many installations, the card can be replaced with minimal process interruption when the rack supports it.

•


• Power generation units (boiler feedwater, condenser vacuum, turbine auxiliary systems)

• Oil & gas processing (wellhead pressures, separators, flare monitoring with device diagnostics)

• Chemical and petrochemical plants (reactor pressure/temperature loops, utilities)

• Water and wastewater treatment (filter beds, clarifiers, pumping stations with HART-enabled transmitters)

• Pulp & paper and metals (stock consistency, rolling mill hydraulics, utility balance)

A maintenance supervisor told us their team “started catching plugged impulse lines early” once HART status came through the historian—seems small, but it cut nuisance trips and weekend callouts.

• Lifecycle efficiency – Consolidates measurement and device diagnostics, typically reducing separate HART gateways and software add-ons.

• Compatibility – Designed for EMERSON Ovation ecosystems; plays well with standard HART field devices from multiple vendors.

• Lower cabinet footprint – Multi-channel density and shared backplane power help keep panel sizes down.

• Maintainability – Hot-swap friendly architecture (where supported) shortens MTTR and simplifies spares strategy.

• Total cost control – Fewer standalone multiplexers, less marshalling complexity, and simpler wiring in many cases.

• Cabinet & enclosure – Mount in a compatible Ovation rack within a clean, ventilated enclosure; keep ambient typically within 0–60 °C. Provide airflow to manage heat from adjacent cards.

• Wiring practices – Use shielded twisted pair for 4–20 mA; ground shields at one end to avoid loops. Maintain HART impedance requirements; avoid heavy filtering that can attenuate the HART signal.

• Loop power – Verify transmitter loop power compliance and any intrinsic safety barriers or isolators where required.

• Commissioning – Enable HART per channel in the controller/AMS, poll for device tags, and validate PV scaling. A quick loop check with a communicator typically speeds validation.

• Maintenance – Periodic inspection for loose terminals, corrosion, and dust. Back up configuration, check for firmware updates approved for your Ovation release, and review HART alerts for predictive maintenance.

• Spares & accessories – Keep one spare card per rack row (rule of thumb). Common companions include Ovation terminal bases, shielded I/O cable sets, and a HART communicator for field work.

•


• Manufacturing quality aligned with EMERSON’s Ovation platform standards

• Typically CE compliant; UL/cUL availability in many regions (check site-specific BOM)

• RoHS conformance may depend on production date and region; verify per lot if required

• Standard manufacturer limited warranty, commonly 12 months from shipment

If you’re consolidating older analog input cards or planning a transmitter refresh, the 5X00109G01 is a practical drop-in path to HART visibility without reworking your architecture.
