Home > Electrical & Electronics > Relay & Contactor > Relay > DS200DCFBG2BNC DC2000 DC Feedback Board
US$ 2778.00
≥1 Pallet
Key Specifications
Get Latest Price
Place of Origin:
America
Communication Interface:
Modubus
Product name:
DC2000 DC Feedback Board
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
D0820 DIGITAL OUTPUT RELAY NORMAL OPEN 3BSE008514R0001,POS.A2541 16*16*8cm 0.3kgUS$ 5720.00MOQ: 1 Pallet -
EXTENDED MODULE TERMINATION UNIT (MTU) 3BSE013234R0001,TU830V1, 2*16CH 16*16*8cm 0.4kgUS$ 4105.00MOQ: 1 Pallet
-
DIGITAL INPUT 24V D.C. 2X8 CH. DI810 P/N:3BSE008508R0001 16*16*8cm 0.4kgUS$ 4059.00MOQ: 1 Pallet
-
HIGH VOLTAGE DIVIDER BOARD (HVD) 3BHE021083R0101, XV C770 BE101 32x23x3.5cm 0.34kgUS$ 4310.00MOQ: 1 Pallet
-
AC/DC CONVERTER 3BHL000986P7002,LWN 2660-6,24V,250W 16*16*16cm 1.6kgUS$ 4199.00MOQ: 1 Pallet
Place of Origin
America
Communication Interface
Modubus
Product name
DC2000 DC Feedback Board
Model Number
DS200DCFBG2BNC
Condition
NEW
Warranty
One Year
Package
Original Packaging
Product Description
nation | china |
Product Name | DS200DCFBG2BNC |
Material | DC2000 DC Feedback Board |
warranty | One year |
Stock | In Stock |
Package | Original |

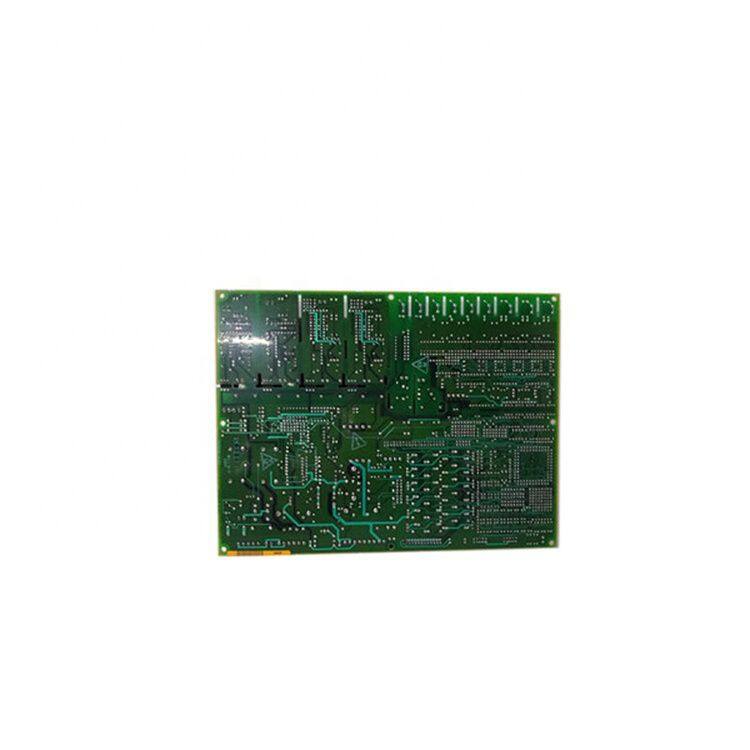

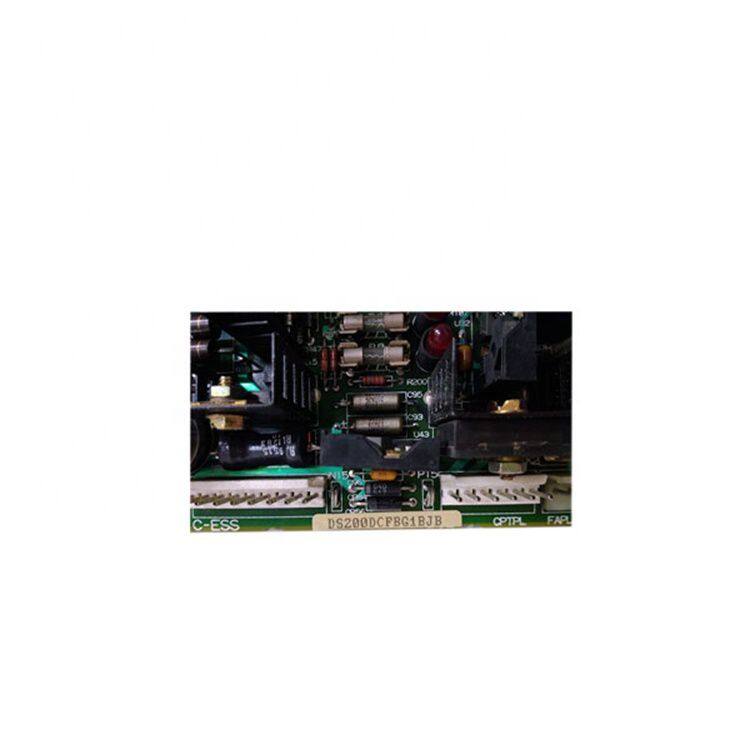

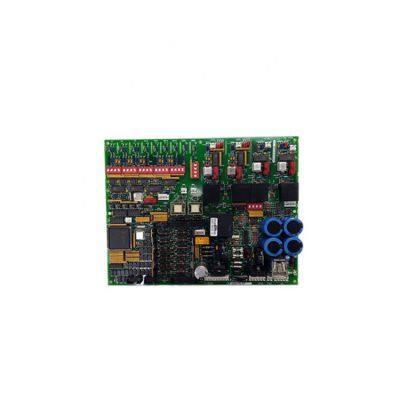

DS200DCFBG2BNC DC2000 DC Feedback Board
About the DS200DCFBG2BNC
* The DS200DCFBG2BNC is a Power Supply Board designed for GE's Mark V system.
* The Mark V is a version of GE's Speedtronic gas and steam turbine management system, which has seen continuous development
since the late 1960s.
* The Mark V series is now considered an obsolete legacy GE product series due to its manufacturing discontinuation.
* The DS200DCFBG2BNC is a revised version; the original device for this functionality was the DS200DCFBG2 parent Power Supply
Board, which lacks the three significant product revisions found in the DS200DCFBG2BNC.
----------------------------------------------------------------------------------------------------------------------------------
Hardware Features and Specifications
* Connectors: Sends and receives signals via eighteen plug connectors and nine stab connectors. * Stab Connectors: Located in the upper left corner, labeled V1-V3, P1A, P2A, VM1A, VM1B, VB2A, and VM2BA.
* Plug Connectors: Located throughout the board, ranging from 2-pin to multi-pin.
* Functional Product Number Insights (due to limited manual availability): * DS200 series tag: Indicates normal Mark V Series assembly and domestic original manufacture.
* DCFB: Functional product abbreviation.
* Normal PCB coating style.
* Group 2 Mark V Series product grouping.
* B-rated: Primary functional revision.
* N-rated: Secondary functional revision.
* C-rated: Artwork configuration revision.
* Onboard Components: * Seven DIP switches (for selecting AC line voltage and voltage applied to DC bridge/motor voltage feedback VCO circuits).
* Five TP test points.
* Twelve jumpers.
* Three fuses for power supply protection (indicators will light if blown, including two LED lights and one neon indicator).
* Various components: seven transformers, oscillating chips, a relay, over fifty resistor network arrays,
heat sinks, integrated circuits, capacitors, and resistors.
* Resistors include CCR (carbon composite) and metal film materials.
Details Images
