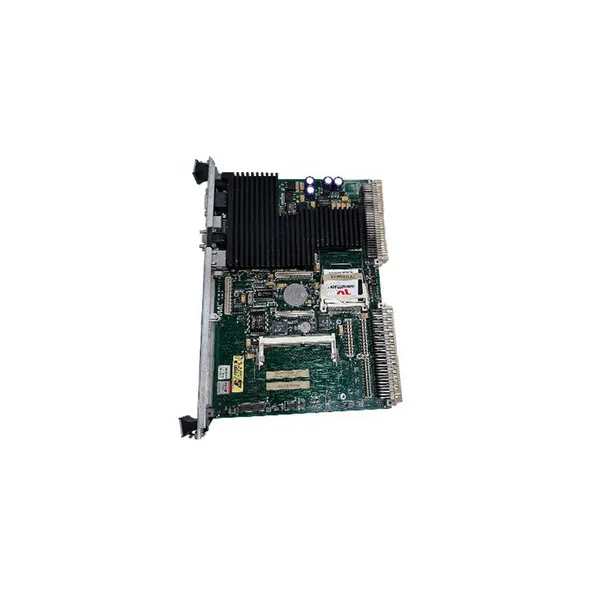

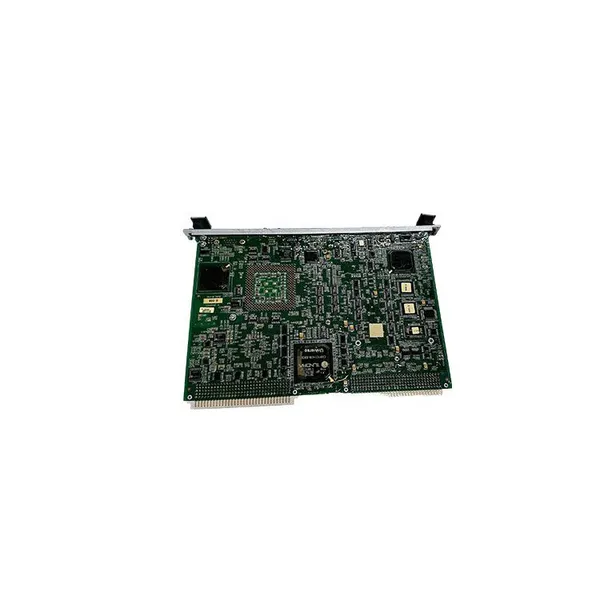

IS200TCASH1ACB The TCAS Terminal Board Provides Six Pairs of LVDT Excitation Signals
US$ 2354.00
≥1 Pallet
Key Specifications
Get Latest Price
I/O Number:
IS200TCASH1ACB
Memory:
Eprom
Operating Voltage:
220 V
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IS200TBA1H1CDC Bus Card Motion ControllerUS$ 2326.00MOQ: 1 Pallet -
IS200SRTDH2ABB RTD Card/Total 36 TerminalsUS$ 2566.00MOQ: 1 Pallet
-
3BHE039724R0C3D PPD513AOC-100440 Long-term Operating Transients That Cycle to SecondsUS$ 2610.00MOQ: 1 Pallet
-
PNI800A A Device Used to Control Output Voltage or Current Through an AngleUS$ 2369.00MOQ: 1 Pallet
-
TB840A 3BSE037760R1 A Comprehensive Distributed Modular Process I/O SystemUS$ 2388.00MOQ: 1 Pallet
I/O Number
IS200TCASH1ACB
Memory
Eprom
Operating Voltage
220 V
Place of Origin
America
Communication Interface
Modubus
Product name
The TCAS terminal board provides six pairs of LVDT excitation signals
Model Number
IS200TCASH1ACB
Condition
NEW
Warranty
One Year
Package
Original Packaging
Product Description
nation |
china |
Product Name |
IS200TCASH1ACB |
Material |
The TCAS terminal board provides six pairs of LVDT excitation signals |
warranty |
One year |
Stock |
In Stock |
Package |
Original |
Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!
Can transport to the world.
（Rule out special circumstances can't transport area！）
If you need, please contact customer service.
【The contact information of the service】
① 24 hours to receive mail reply (12 hours);
② EBAY customer service chat messages, reply within 3 hours.
③ Shipped to countries outside of Asia, please contact the seller.（Part of the international area, free shipping）
【Product properties】IS200TCASH1ACB
② Inventory quantity: 2
③ The colour：NEW
④ Freight: Different areas of freight, depending on the local freight forwarder shall prevail.
⑤ Whether containing tariffs: Do not include any taxes and fees
⑥ Packing: Use the seller safety packaging
【Friendship tip】
Ⅰ、The mode of transportation and freight:
① , Shipping company according to different regions. (If you need to specify the shipping company, please contact the seller)
② , freight, transport price (not including the national customs charges and other fees), according to the actual seller to provide shipping price shall prevail.
③ , the territory of China (including Hong Kong, Macao and Taiwan), in most of the free shipping. Please contact the staff.
Ⅱ、Payment method:
Buyer please select a payment according to the actual situation, if in doubt contact the seller!!!!!
Ⅲ、Product quality and after-sales service:
1, Consulting the seller's product quality, buy again. If you have any questions, please contact the seller.
2, During the after-sales service, according to the circumstances. If you want to delay the after-sales service, or else the seller after-sale policy shall prevail. Please contact the seller.
IS200TCASH1ACB The TCAS terminal board provides six pairs of LVDT excitation signals
The TCAS terminal board provides six pairs of LVDT excitation signals
Product number: IS200TCASH1ACB
Manufacturer: General Electric
Series: Mark VIe
Product type: Terminal board
Input quantity: 25 Output
Quantity: 4-20 mA
Analog output current: 0-20 mA
Excitation voltage: 24 V DC
Maximum lead resistance: 15Ω
Analog output current: 0-20 mA
Operating temperature: 30 to 50 °C
Size: 33.02cm high x17.8cm
Features:
The TCAS terminal board provides six pairs of LVDT excitation signals: LVDTEXH1_R/LVDTEXL1_R to LVDTEXH6_R/LVDTEXL6_R. These excitation outputs are connected to the primary side of the LVDT position sensor.
The primary side signal is 3.2 kHz sine wave excitation with a amplitude of 7.07 V RMS. The LVDT secondary side signal amplitude is proportional to the position change in the valve. The LVDT secondary side is connected to one of 12 TCAT terminal board LVDT input signal pairs: LVDT1H/LVDT1L to LVDT12H/LVDT12L.
The TCAT terminal board is used to fan LVDT signal pairs to TMR PCAA groups: PCAA (R), PCAA (S), and PCAA (T) via wiring. The BCAA acquisition board provides signal conditioning, converting the RMS voltage on the secondary side of the LVDT into A DC equivalent signal read by the processor via an analog-to-digital (A/D) converter.
PCAA Module Overview: The Core Analog (PCAA) module serves as a central hub for processing analog signals that are critical to gas turbine operation. It supports a wide range of input and output functions, including thermocouple input, 4-20 mA current loop I/O, seismic input, linear Variable differential transformer (LVDT) excitation and input, pulse rate input, and servo coil output.
Versatility of system configuration: The PCAA module has versatility in system configuration and is suitable for simplex, duplex and triple module redundancy (TMR) systems. This flexibility allows seamless integration into various control system architectures, meeting different operational requirements and ensuring compatibility with different system configurations.
TCAT Terminal board: The Core Analog Terminal (TCAT) board acts as the interface between the PCAA module and external sensors and actuators. It provides the necessary connectors and terminals for connecting thermocouple inputs, current loop I/O devices, seismic sensors, LVDTS, pulse rate sensors, and servo coil actuators to facilitate seamless signal transmission and interaction within the control system.
Similarly, the core Analog Shielding (TCAS) terminal board complements the board by providing additional connection options and signal routing capabilities. It ensures efficient signal distribution and management within the control system, improving overall system performance and reliability
