Industrial Heavy Duty Storage Racking Customized Warehouse Steel Shelf Pallet Rack

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Usage	Industrial	Height	0-5m
Closed	Open	Serviceability	Common Use
Development	New Type	Weight	Other, 2ton per layer
Trademark	TS	Origin	China

Product Description

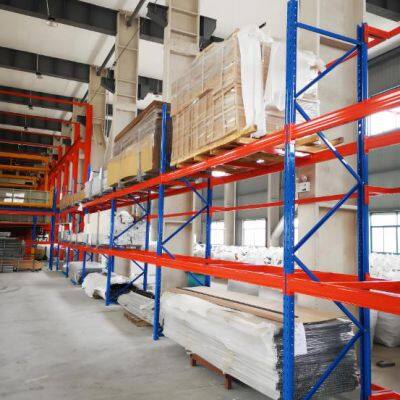

heavy duty pallet rack shelf

Industrial Heavy Duty Storage Racking Customized Warehouse Steel Shelf Pallet Rack

Light shelf is a very economical, practical and convenient warehouse shelf, because of its light load, it is often called light shelf. The shelf is composed of three components: columns, beams and laminates. The lightweight shelf as a whole adopts screw free combined design, easy to install and disassemble. Suitable for storing some light small goods, is a laminated shelf.
It is characterized by a full-assembly structure, free combination, installation, disassembly convenient and flexible, shelf material section optimization, a variety of pipe selection, improve the bearing capacity, the laminates have wood and steel plate to choose from, the column height is provided with a 50mm adjustment hole distance, can be adjusted according to the height of the goods between the layers, surface treatment using polishing, surface rust, oil removal, electrostatic powder spray treatment, It can be sprayed according to customer's specified color, with beautiful color, not easy to oxidize, easy to clean and other advantages, less capital investment, widely used in factories, shopping malls and other warehousing needs.

Brand	TS
Color	customizable
Closure	open
Dimension	customizable
Load-Bearing	customizable

Structure

Rack

Type

Multi-Level Racking

Mobility

Adjustable

Height

0-5m

Weight

150-500kg

Closed

Open

Development

Conventional

Serviceability

Common Use

Size

Customized

Color

Customized

Shelves

1-6 Layers

Loading Capacity

100-500kg

Packing

Bubble Film and Box

Trademark

iBeehive

Origin

Liaoning

HS Code

73269090

Production Capacity

8000 PCS /Month

Product Description

Multi-Layer Warehouse Shelf

We provide one-stop warehouse storage services:

* Design and manufacture of steel structure warehouse

* Free Store Layout Design * Customizable warehouse shelves

* Free warehouse rack installation instruction manual

* 15-20 days on-time delivery

* 30% advance payment, T/T

* 5 years warranty

Product Name	Warehouse Storage Stacking Racks & Shelves
Material	Q235B
Color	Orange, Grey, Blue, Customized
Shelf Size	Support Customization
Number of Layers	Customized: 2-6 Layers
Surface	Electrostatic Spray Surface, odorless
Feature	Anti-rust, Corrosion-protection
Use Area	Warehouse, Factory, Storage Place
Guarantee period	5 Years Warranty

	Product Type	Light Duty Warehouse Shelf
	Load Capacity	100 KG/Layer
	Color	White / Bule / Red, or Customized
	Upright Size	50 * 25 * 0.5 mm
	Beam Size	50 * 30 * 0.5 mm
	Panel Thickness	0.24 mm
	*Size(L W * H )mm**	1200 * 400 * 2000 1200 * 500 * 2000 1500 * 400 * 2000 1500 * 500 * 2000

	Product Type	Medium Duty Warehouse Shelf
	Load Capacity	200 KG/Layer
	Color	White / Bule / Red,or Customized
	Upright Size	70 * 35 * 0.6 mm
	Beam Size	60 * 40 * 0.6 mm
	Panel Thickness	0.3 mm
	*Size(L W * H )mm**	L:1070 / 1200 / 1500 / 2000 W:400 / 500 / 600 H:2000 / 2500 / 3000

	Product Type	Heavy Duty Warehouse Shelf
	Load Capacity	300 / 500 KG/Layer
	Color	White / Bule / Red
	Upright Size	75 * 35 * 0.9 mm 75 * 35 * 1.1 mm

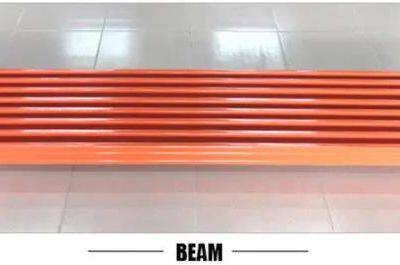

	Beam Size	60 * 40 * 0.9 mm 80 * 40 * 1.1 mm
	Panel Thickness	0.4 mm 0.5 mm
	*Size(L W * H )mm**	2000 * 600 * 2000

Main and Auxiliary Shelf Connection
The main shelf has two uprights, and the main shelf can be used alone. The auxiliary shelf is connected to the main shelf column and can be extended infinitely. Save the cost of a column and improve space utilization.

we can manufacture according to your requirement. so welcome your enquiry.
