8200-1300 Integrated Graphical Front Panel HMI That Is Designed to Control Single or Dual (split Range) Actuator Steam Turbines
US$ 12676.00
≥1 Pallet
Key Specifications
Get Latest Price
I/O Number:
8200-1300
Place of Origin:
America
Communication Interface:
Modubus
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0-60007-2 Drive Power Supply Module Used in High-power SA3000 Modules With Distributed Power SystemsUS$ 915.00MOQ: 1 Pallet -
0-60021-4 PMI Processor Automate PLC FaceplateUS$ 1480.00MOQ: 1 Pallet
-
PM865 3BSE031151R1 Processor Unit HI Controllers - AC 800M ControllersUS$ 7746.00MOQ: 1 Pallet
-
REG670 1MRK002826-AC Release of Relion 670 Series Version 2.2 REG670 Generator Protection Relay Commissioning GuideUS$ 7746.00MOQ: 1 Pallet
-
2198-D020-ERS3 Kinetix 5700 Dual-Axis Module Module Has a Continuous Output Power of 5.5 kWUS$ 3100.00MOQ: 1 Pallet
I/O Number
8200-1300
Place of Origin
America
Communication Interface
Modubus
Product name
integrated graphical front panel HMI
Model Number
8200-1300
Condition
NEW
Warranty
One Year
Package
Original Packaging
Product Description
nation | china |
Product Name | 8200-1300 |
Material | integrated graphical front panel HMI that is designed to control single or dual (split range) actuator steam turbines |
warranty | One year |
Stock | In Stock |
Package | Original |

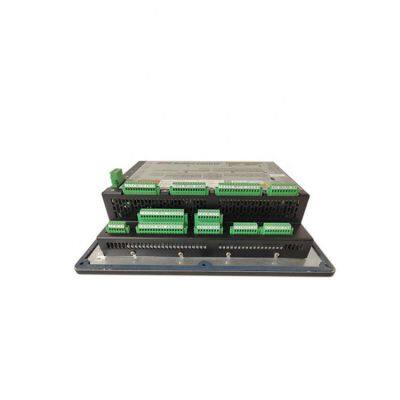

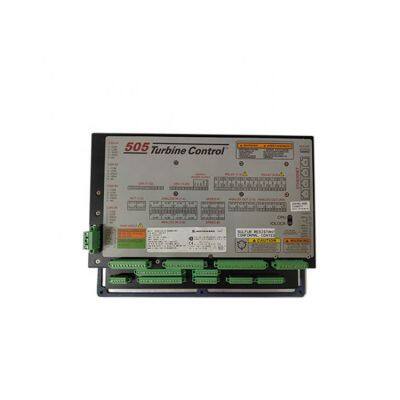

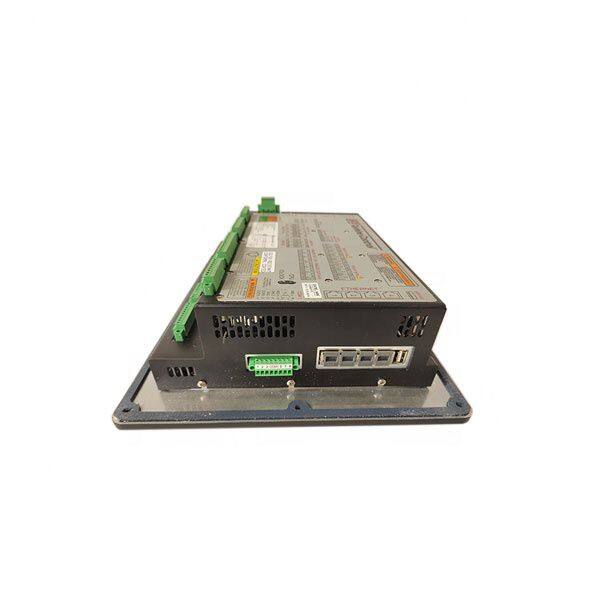

8200-1300 integrated graphical front panel HMI that is designed to control single or dual (split range) actuator steam turbines
The 8200-1300 from Woodward offers digital control for steam turbines. It is one of several digital governors available in the 505
turbine control series. This unit uses LVDC (18-32 VDC) power with standard compliance.
This unit can be used in non-hazardous locations. It is also suitable for Class I, Div. 2, Groups A/B/C/D locations. This unit is
typically installed with stranded copper field-wiring rated at least 75 degrees celsius.
The 8200-1300 can control single or dual split range actuator steam turbines. It can be configured as part of a plant’s DCS
(distributed control system) or it can be used as a stand-alone unit. It is designed with five PID controllers, including a

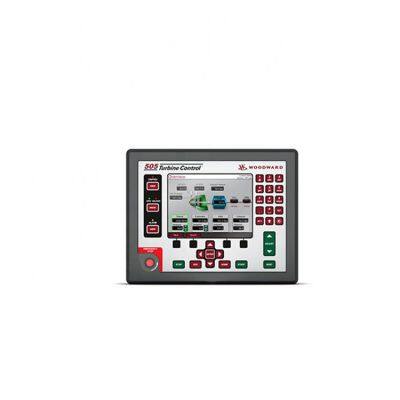

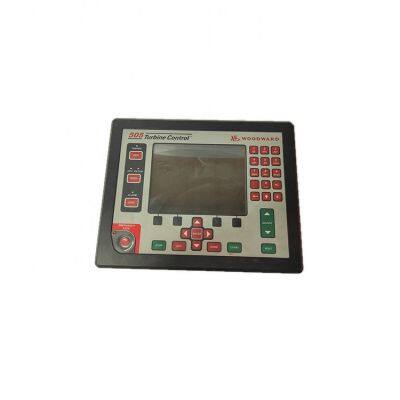

speed/load PID controller, a cascade PID controller, and AUX1 and AUX2 PID controllers. The unit offers an operator control panel
with a graphical control panel display and keypad included. This panel includes an emergency stop button, start, stop, esc, and
home buttons, a number keypad, and toggle up/down buttons as well as an enter key with up/down and left/right buttons. The panel
also has four LEDs on its left side, including CPU health, IO Lock, Summary Alarm, and Summary Trip.
turbine control series. This unit uses LVDC (18-32 VDC) power with standard compliance.
This unit can be used in non-hazardous locations. It is also suitable for Class I, Div. 2, Groups A/B/C/D locations. This unit is
typically installed with stranded copper field-wiring rated at least 75 degrees celsius.
The 8200-1300 can control single or dual split range actuator steam turbines. It can be configured as part of a plant’s DCS
(distributed control system) or it can be used as a stand-alone unit. It is designed with five PID controllers, including a
speed/load PID controller, a cascade PID controller, and AUX1 and AUX2 PID controllers. The unit offers an operator control panel
with a graphical control panel display and keypad included. This panel includes an emergency stop button, start, stop, esc, and
home buttons, a number keypad, and toggle up/down buttons as well as an enter key with up/down and left/right buttons. The panel
also has four LEDs on its left side, including CPU health, IO Lock, Summary Alarm, and Summary Trip.
