Description AB Glue Two Parts Silicone Rubber Thermal Conductivity Effectively Inductive Sensor
There are many kinds of encapsulating silicone rubber. Different kinds of potting silicone have great differences in temperature resistance, waterproofing, insulation, optical properties, adhesion properties of different materials and softness and hardness. Inibaba produces and provides rtv2 silicone rubber for electronic potting, which is consist of two parts, part A and B. Which will vulcanize in room temperature or heated temperature.
Another type is white, grey, black and adjustable silicone rubber with hardness 20 shore A, 25 shore A,30 shore A,35 shore A,40 shore A, 45 shore A, 50 shore A, 55 shore A, 60 shore A, the mix ratio is 1 by 1.
Application and Advantages

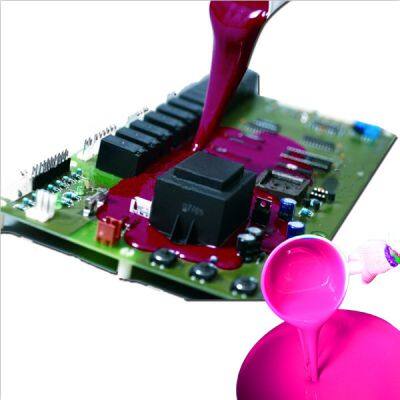

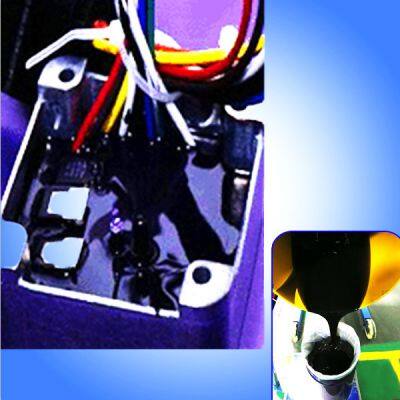

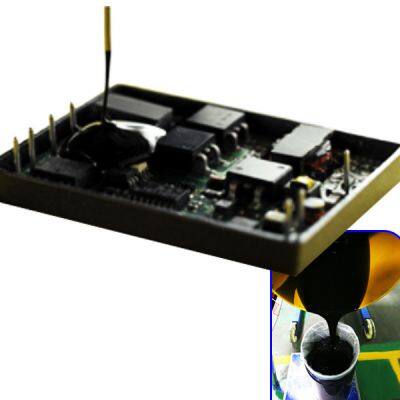

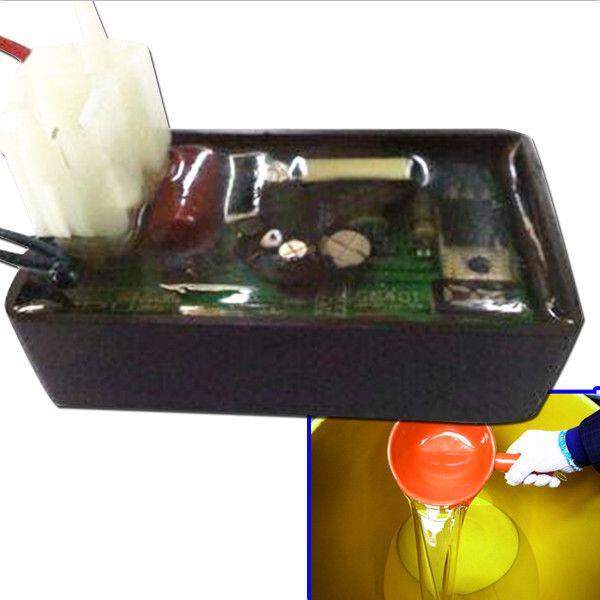

Potting silicone is generally used in all kinds of control modules, and the components are generally poured in order to achieve the basic requirements of moisture-proof, anti-fouling and anti-corrosion. Silicone sealant can reduce stress and withstand high and low temperature impact. For the high power control module, thermal conductive sealing glue is used to achieve the function of heat dissipation.
Advantages:
* Compared with epoxy resin, it has better modification ability and electrical insulation ability, high and low temperature
resistance, climate aging resistance, ozone resistance, hydrophobia, non-flammability, non-toxic, non-corrosive and physiological inertia, etc.
* Good cold and heat shock resistance, withstanding the cold and heat shock of - 60 C - 200 C, non-cracking, maintaining
elasticity, sealing performance, moisture-proof/waterproof performance is superior.
* It can be operated in all kinds of harsh environments without too much requirement for the environment (Moisture, salt fog,dust, vibration, heat, deep sea, cold, etc.).
Operation Instruction
2. Enclose the product (the original model) with four plastic plates or wooden plates.
3. Clean your products and brush a layer of release agent(detergent or soap water) on your product.
4. Pour the mixture with correct mixing ratio into the model frame.
After about 2-4 hours, when the silicone cured, get out the original model, and there you get a finished addition cured silicone mold .
Warm tips :
1. As addition cure silicone is a kind of platinum cure system ,which will be easy to cause uncure problem ,so Kindly follow the
tips below :
＊Do not mix with liquid condensation silicone rubber or even the tool which used for condensation silicone
＊Do not mix with organic matter which contains N, S, P organics and ionic compound like Sn, As,Hg, Ph,
＊Do not add any pigment or powder into the addition cure silicone rubber without any testing to prevent uncure problem
Why Choose us
2. High-end research and development (free sample)
Being a leading liquid silicone manufacturer in China, we have a professional R&D team and QC team(12 experts ) and our product is RoHS, MSDS, ISO, REACH, UL approved, Food grade approved, so there is no need to worry about the quality.
3. Efficient service
We can provide free training of silicone technique and free silicone samples. we have a professional sales team who will solve your problems patiently. Besides, with efficient logistics distribution system, you could get you goods earlier. Last, good after-sales service,we build long term cooperation relationship, once there is quality problem, we could solve right away. More importantly, return and exchange are accepted while quality problems occurred.
Package
1kg/drum,5kg/drum, 20kg/drum,25kg/drum, 200kg/drum.SHELF LIFE
Twelve (12) months from date of shipment when stored at 25°C in original unopened packages.
We can provide the free sample, more details about silicone rubber, pls contact Ms Lisa at:
Mobile/ Whatsapp/: +86 188 1670 2967
Wechat: +86 188 1670 2967 or A108059
E-mail: lisasilicone(at)inibaba(dot)com
Twitter/Facebook:lisasilicone
