Help CenterPwrblade Board to Board 2pin 4pin Module Fci Amphenol Power Blade Connector for Rectifier Module
Related Products
-
Molex Tyco Fci Amphenol 5pin Board to Board Power Blade ConnectorUS$ 4.8 - 6.2MOQ: 100 Pieces -
AC/DC Power Distribution Amphenol Fci Pwrblade 2pin Rectifier Module Power Blade Connector for Communication NetworkUS$ 4.8 - 6.2MOQ: 100 Pieces
-
OEM Fci Amphenol 4pin 30signal AC/DC PCB Power Blade Connector for Rectifier ModuleUS$ 3.2 - 3.5MOQ: 100 Pieces
-
2pin Fci Amphenol Pwrblade Ultra Power Blade Connector for High Density Rectifier ModuleUS$ 4.8 - 6.2MOQ: 100 Pieces
-
Powerblade Fci Pwrblade 5pin Power Modular Power Blade Connector for Power Distribution Rectifier ModuleUS$ 4.8 - 6.2MOQ: 100 Pieces

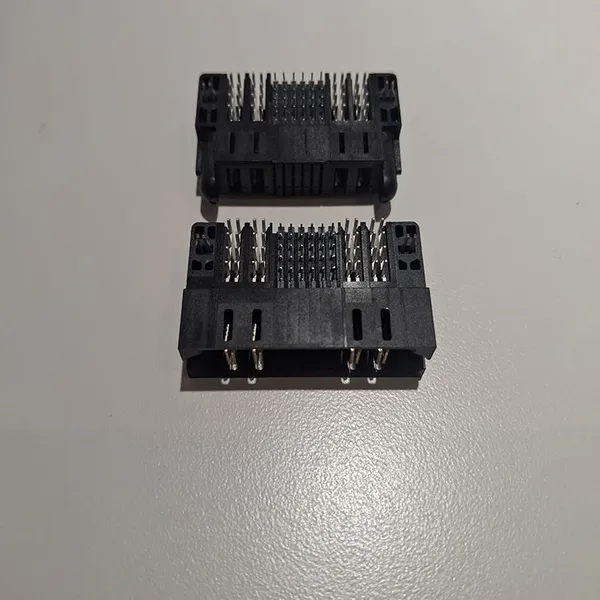

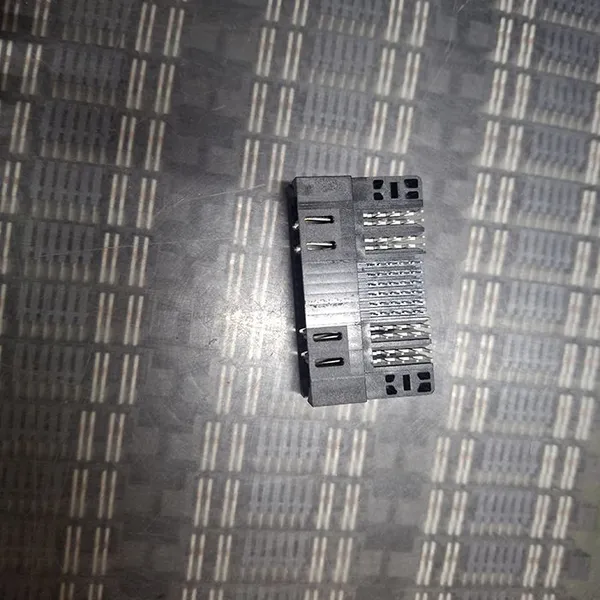

Low Voltage Modular board to board 2Pin Power Pitch 7.62mm tyco AMP Electrical Fci Amphenol 10127397-03h1510lf Power Blade Connector module Connector
Product Parameters
Attribute
Value
Component Type
Power Supply Connectors
Gender
Receptacle
Header Pin Pattern (Left to Right)
Power( Header)
Number of Contacts (Power)
4
Number of Rows (signal)
30
Orientation
Right Angle
Termination Style
Board to Board
Pitch (Power)
7.62mm (0.300in)
Current Rating
40A max. for One Powered Contact
Resistance (Contact)
Maximum for mated pair is 2m
Dielectric Withstanding Voltage
2500V DC for signal
Voltage Rating
300V
Color - Housing
Black
Operating Temperature Range
-40°C to +125°C
Material Housing
PPA, glass fiber reinforce, UL94V-0
Durability (Mating cycles)
250 Mating Cycles
Solder process
High Temp Solder Process
Plating Contact area
0.76μm (29.921μin) Gold
Tail Plating (Power)
1.98μm (78μin) Tin
Guide Feature
Guide Pin Pocket
Packing
Cartons or Tray
Application:
1. Intelligence high frequency switching power supply: Communication data center, electric power, railway power supply, solar photovoltaic power, Electric drive and charging equipment, industrial power, medical beauty equipment.
2. Intelligence high frequency switching power supply
3. UPS Uninterruptible Power Supply
4. Contravariant power,solor inverter,battery charging
5. Drawer low-voltage cabinet etc.
6.Food and Beverage Distribution,Transmission & Distribution
Company Profile
Shenzhen Anfick Connector Technology Co.,Ltd ,with more than 40 employees,4 CNC lines,5 assembly lines,we are professional electrionic manufacturing supplier in Shenzhen,China
Anfick covers an area of more than 4000 square meters,we have achieved the ISO9001 :2000,ISO14001 :2015,ROHS,CE,UL,certifications.
Our Connector embly continue to meets and exceeds customer's expectations,such as quality,delivery,service of sales...etc.
Resulting from the corporation culture of honesty,partnership,creativeness,quality excellence,and superior services.
The corporation mission is ' Quality first,Custmomer Satisfaction,Innovation and Advance',in the road of future,Anfick mould connector(ups connector) is committed to our customers' growth and success,more opportunities,more benifits,more reliability.
Our research and development center for UPS(Uninterruptible Power Supply ) ,that most of our engineers have done many years and most work experience,such as intelligent hardware,communications,industrial design.
Our exhibition:
Packing and Shipping:
FAQ:
1. Please be noted that the price in our website is merely the reference price and the actual one is subject to our final confirmation!
2. Any problem, requirement and suggestion, please contact us freely, we'd be very pleased to be at your side.
Q1: Are you a factory or trade company
A:Yes,we are the factory,we have our own connector manufacturer and assembly factory
Q2: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3. How often does your company update the product ?
A: We never ever stop developing new products. We will design a new product according to the market demand.
Q4. Can I place sample order for testing before placing regular order?
A: Yes, trial order is acceptable.
Q5. What payment methods your company accepts?
A: We accept T/T (Bank Transfer), Paypal , Western Union, Cash, L/C and made in china Trade assurance.
Q6. How about your after-service?
A: We offer 12 months warranty for all products.
About order
Q. Is there a minimum order amount?
A. We don't request MOQ for trial order.
Delivery time:
Q.How about your delivery time?
A: 3 working days after accepting the full payment when the goods in stock.
5-12 working days when the goods out of stock.
Customer Service
Q. What kind of service your company offer?
A:
OEM Service
We can offer our customers OEM service including laser customer's logo on the products
After- service
We promise that we will offer you really after-service, only if our product's issues! Best after-service will be provided by our own professional sales team and after-service team.
Personalized Service
If you have any idea of the products or want to made your special products, welcome dream team! We have our own developing and designing team, which ensure our own technological and innovative products for customers. We will help you realize your dreams.
Transportation Service
We directly cooperate with DHL, you can get goods faster and save your shipping cost.
Other optional express: FedEx,UPS,EMS.
If the quantity is large, we can also transport the goods to you by sea.
We also have other models too if you have interest and you can contact us for more models.
For any more questions or inquiries you might have,please feel free to contact or email me.
Please serch our company name on google : anfick connector
