Tianji grid plastic tray is a tray appliance widely used in the field of logistics warehousing. Here's a detailed description of it:
Structural features
Bottom structure: The bottom of the tray is composed of crisscross ribs, forming a number of small squares connected with each other. This structure makes the tray evenly loaded and has a strong load carrying capacity.
- surface structure: The surface is a grid shape with good ventilation, sliding and drainage properties, and anti-sliding blocks can be added to prevent the movement of cargo.
Specifications Dimensions

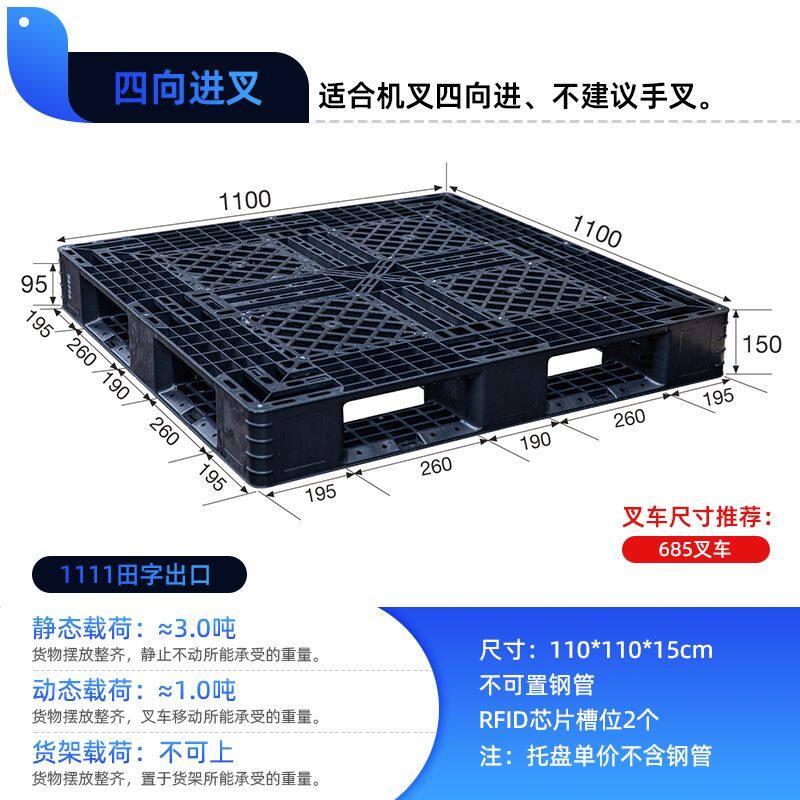

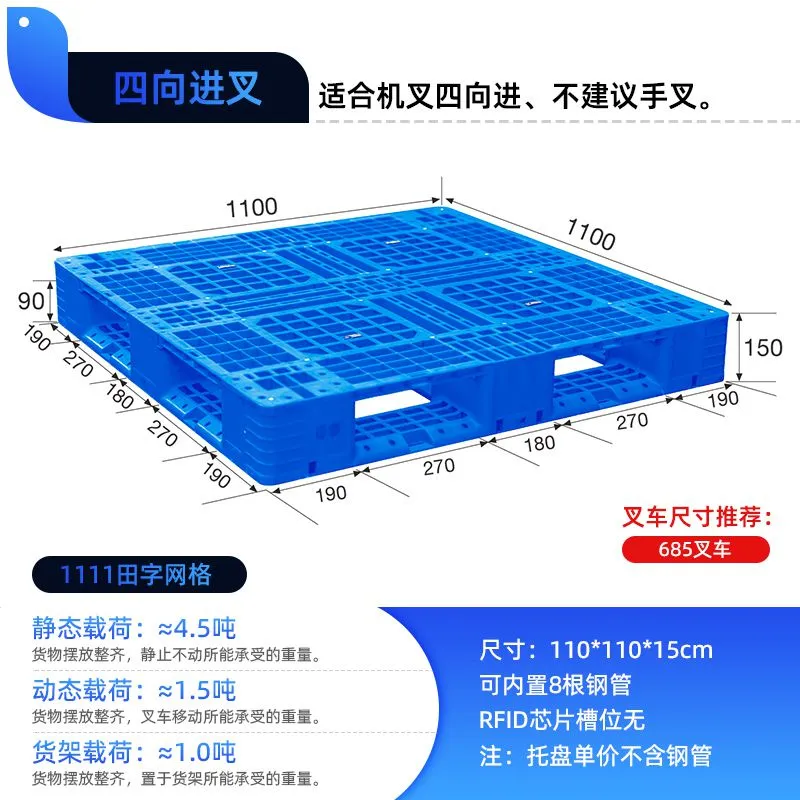

Common specifications are 1200mm×800mm×150mm、1200mm×1200mm×150mm、1100mm×1100mm×150mmTo meet the needs of different goods and storage equipment.
Material characteristics
Mainly used HDPE (low pressure high density polyethylene) or PP (polypropylene) material. HDPE tray is non-toxic, tasteless, with good heat resistance to heating, cold resistance and chemical stability; PP pallets are light weight, good resistance to heating and high mechanical intensity.
Performance advantages
- Easy operation: It can be inserted on all sides, facilitating the operation of forklifts, hydraulic pallets and other moving tools, and can improve the efficiency of cargo handling.
- High suitability: It is suitable for stacking each other in warehouses and for use on various shelves, and is easy to transport by truck, which can achieve the packing and uniting of materials.
- Long service life: The plastic material is durable, strongly resistant to impact, and can be reused after damage, safe to use, hygienic, insect- and decay-resistant, and does not need repair.
Load carrying capacity
General dynamic load capacity of up to 1-2.5 tons, static load capacity of up to 4-6 tons, different specifications and materials of the pallet load carrying capacity is different.
Areas of application
It is widely used in import and export trade, automotive, food, tobacco, medicine, paper, electronic appliances, chemical, clothing, textile and other industries.
