Inbai Chuanzi Plastic Pallet 1111 Grid Forklift Base Plate Plastic Floor Plate Used in Logistics Warehouse
The chuan-type plastic pallet is named because the bottom is shaped like the chuan-shaped structure.
The core advantages are strong bearing weight and high stability, and it is suitable for many logistics scenarios.
The specific information is as follows:
I. Core advantages
1. The load bearing performance is excellent: 3 longitudinal main beams + lateral auxiliary beams at the bottom,
and the single point load bearing and overall resistance to metamorphosis are strong, far exceeding the twang and
nine-foot tray.
2. Wide adaptation: supports four-way forklift insertion (partly designed), and can be paired with a variety of storage
equipment such as piles, shelves, and automated conveyor lines.
3. Durable anti-building: more HDPE / PP made of new materials, waterproof, moisture-proof, anti-aging, no moth,
decay problems, service life is 3-5 times the wooden tray.
4. Safety and environmental protection: the surface is smooth and free of thorns, avoiding scratching of goods; The
material can be recycled, meets environmental protection requirements, is clean and easy, and is suitable for food,
medicine and other industries.
5. Lightweight and efficient: 30% -50% lighter than wooden pallets, which saves effort to carry, and the bottom gap
is even when stacked, saving storage space.
II. Typical use scenarios
- Automated warehousing: adapted to intelligent sorting lines and stacking machines, the "chuan" structure at the
bottom can steadily connect the conveyance equipment and improve the flow efficiency.
- Shelving Storage: Due to its strong bending resistance, it can be used directly for high-rise shelves (3-5 levels),
commonly used in 3-D warehouses in the e-commerce, electronics, and machinery industries.
- Heavy cargo transport: suitable for heavy cargo (more than 1 ton) such as chemical barrels, automotive parts, metal
parts, etc., and can withstand frequent forklift picking and transshipment.
- moisture / clean environment: waterproof and corrosion resistant properties, which can be used in food processing
workshops, cold storage, medical warehouses and other environmentally demanding scenarios.
- Container shipping: Standardized sizes (e.g. 1210, 1111) are suitable for containers, and the bottom structure is secure
to avoid cargo displacement in transit.

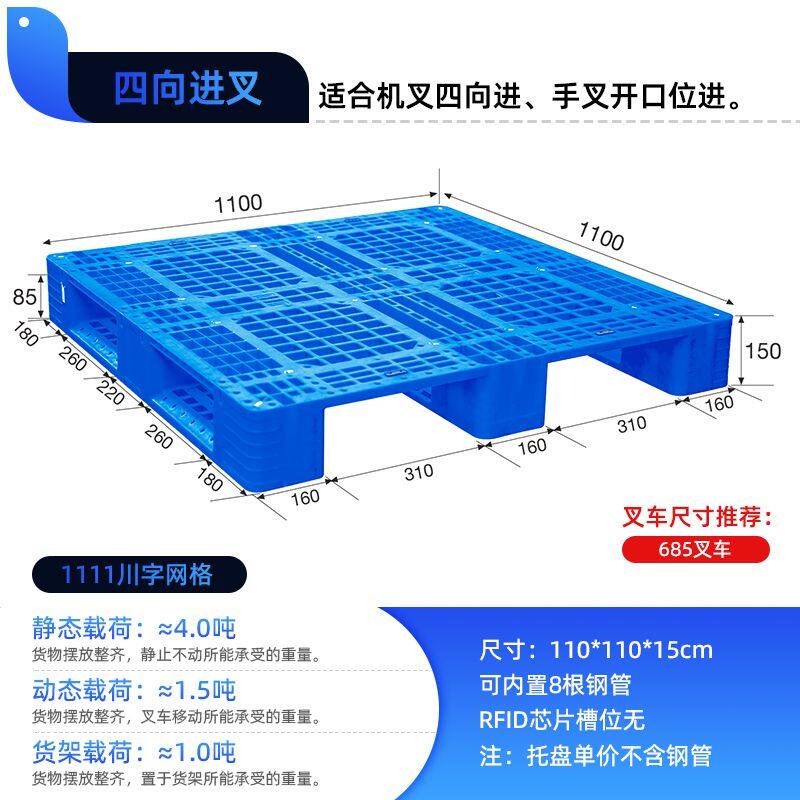

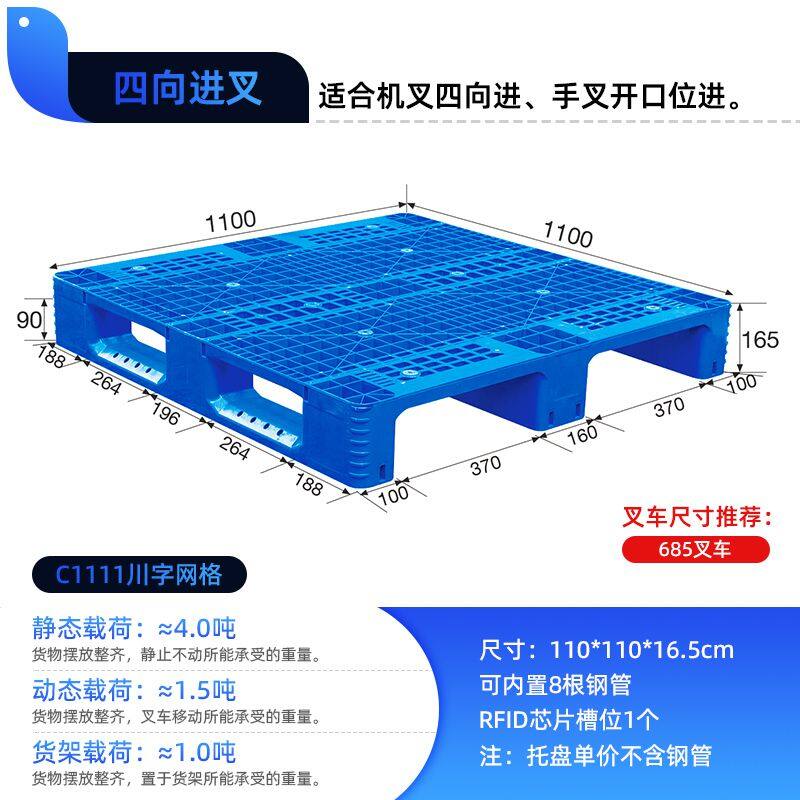

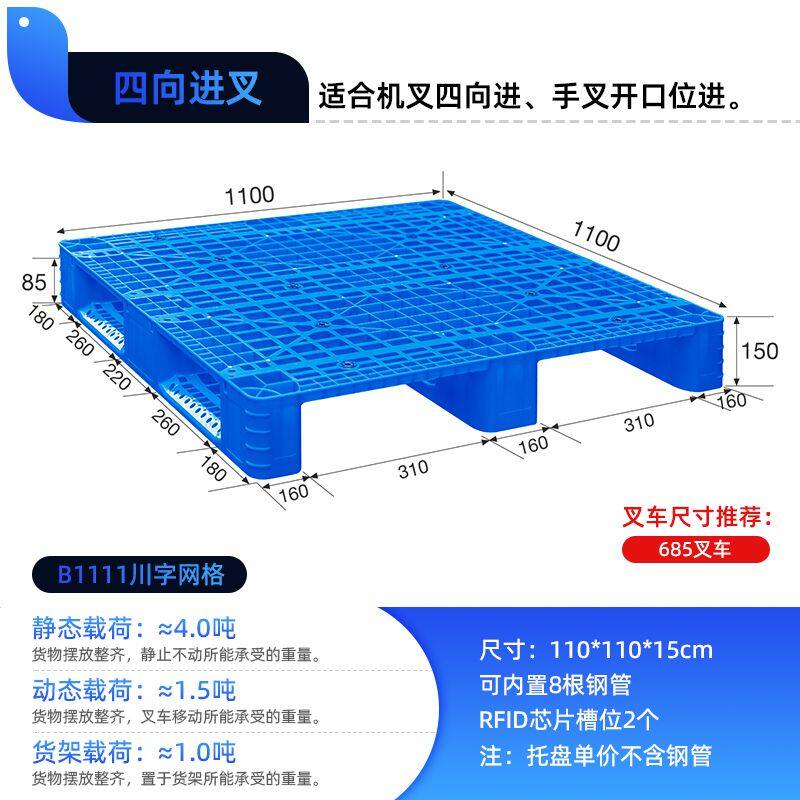

III. Conventional load bearing range (1200 × 1000 mm size as an example)
- Dynamic load: 1-1.5 tons (load when forklifts are handled and transferred);
- Static bearing: 4-6 tons (for static stacking or ground storage);
- shelf carrying: 0.8-1.2 tons (carrying weight when used on a shelf, the built-in steel pipe can be raised to 1.5-2 tons).
Note: The bearing weight will vary due to the material (new material / recycled material), whether to add steel pipes
, pallet thickness, etc., specifically based on the manufacturer's parameters.
