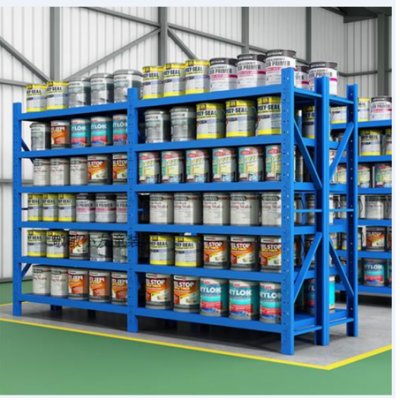

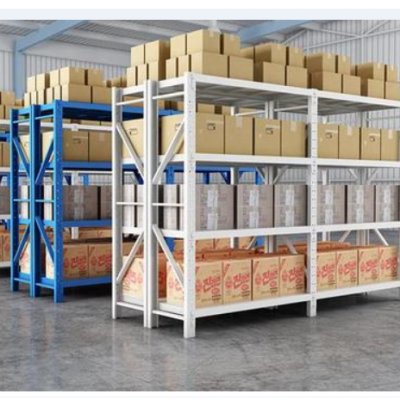

Light Duty Warehouse Storage Butterfly hole storage rack
Light shelf is a very economical, practical and convenient warehouse shelf, because of its light load, it is often called light shelf. The shelf is composed of three components: columns, beams and laminates. The lightweight shelf as a whole adopts screw free combined design, easy to install and disassemble. Suitable for storing some light small goods, is a laminated shelf.
It is characterized by a full-assembly structure, free combination, installation, disassembly convenient and flexible, shelf material section optimization, a variety of pipe selection, improve the bearing capacity, the laminates have wood and steel plate to choose from, the column height is provided with a 50mm adjustment hole distance, can be adjusted according to the height of the goods between the layers, surface treatment using polishing, surface rust, oil removal, electrostatic powder spray treatment, It can be sprayed according to customer's specified color, with beautiful color, not easy to oxidize, easy to clean and other advantages, less capital investment, widely used in factories, shopping malls and other warehousing needs.
| Brand | TS |
| Color | customizable |
| Closure | open |
| Dimension | customizable |
| Load-Bearing | customizable |
Product Description
Multi-Layer Warehouse Shelf
We provide one-stop warehouse storage services:
* Design and manufacture of steel structure warehouse
* Free Store Layout Design * Customizable warehouse shelves
* Free warehouse rack installation instruction manual
* 15-20 days on-time delivery
* 30% advance payment, T/T
* 5 years warranty
Detailed Photos
| Product Name | Warehouse Storage Stacking Racks & Shelves |
| Material | Q235B |
| Color | Orange, Grey, Blue, Customized |
| Shelf Size | Support Customization |
| Number of Layers | Customized: 2-6 Layers |
| Surface | Electrostatic Spray Surface, odorless |
| Feature | Anti-rust, Corrosion-protection |
| Use Area | Warehouse, Factory, Storage Place |
| Guarantee period | 5 Years Warranty |
|
Product Type | Light Duty Warehouse Shelf |
| Load Capacity | 100 KG/Layer | |
| Color | White / Bule / Red, or Customized | |
| Upright Size | 50 * 25 * 0.5 mm | |
| Beam Size | 50 * 30 * 0.5 mm | |
| Panel Thickness | 0.24 mm | |
| Size(L * W * H )mm | 1200 * 400 * 2000 1200 * 500 * 2000 1500 * 400 * 2000 1500 * 500 * 2000 |
|
Product Type | Medium Duty Warehouse Shelf |
| Load Capacity | 200 KG/Layer | |
| Color | White / Bule / Red,or Customized | |
| Upright Size | 70 * 35 * 0.6 mm | |
| Beam Size | 60 * 40 * 0.6 mm | |
| Panel Thickness | 0.3 mm | |
| Size(L * W * H )mm | L:1070 / 1200 / 1500 / 2000 W:400 / 500 / 600 H:2000 / 2500 / 3000 |
|
Product Type | Heavy Duty Warehouse Shelf |
| Load Capacity | 300 / 500 KG/Layer | |
| Color | White / Bule / Red | |
| Upright Size | 75 * 35 * 0.9 mm 75 * 35 * 1.1 mm |
|
| Beam Size | 60 * 40 * 0.9 mm 80 * 40 * 1.1 mm |
|
| Panel Thickness | 0.4 mm 0.5 mm |
|
| Size(L * W * H )mm | 2000 * 600 * 2000 |
Product Parameters
Main and Auxiliary Shelf Connection
The main shelf has two uprights, and the main shelf can be used alone. The auxiliary shelf is connected to the main shelf column and can be extended infinitely. Save the cost of a column and improve space utilization.
Company Profile
we can manufacture according to your requirement. so welcome your enquiry.
