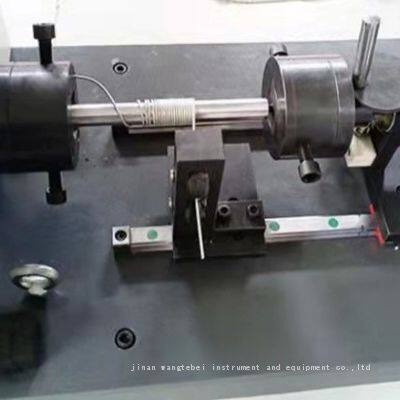

WTER-10 full automatic metal wire torsion and wrapping tester
1. introductions
The WTER-10 full automatic metal wire torsion and wrapping tester can do both torsion test according to GB/T 239.1 and ISO 7800 for simple torsion test, GB/T 239.2 and ISO 9649 for reverse torsion test and wrapping test according to GB/T 2976 and ISO 7802 to metal wire with diameter from 0.3 to 10mm. The WTER-10 full automatic metal wire torsion and wrapping tester adopts touch screen control, auto get accurate torsion and wrapping turns,
2. relative test methods
GB/T 2976, ISO 7802, GB/T 239.1, ISO 7800, GB/T 239.2, ISO 9649
3. specifications
No. | Item | Spec. |
1 | max. distance between jaws | 500mm |
2 | torsion speed | 15r/min, 20r/min, 30r/min,60r/min |
3 | wrapping speed | 0-2r/min |
4 | relative error of test speed | ≤±5% |
5 | test turns counting range | 0-9999 |
6 | turns resolution | 0.1 turns |
7 | Coaxiality of jaws | ＜φ0.4mm |
8 | test specimen diameter range | 0.3-10mm |
9 | jaw hardness | 55-65HRC |
10 | specimen clamping mode | manual clamping |
11 | test direction | forward and backward |
12 | control mode | touch screen controller |
13 | voltage | 220V,50Hz,1.5kw |
