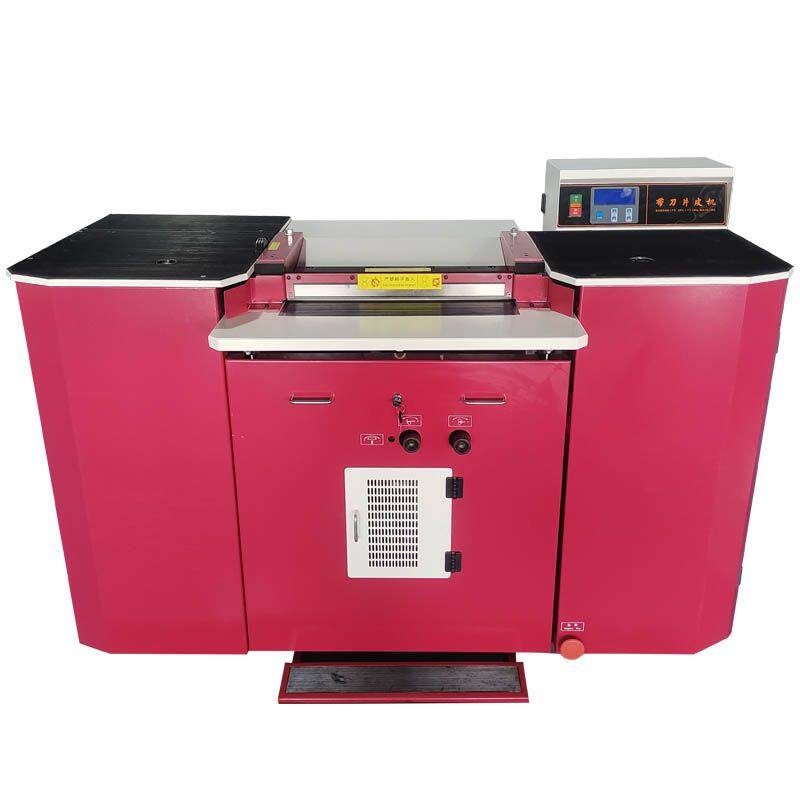

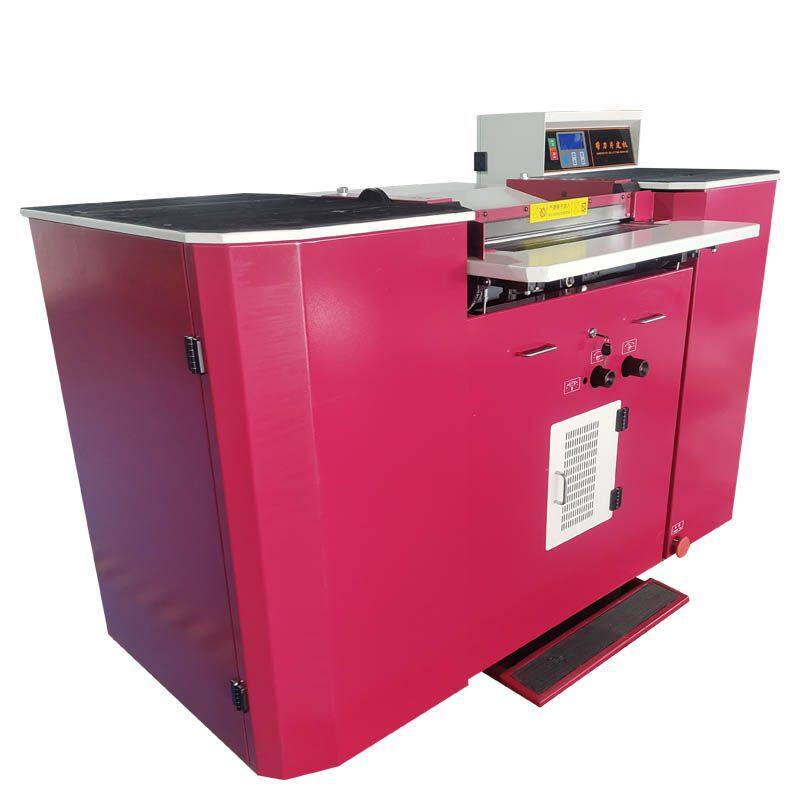

SC-L520 W Leather overall thinning machine
（Product Introduction）： |
The machine is suitable for splitting various soft and Hard materials under width of 520mm and thickness of 10mminindustries such as leather, luggage,footwear, clothing, rubber.etc.to the required thickness,getting higher product quality，finer workmanship,and stronger competitiveness.
（Product Features）： |
· L520Winherits the L620W great function and alladvantages.
·With automatic feed registration device, no need to adjustcutting tool.
·With function of dropping out when it is splitting.
·Automatic pause system when leather material entangles inand automatic detection system of electronic phase.

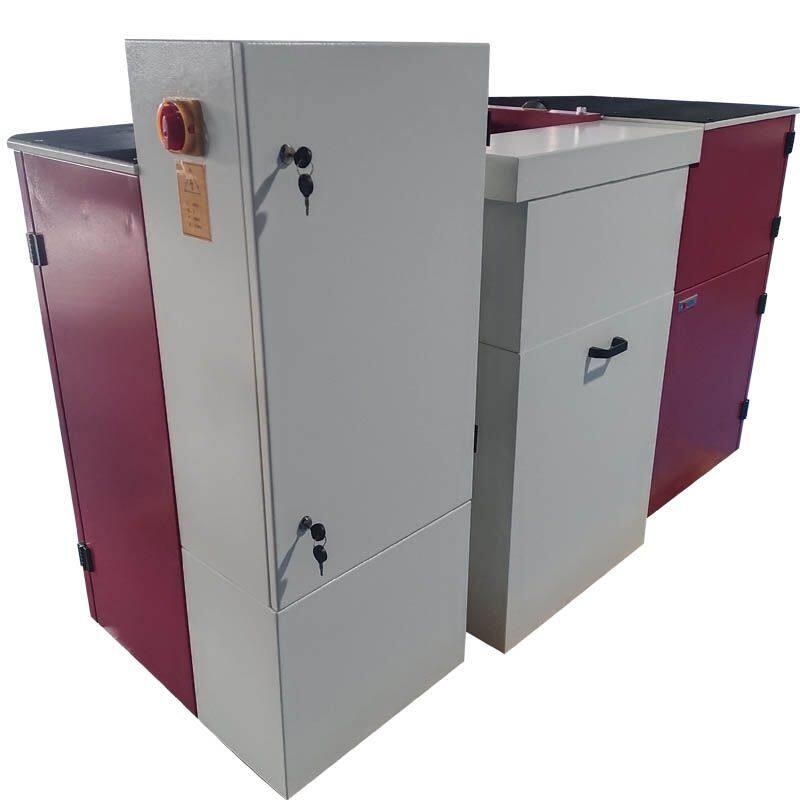

·Freestanding set of dust absorbing and knife grinding dustabsorbing device.
·The outsize flying wheel makes the operation of band knifemore steady and exact.
Technical Specifications: |
Model |
SC-L520W |
Max width of split |
10mm |
Voltage |
380V |
Max thickness of split |
520mm |
Power |
3.5KW |
Min thickness of split |
with top bar：0.15mm with top feed roller：0.5mm |
whetstone |
110*51*8mm |
Power |
3810*50*0.8mm |
Package size |
190*113*150cm |
Gross weigh/Net weight |
900kg/810kg |
