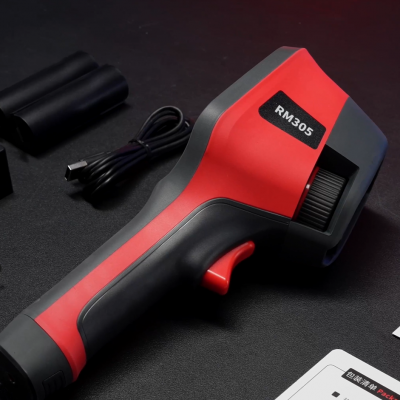

RM305 Professional Handheld Thermal Camera
RM305 is a professional-grade handheld thermal camera, featuring high resolution and manual focus for temperature measurement.
It is equipped with a self-developed 384×288 infrared detector, providing a high sensitivity of 35mK. It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.
Feature
Clear Thermal Images, Precise Temperature Measurement
12μm high-performance 384×288 uncooled infrared detector.
NETD as low as 35mK, capable of distinguishing temperature differences of 0.035°C.
USB plug-and-play analysis, real-time full-frame transmission, and analysis of temperature information.
Professional Functions, Multi-Dimensional Design
Support full-frame high/low-temperature alarms and scheduled image capture, and record temperature rise changes.
Capable of automatically tracking the highest temperature, the lowest temperature, and the central-point temperature within the measurement area.
Support multiple image modes+10 palette settings to meet temperature measurement under different requirements.
Support professional thermal imaging analysis software on the app, PC, and cloud platform.
Hard-Core Configuration, High-End Experience
IP54 and 2m drop protection, solid and durable.
3.5-inch touch screen, 640×480 resolution
Built-in laser pointer module for quick target locating.
Specification
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution384×288Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜35mK (25°C,F1.0)Frame Rate30HzLens Focal Length6.2mmFOV43.7°×31.9°Spatial Resolution (IFOV)1.98mradFocusing ModeManual focusingMeasurement Range-20°C~+150°C, 100°C~550°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | |
| Display3.5-inch touch screen, 640×480 resolutionVisible Light Camera5 megapixelsDigital Zoom1×, 2×, 4×, 8×Palettes10Image ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchAutomatic/Manual | |
| Measurement and Analysis | |
| Analysis Functions on the DeviceCustom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature displaySupporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) | |
| Image Storage | |
| Storage MediumStandard 32GB MicroSD, up to 512GText NotesSupportVoice AnnotationSupportImage NamingAuto/manual naming, naming by scanning QR code | |
| System Functions | |
| Communication ProtocolWi-Fi, USBVideo TransmissionSupport UVC video transmissionLaser PointerSupport | |
| Others | |
| BatteryRechargeable and detachable lithium-ion batteryCharging ModeUSB Type-C or desktop chargerBattery LifeAbout 6h (about 3h for a single battery)InterfaceUSB Type-C, SD cardTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 670g, 258.4×105.1×102.3mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box | |
Application Scenarios
|
Electrical Maintenance |
Equipment Maintenance |
Product R&D |
Electric Routine Inspection |
