AISI 304 0.8mm Thickness Cold Rolled Stainless Steel Coil
US$ 1800 - 2150
MOQ: 1 Ton
Key Specifications
Get Latest Price
Shape:
Round
Technique:
Cold Rolled
Standard:
ASTM, AISI, GB, JIS, DIN
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI/TIANJIN/XIAMEN
Delivery Detail:
25 days
Related Products
-
High-Quality 0.1-50mm Stainless Steel Coil ASTM 304 316US$ 1800 - 2150MOQ: 1 Ton -
Available From Stock /304 201 316L Soft/Hard/Precision Strip Stainless Steel CoilUS$ 1800 - 2150MOQ: 1 Ton
-
Hot Rolled Steel Sheet/Plate Hot Rolled and Cold Rolled Stainless Steel Sheet Coil Corrosion Resistant Carbon Steel PlateNegotiableMOQ: 1 Ton
-
Corrosion Resistant Nickel Plate for Alkali Industry Electrolysis Cells Uns N02200 SupplierNegotiableMOQ: 1 Ton
-
Corrosion-Resistant Steel Plate Ba 2ba ASTM 201 403 Width 1000mm 1250mm High QualityNegotiableMOQ: 100000 Tons
Shape
Round
Technique
Cold Rolled
Standard
ASTM, AISI, GB, JIS, DIN
processing services
Welding, Punching, Cutting. Bending, Dec
kind
Stainless Steel Coil
ApplicationThese fantastic properties are the primary reasons of wide applications of Incoloy 800H nickel alloy, including condenser, steam heating pipe, heating element tube, etc.
▪ Industrial furnace components and equipment
▪ Petrochemical and chemical processing
▪ Equipment for Heat-Treating
▪ Pressure vessels and heat exchangers
▪ Hydrocarbon cracking
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Specifications
| UNS | W. Nr |
| N08800 | 1.4876 |
Chemical Composition
| Composition | Ni | Cr | Fe | C | Mn | Si | Cu | S | Al | Ti | P | |
| Content (%) | Min | 30 | 19 | 0.15 | 0.15 | 0.15 | ||||||
| Max | 35 | 23 | 0.10 | 1.5 | 1.0 | 0.75 | 0.015 | 0.60 | 0.60 | 0.03 | ||
Mechanical Properties
| Tensile Strength (σb/MPa) | Yield Strength (σp0.2/MPa) | Elongation (σ5/%) |
| 450 | 180 | 35 |
Product Forms And Standards

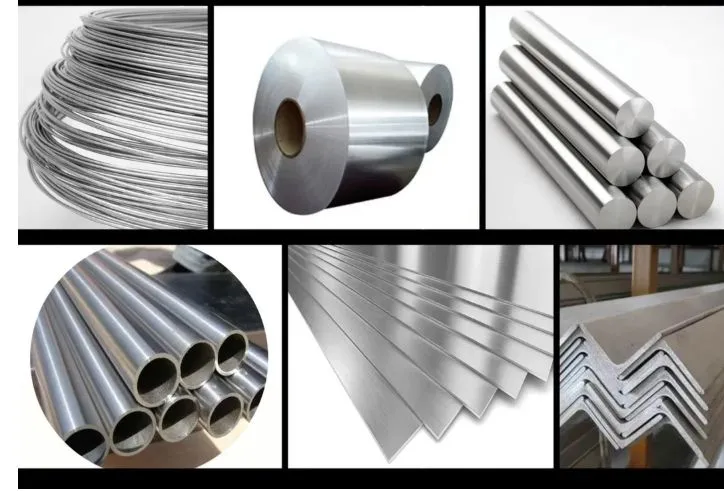

| Bar | Forging | Sheet/Strip | Wire | Pipe |
| ASTM B408 | ASTM B564 | ASTM B409 | ASTM B408 | ASTM B407 ASTM B514 |
Available Sizes And Specifications
| Incoloy 800H available sizes and specifications | |
| Grade | Incoloy 800H |
| Nickel plate | Thickness: 0.3mm - 150.0mm Width: 1000mm - 3000mm |
| Nickel strip/ nickel foil | Thickness: 0.02mm - 16.0mm Width: 5mm - 3000mm |
| Nickel coil | Thickness: 0.3mm - 16.0mm Width: 1000mm - 3000mm |
| Nickel pipe | Outside diameter: 6mm - 1219mm Thickness: 0.5mm - 100mm |
| Nickel Capillary Pipe | Outside diameter: 0.5mm - 6.0mm Thickness: 0.05mm - 2.0mm |
| Nickel bar | Diameter: Ф4mm - Ф600mm |
| Nickel wire rod | Diameter:Ф0.01mm - Ф6mm |
Product Name |
Cold rolled Stainless steel strip | |||
Category |
Stainless steel Coil:Cold rolled strip Production method:Cold rolled Classified by thickness:Thin strip (0.1mm-3mm) |
|||
SIZE
|
THICKNESS |
0.1-3.00mm |
||
WIDTH |
100-2000mm |
|||
LENGTH |
Customized according to your requirements |
|||
Material |
201.202.301.302.304.304L.304J1.310S.309S.316.316L.321.347,329A.2205.2507.2520.409L.410S.430.410.440.444.420J1.420J2.904L etc. Or Customized |
|||
Surface Finish |
NO.2B,NO.2D,NO.3,NO.4,HL,BA,8K,Color coating,frosted,Satin,Gold Titanium Or customized; |
|||
Standard |
GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
|||
Brand |
RONSCO,BAOSTEEL, JISCO, TISCO, etc. |
|||
Application |
Widely used in Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum,boiler, nuclear energy, Medical equipment,fertilizer,pulp and paper equipment heat exchangers, machinery, dyeing equipment, film processing equipment, pipelines, exteriors of Buildings in Coastal Areas etc |
|||
Package |
Standard export sea-worthy packing or customized |
|||
Product processing
pickling - normal temperature rolling - process lubrication - annealing - flattening - fine cutting - packaging - delivery
(1) Cut Type:Plasma cutting, laser cutting, water cutting,etc.(2)Surface Treatment:Frosted, oil-brushed, brushed film, 8K grinding, short-wire combined grain, embossed, black titanium, color titanium, rose gold
(3) other processing:shearing, bending, slitting, welding, punching, gouging,etc
Equipment & Stockroom
Packing
