Wanpu Technology Tlx58c Rugged Terrain Crane Load Limiter Supplier
US$ 1000 - 1500
MOQ: 1 Combo
Key Specifications
Get Latest Price
Certification:
ISO9001: 2000
Type:
Bearing
Application:
Tunnel Boring Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
China-made TLX68C Rugged Terrain Crane Load Torque Indicator is Safe and StableUS$ 1000 - 1500MOQ: 1 Combo -
Crane Torque Limiter,Excavator Torque Limiter,Excavator Weighing and Weighing SystemNegotiableMOQ: 1 Set
-
Crawler Hoist Torque LimiterNegotiableMOQ: 1 Set
-
WANPU Technology TLX Torque LimiterNegotiableMOQ: 1 Set
-
Crawler Crane Torque LimiterNegotiableMOQ: 1 Set
Certification
ISO9001: 2000
Type
Bearing
Application
Tunnel Boring Machine
Condition
New
I. Overview
The TLX50C torque limiter (hereinafter referred to as the force limiter) and control system are suitable for truck cranes.
The TLX50C force limiter provides rich and effective operation information for crane operators, so that the crane can be effectively used within its design parameters. A variety of signal sensors cooperate with instruments, and the force limiter can provide the operator with real-time information such as arm length, angle, working range, rated weight and actual weight.
When the operation of the crane exceeds the allowable safety range, the force limiter will issue an alarm to remind the operator to stop the illegal operation, and at the same time send a control signal to automatically lock the movement in the dangerous direction.

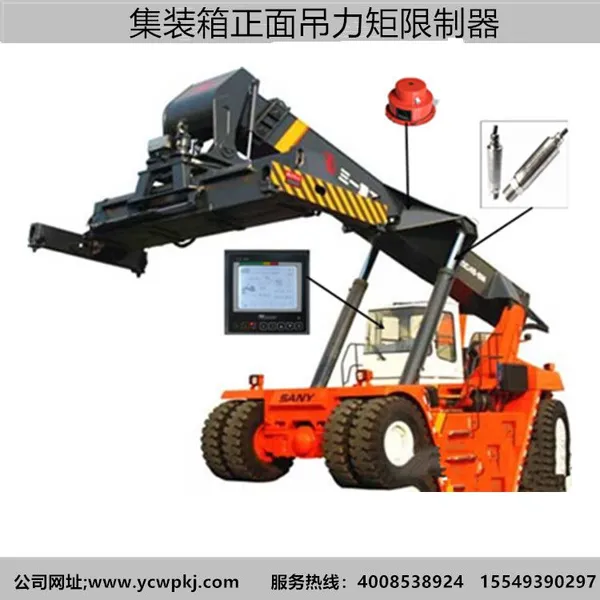

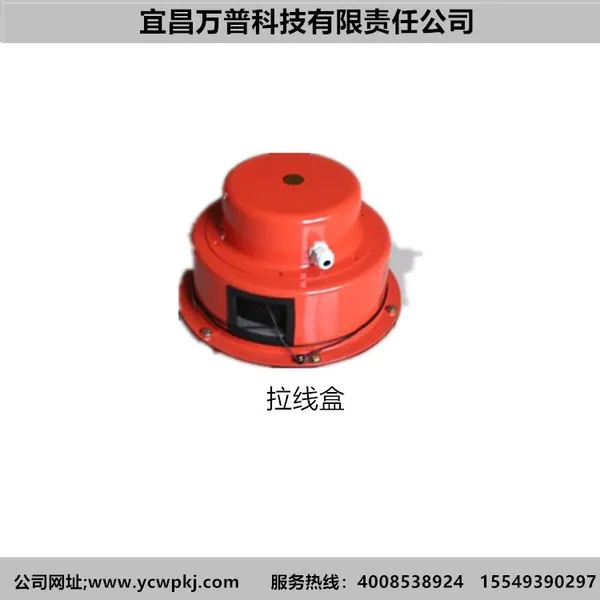

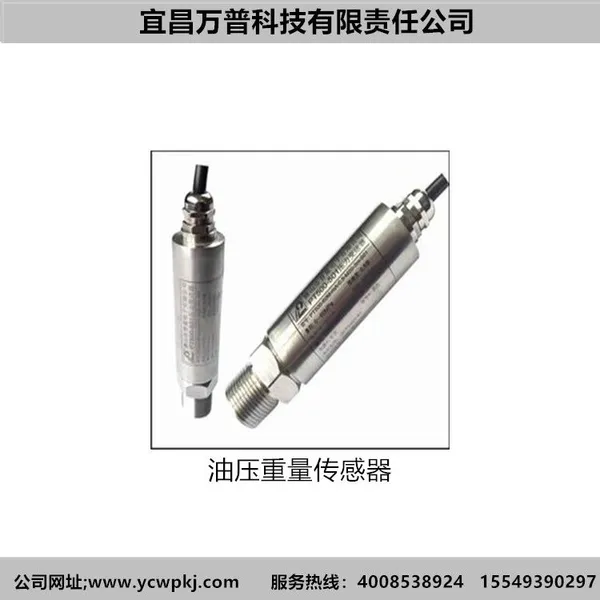

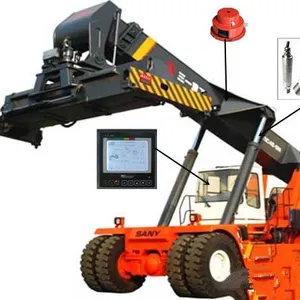

The system consists of a display host, a length sensor, an angle sensor, a hydraulic sensor, a height limit switch, etc.
II. Main functions
Display - Intuitively display crane operating parameters such as actual lifting weight, rated lifting weight, arm length, angle, working conditions, magnification, etc.
Pre-call and alarm
When the crane occurs in any of the following situations, the TLX50C torque system makes an alarm sound.
- Crane torque overload
- The lifting of the crane exceeds the limit
- Force limiter system failure
Control
With the crane electrical system, when the system issues an alarm, any of the following dangerous directions is prohibited:
- The arm changes downward.
- The arm is out.
- Lifting of the sling
At this time, the system only allows operations in the safe direction, that is:
- The boom is variable upward.
- Boom retraction
- The sling falls
III. Technical parameters
♦ Display: 5.0 black and white
♦Analog input: 6
♦ Switching output: 6
♦Control output: 6
♦ Working power supply: DC24V±15%
♦? Data Storage: Yes
♦ System error: ≤±5%
♦ Display size: 100·76mm
♦ Appearance Size: 146·151mm
♦ Outer shell material: metal
♦ Working temperature: -20℃-+70℃
♦Storage temperature: -30℃-+75℃
♦? Download interface: USB (optional)
♦ Communication interface: CANopen2.0/RS485
IV. Features and performance
♦? Integrated host and display, the product structure is compact, small in size, easy to install, and the interface is simple and easy to understand;
♦? It has a data recording function (black box), and an optional USB download interface can cycle through the overload data of the crane, and completely reproduce the relevant data when the crane is overloaded;
♦ Black-and-white graphic display, real-time display of crane rated load, actual load, variable amplitude, arm length, angle, magnification, time, etc. on the display screen, sound and light alarm, automatic control;
♦? Direct input of the weight of the rope, hook weight and working mode;
♦ Full-key operation makes the installation and debugging method simpler and the data more accurate;
♦ Sensor zero drift, temperature drift, automatic tracking compensation, long-term guarantee that the weighing error is within the scope of the national standard
