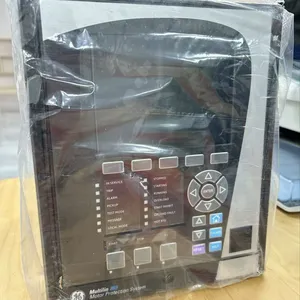

Help CenterGE Multilin 869 Motor Protection Relay Model 869-E-P1-NN-G1-L-S-N-A-A-N-M-S-P-F-B-SE-N-N-B-4 - Complete Technical Overview
Related Products
GE Multilin 869 Motor Management Relay: Ultimate Protection and Control
The GE Multilin 869-E-P1-NN-G1-L-S-N-A-A-N-M-S-P-F-B-SE-N-N-B-4 is a sophisticated, full-featured motor protection relay designed for critical medium-voltage motor applications. As part of GE's renowned Multilin 869 series, this specific model offers unparalleled protection, advanced communication capabilities, and detailed diagnostics to maximize motor life, enhance system reliability, and minimize downtime in industrial environments.
Key Features & Capabilities
1. Comprehensive Motor Protection
This relay provides a complete suite of protection functions to safeguard your valuable motor assets, including:
Thermal Overload Protection: Models motor heating based on operational current.
Stall Protection: Guards against motor damage during extended start-ups or jams.
Current-Based Protection: Includes phase and ground fault (50/51, 50G/51G), negative sequence/unbalance (46), and instantaneous overcurrent.
Other Critical Protections: Loss of load, undercurrent, underpower, jam, short circuit, and more.
2. Advanced Communication & Integration
A standout feature is its extensive connectivity, crucial for modern industrial IoT and control systems:
Dual Ethernet Ports: Enable seamless integration into plant networks for SCADA integration.
Modbus TCP/IP Protocol: Allows for easy communication with PLCs, HMIs, and other control system devices.
Supported Protocols: Includes DNP3, IEC 61850, and PROFINET for versatile interoperability.
3. Detailed Metering & Diagnostics
The relay offers extensive data collection for performance monitoring and predictive maintenance:
High-Accuracy Metering: Real-time monitoring of currents, voltages, power, energy, and power factor.
Event Recorder: Captures sequence-of-events (SOE) with timestamped logs for precise fault analysis.
Oscillography: Acts as a built-in disturbance recorder to capture waveforms during faults.
4. Flexible Control & Logic
Programmable Logic: Integrated Programmable Logic Controller (PLC) functionality allows for custom control schemes without external hardware.
Multiple I/Os: A robust set of configurable digital inputs and outputs for interfacing with control circuits.
5. Human-Machine Interface (HMI)
Large Backlit LCD: Provides a clear display for metering data, status information, and event records.
Intuitive Keypad: Allows for local configuration and control directly at the device.
Decoding the Model Number: 869-E-P1-NN-G1-L-S-N-A-A-N-M-S-P-F-B-SE-N-N-B-4
This suffix defines the specific hardware and software configuration of the unit. Here is a breakdown of key selections in this model:
869: Series Name
E: 100-240V AC/DC Power Supply
P1: 4A Form-C Output Relays
NN: No 2nd & 3rd Phase CTs (CTs external to relay)
G1: Standard 5A Phase CT Inputs, 0.1A Ground CT Input
L: 100-240V AC/DC Control Power (redundant with 'E')
S: 4 Digital Inputs, 4 Digital Outputs
N: No Breaker Control
A: RS485 Communications Port
A: 2nd RS485 Communications Port
N: No Built-in Ethernet
M: Modbus RTU Protocol
S: DNP 3.0 Protocol
P: PROFINET IO Controller
F: IEC 61850 Protocol
B: 10/100Base-TX Ethernet (Copper)
SE: English Language, Standard Display
N: No USB Port
N: No VT Inputs
B: Standard Product
4: 4-20mA Analog Output
(Note: Configuration decoding is based on standard GE literature. Always confirm with official GE documentation.)
Technical Specifications (Summary)
Parameter Specification
Product Line GE Multilin 869
Power Supply 100-240V AC/DC (E)
Phase CT Input 5A Standard (G1)
Comm Protocols Modbus RTU, DNP3, PROFINET, IEC 61850
Communication Ports 2x RS485, 2x Ethernet (Copper)
I/O 4x DI, 4x DO (Form-C)
Display Backlit LCD (SE)
Analog Output 1x 4-20mA (4)
Protection Standards UL, CE, IEC
Typical Applications
The GE Multilin 869 is ideal for protecting and controlling critical motors in:
Water/Wastewater Treatment Plants: Pump motor protection.
Oil & Gas Industry: Compressor and pump motor protection.
Mining Operations: Conveyor and crusher motor protection.
Power Generation: Boiler feed pumps, fans, and ID/FD fans.
Chemical & Petrochemical Plants: Mixer and compressor protection.
Why Choose the GE Multilin 869 Relay?
The GE Multilin 869 offers an unmatched combination of advanced protection, detailed diagnostics, and network connectivity. Its flexibility and robustness make it a future-proof investment for any operation relying on medium-voltage motors. By preventing motor failures and providing data for predictive maintenance, it significantly reduces operational risks and costs.
