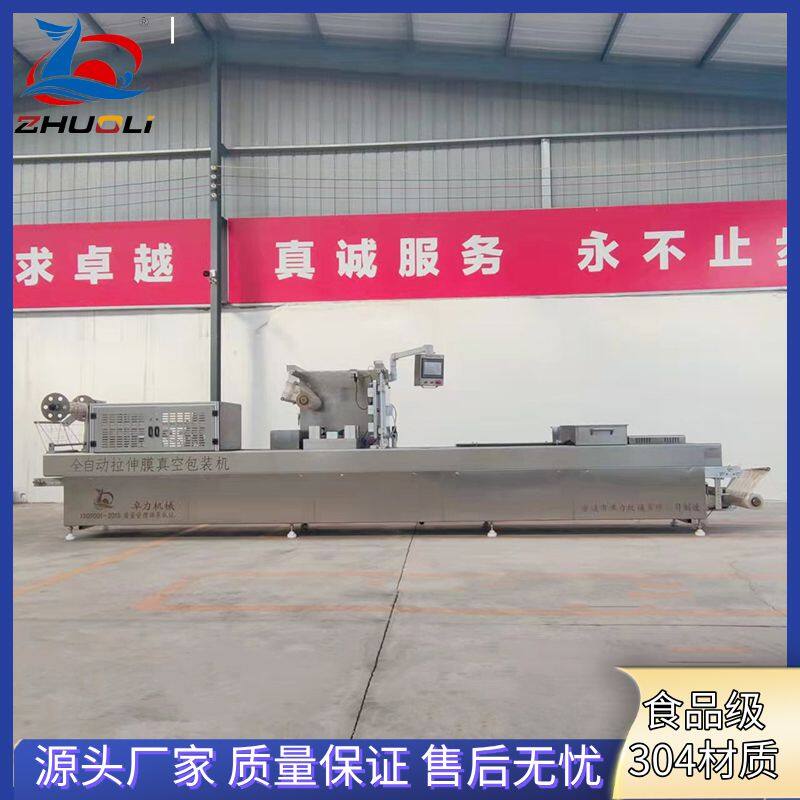

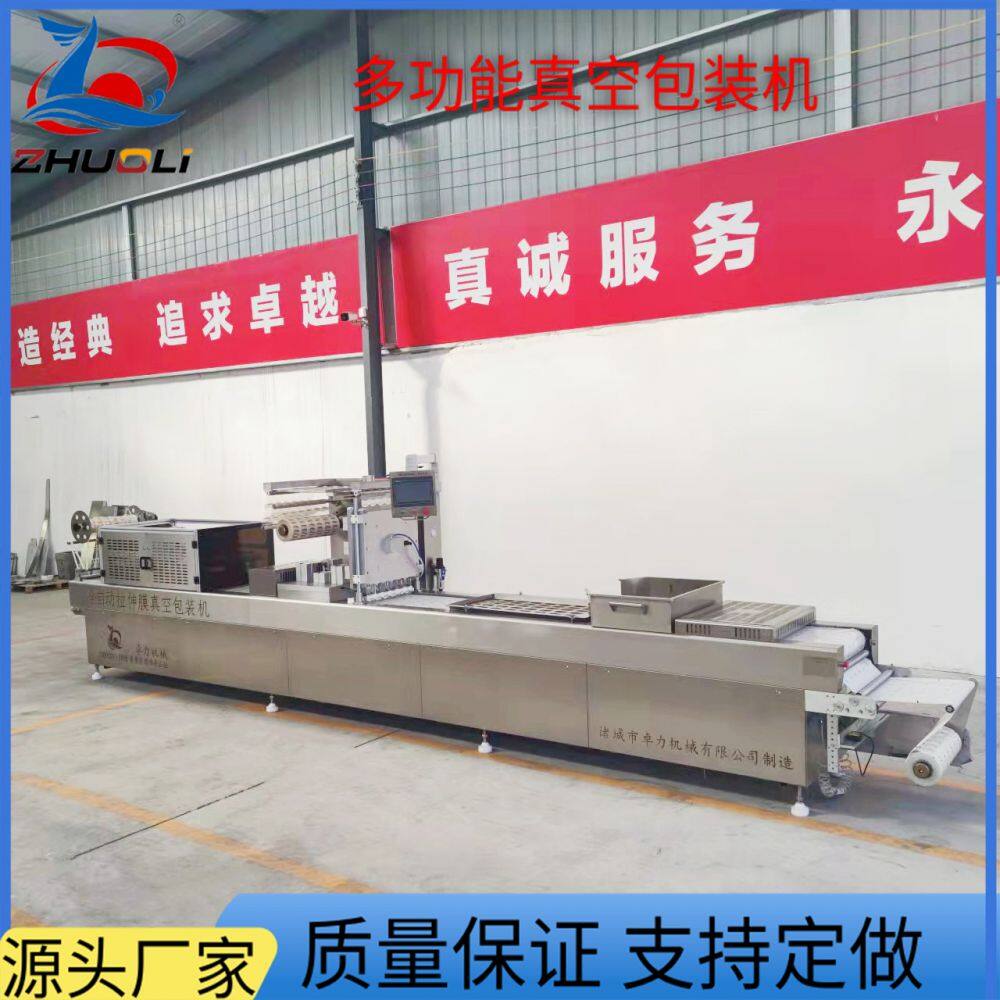

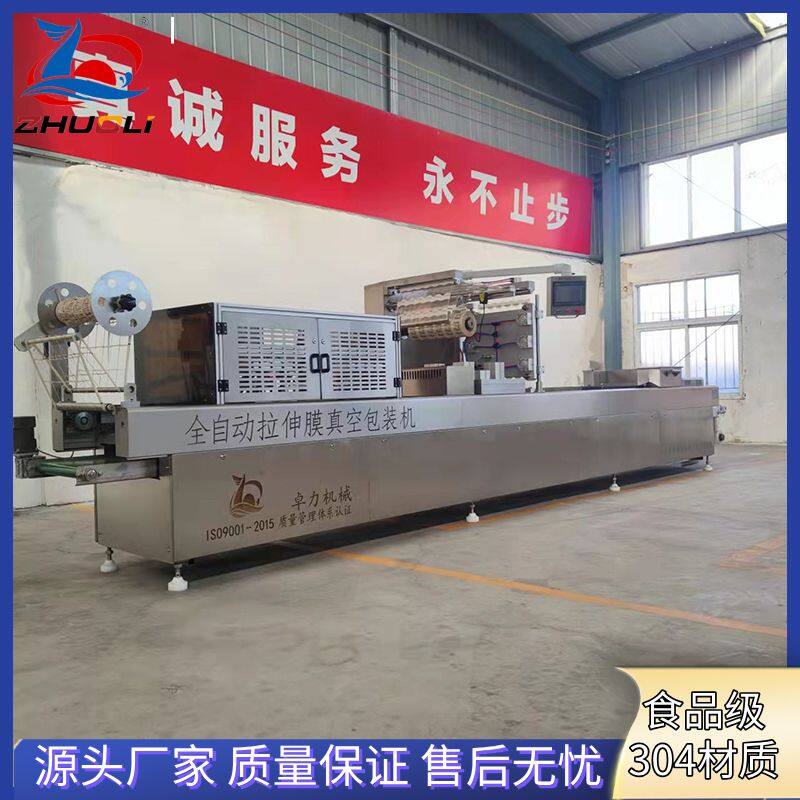

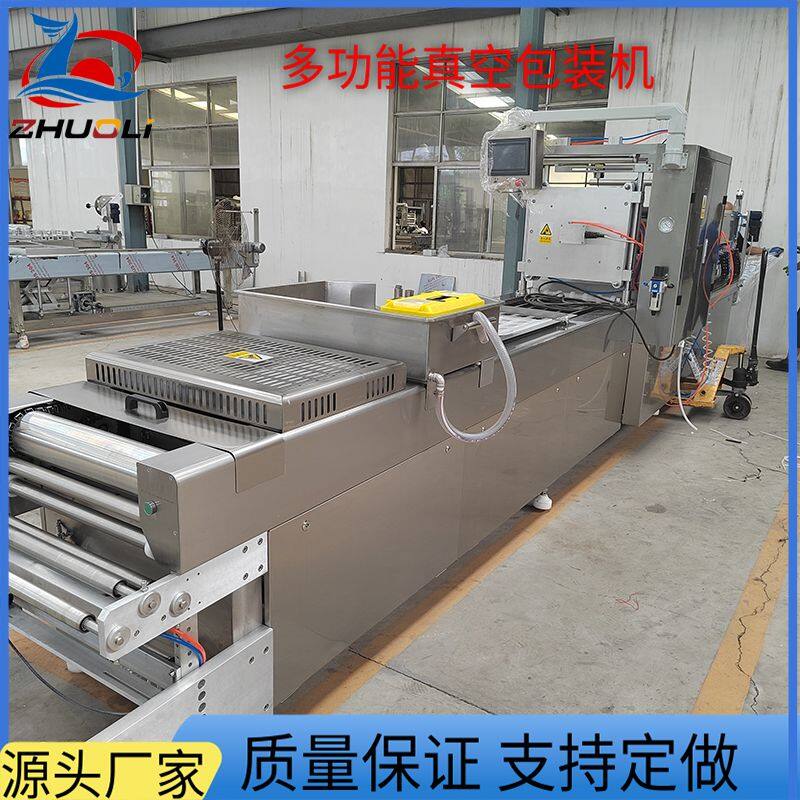

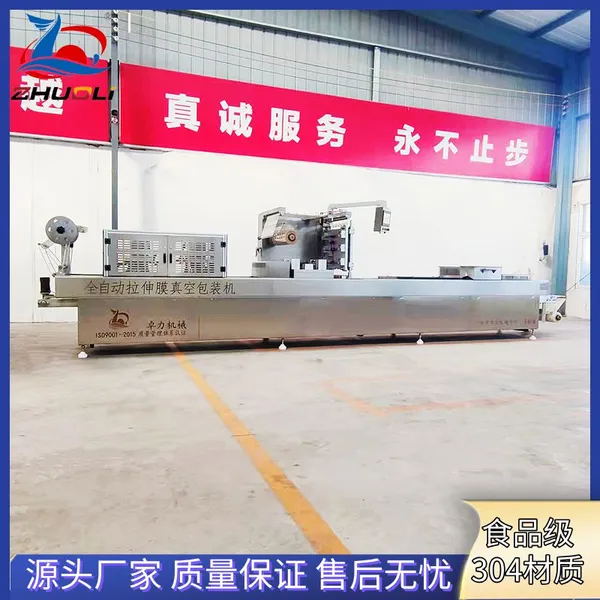

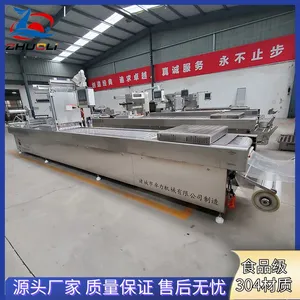

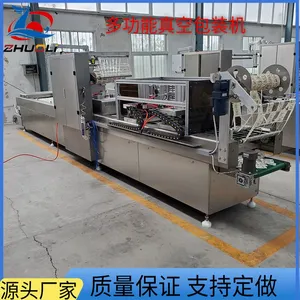

Help CenterAutomatic Salmon Vacuum Packaging Machine; Seafood Vacuum Sealing Equipment
Related Products
-
Vacuum Packaging Machine for Steak Automatic Beef Vacuum Packaging MachineUS$ 48000 - 50000MOQ: 1 Combo -
Automatic Fish Block Stretch Film Vacuum Packaging Machine Seafood Vacuum Sealing MachineUS$ 48000 - 50000MOQ: 1 Combo
-
Automatic Salmon Vacuum Packaging Machine; Seafood Vacuum Sealing EquipmentUS$ 46000 - 48000MOQ: 1 Combo
-
Fully Automatic Salmon Processing MachineNegotiableMOQ: 1
-
Large Industrial Vacuum Packaging Machine Automatic Vacuum Packaging Machine for SaleUS$ 5020.00MOQ: 1 Set
Machine construction The fully automatic continuous stretch film vacuum packaging machine is mainly composed of film conveying system, upper and lower mold guiding parts, base film pre area, heat forming area, filling area, heat sealing area, coding system, slitting area and edge waste recycling system, control system, etc. The whole machine adopts modular structure, and various devices can be added or subtracted according to the needs of users, so as to increase or change various functions. Working principle The working principle of the fully continuous stretch film vacuum packaging machine
working principle
Working principle The working principle of the fully automatic continuous stretching film vacuum packaging machine is to use the forming mold to heat the film first, and then the forming mold to punch it into the shape of the container, and then put the packaged goods into the lower film cavity that has been formed, and then vacuum package it. film used for deep drawing packaging is deep drawing film, which is divided into soft film and hard film. This film has excellent forming performance, high transparency, can block oxygen, heat, sealing, flatness, anti-fog performance, easy to open and other characteristics. This film is matched with the thermoforming packaging machine, not only can it package, liquids, soft objects, fragile products, etc., but also can vacuum soft film packaging, hard film inflation packaging, blister packaging, etc. It is sanitary,-yield, labor-saving, and low cost when used.
Technical parameters:
Model: DZR-420
Top film width: 393mm
Bottom film width: 42mm
Vacuum: ≤200MPa
Compressed air: ≥0.6MPa
Cooling water: ≥0.1MPa
Power supply: 380V/50HZ
Total power: 15kw
Dimensions: 5600*95*1760mm
Weight of the machine: 1800kg
Vacuum pump exhaust speed: 200-300m³/
Working frequency: 4-7 times/min
