RT630 Expert Thermal Camera-capturing More Subtle Hotspots, and Displaying Sharper and Cleaner Thermal Images.

FOB Price

US$ 6599 - 7699 / Unit

1 Unit(Min. Order)

Port YanTai
Payment TermsT/T L/C Money Gram PayPal D/P Western Union Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Industry	Measuring Method	Automatic
Super Resolution	1280×1024	Infrared Resolution	640×512
Video Resolution	1280×720	Measurement Range	-20°c~+150°c, 100°c~650°c; Optiona
Weight	1.3kg (with Battery)	Specification	144× 129× 307 mm
Trademark	Raythink	Origin	Yantai

Product Description

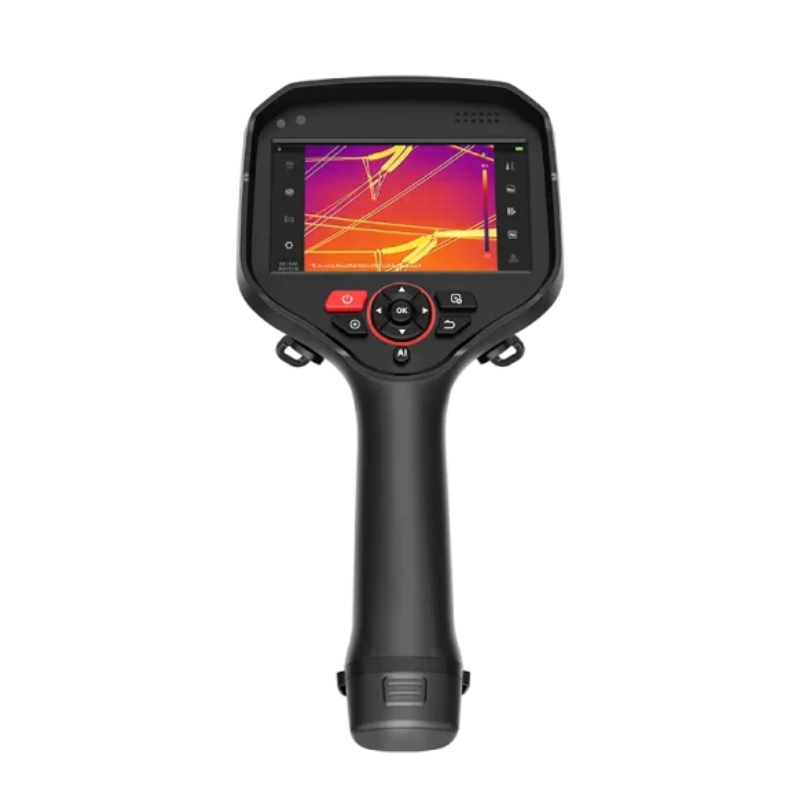

RT630 Expert Handheld Thermal Camera

Product Description

RT630 Expert Thermal Camera

Equipped with a new-generation detector with a high resolution of 640×512 and a NETD as low as 35mK, the new RT630 can capture more subtle hotspots, and display sharper and cleaner thermal images.
The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
It is a new strong tool for expert-level full-scene analysis.

Product Highlights

Clear Thermal Images, Precise Temperature Measurement

1.Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512, supporting super resolution.
2.NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).

Various Lenses and Fast Focusing

1.Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
2.Support macro lenses, flexible for diverse scenarios.

Functional Upgrade to Improve Efficiency

1.Android operating system, more convenient to operate
2.Support intelligent image stabilization, making temperature measurement images more stable
3.Support laser rangefinding and area measurement.
4.Support up to 20 points/lines/areas to analyze more temperature details in the screen.

Specification

Thermal Imaging

Detector Type	Uncooled infrared detector
Infrared Resolution	640×512
Pixel Size	12μm
Super Resolution	1280×1024
Spectral Band	7.5-14μm
NETD	Less than 35mK (25°C,F1.0)
Frame Rate	25Hz
Lens Focal Length	Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm.
FOV	Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°.
IFOV	Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm.
Focusing Mode	Electric micro focus, manual focusing, one-button center focus, automatic center focus, single-touch automatic focusing, laser-assisted focus
Minimum Imaging Distance	Standard lens: 0.6m; super telephoto lens: 4m; telephoto lens: 3m; wide-angle lens: 1m; macro lens: 39mm; super macro lens: 19mm;
Measurement Range	-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C
Measurement Accuracy	±2°C or ±2% of readings, whichever is greater

Imaging Display

Display	5-inch OLED touch screen, resolution 1280×720
Visible Light Camera	13 megapixels
Digital Zoom	1× ~ 10×
Palettes	19 options
Image Mode	Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch	Support
Measurement and Analysis
Analysis Functions on the Device	Support up to 20 movable points, lines, frames, circles and polygons, and up to 5 preset modes
Laser Rangefinding	Support
Area Measurement	Support
Hygrothermograph	Support
Position	Support
Temperature Difference Analysis	Support
Trend Analysis	Supports temperature trend recording and analysis.
Image Freezing	Support
Analysis Report	PDF format. Support editing and template importing on the PC client.
Supporting Software	PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Image Storage
Storage Medium	Standard 64GB Micro SD, Support SD, SDHC, SDXC,up to 2TB
Text Notes	Support
Voice Annotation	Support
Video Functions
Intelligent Image Stabilization	Support
Intelligent Panoramic Stitching	Support panoramic stitching on the PC client, and one-click synthesis.
Intelligent Routine Inspection	Support. General task package import and editing, standard and automatic naming of images
Routine Inspection Record Self-inspection	Support
Dual-Spectrum Video Recording	Simultaneous infrared video and visible light video recording, in MP4 format.
Communication Protocol	Wi-Fi, Bluetooth, USB, DP, Type-C to HDMI
Voice Control	Voice assistant, quick command recognition
Flashlight	Support
System Functions
Intelligent Image Stabilization	Support
Intelligent Panoramic Stitching	Support panoramic stitching on the PC client, and one-click synthesis.
Intelligent Routine Inspection	Support. General task package import and editing, standard and automatic naming of images
Routine Inspection Record Self-inspection	Support
Dual-Spectrum Video Recording	Simultaneous infrared video and visible light video recording, in MP4 format.
Communication Protocol	Wi-Fi, Bluetooth, USB, DP, Type-C to HDMI
Voice Control	Voice assistant, quick command recognition
Flashlight	Support

Others
Microphone/Speaker	Support
Battery	10,000mAh lithium-ion battery, field-replaceable, support fast charging
Charging Mode	USB Type-C or desktop charger
Battery Life	Continuous operating time ≥ 6 hours (depending on the actual environment and service conditions)
Interface	USB3.0 Type-C, SD card, SIM card, Mini HDMI
Tripod Socket	UNC 1/4-20 interface for tripod
Operating Temperature	-20°C~+55°C
Operating Humidity	10%~95% (non-condensing)
Storage Temperature	-40°C~+70°C
Ingress Protection Rating	IP54
Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions	About 1.3kg (with battery), 144×129×307mm
Authentication	CE/RoHS/CMA, etc.
Packing List	Thermal camera, standard lens, lithium-ion battery×2, charging stand, charger (with plug for use in multiple countries), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, certificate of qualification, hand strap (with buckle), safety box, lens cap (with screws).

Applications

High Temperature Material Monitoring

Electronic and Electrical R&D

Electric Routine Inspection

Chemical Operation and Maintenance
