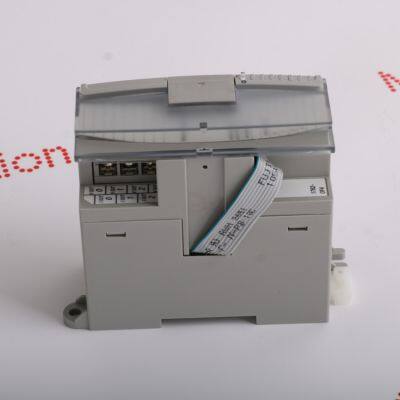

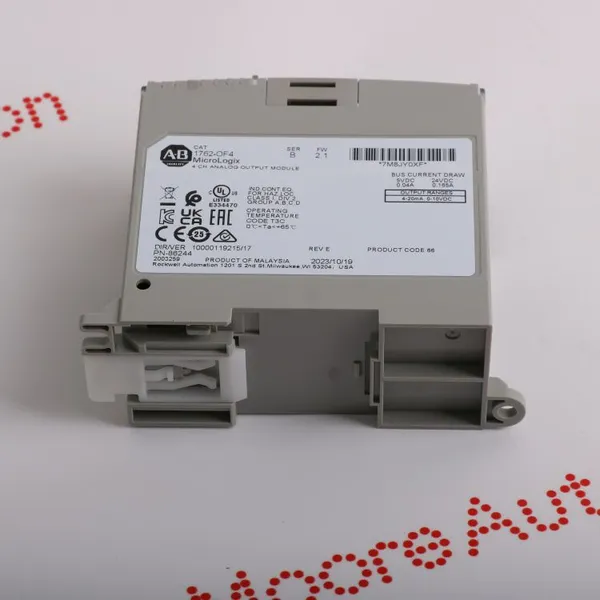

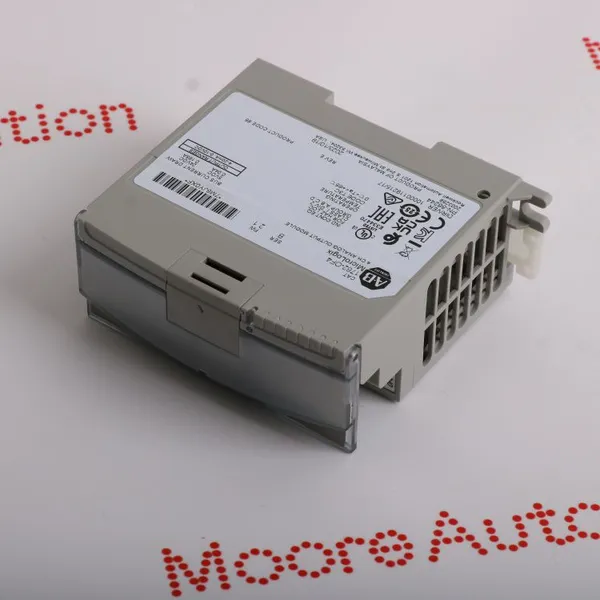

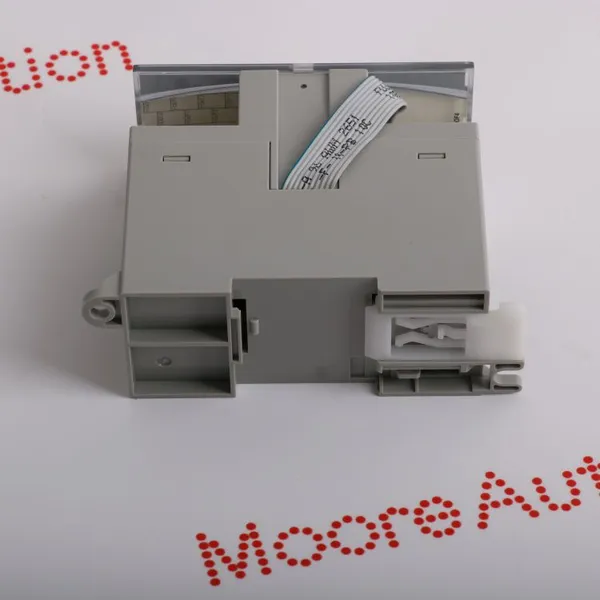

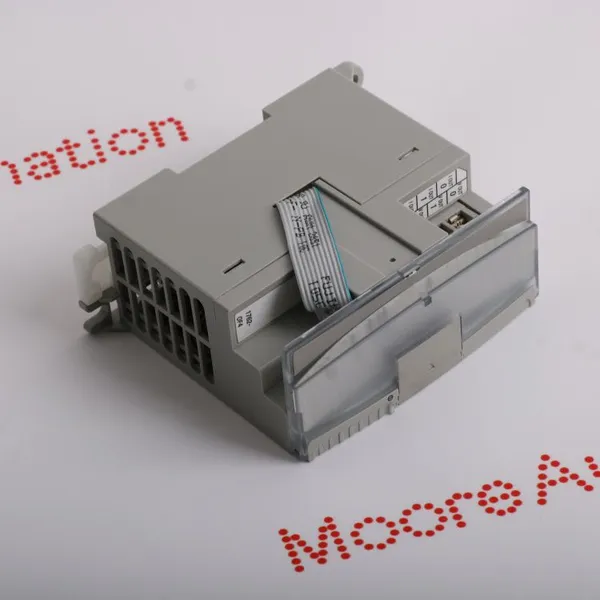

Allen Bradley1762-OF4

MOORE AUTOMATION is your reliable partner

❖Condition:Brand new, sealed in original packaging

❖Warranty: 12 months coverage on all new and refurbished components

❖Payment: Full payment via T/T in advance for all stocked items prior to dispatc

❖Certificate: Certification details available upon request

❖Delivery: Ready to ship immediately – fast worldwide delivery via DHL, UPS, FedEx, or TN

Our sales is always here for your inquiry

➪Mobile:+86 18950128464 (whatsapp)

➪E-mail:sales5@askplc.com

➪Wechat:+86 18950128464

Specification

Channels: 4 single-ended analog outputs

Output Signal Range: ±10 V DC, 0–10 V DC, 0–20 mA, 4–20 mA

Resolution: 14-bit (13-bit plus sign)

Load Impedance: 1 kΩ minimum (voltage), 0–550 Ω (current)

Accuracy: ±0.5% full scale at 25 °C

Conversion Rate: 2.5 ms per channel (nominal)

Power Supply Voltage: 24 V DC

Power Consumption: 3.2 W max

Backplane Current Draw: 50 mA @ 5 V DC, 130 mA @ 24 V DC

Isolation Voltage: 30 V AC (functional, tested at 720 V AC)

Operating Temperature: 0–55 °C (32–131 °F)

Storage Temperature: -40–85 °C (-40–185 °F)

Relative Humidity: 5–95% non-condensing

Mounting: DIN rail or panel mount (MicroLogix system)

Dimensions: 90 x 40 x 87 mm (3.54 x 1.57 x 3.43 in.)
