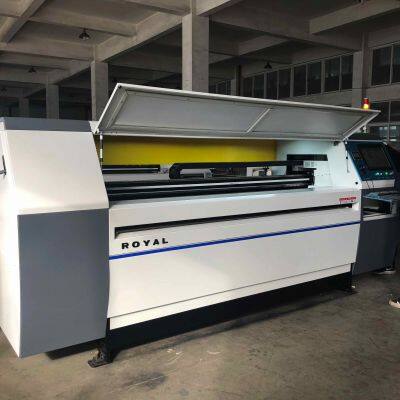

RYEP-E-25F4 Digital Press for Corrugated paperboard
Introduction:
RYEP-E-25F4 Digital press is mainly used for Packaging and printing industry, Suitable for Flute A,B,C,E corrugated paperboard, honeycomb paperboard, thin wood, etc. No need printing plate, mainly used for small batches production.
Characteristics:
1) Fast Printing: The new design with 6 or 8 printing heads realized the continuous production by 1Pass, the speed is high.
2) Automatic feeding: Optimization of control action program, continuous delivery of paper without waiting, printing process is smooth and fast.
3) No Printing plate: With computer drawings, 0 cost for plate.
4) No plate adjust: Control fast change by computer program, no print paperboard waste.
5) No color adjust: Professional software processing, four color automatic color stack printing.
6) No need clean work: Full closed automatic ink supply system and zero discharge of wastewater in the process of spray printing.
7) Controllable ink dot: use automatic control system to control jet ink , to achieve gradient color more realistic.
8) Energy saving and consumption reduction: low cost, low energy consumption, no noise production. The cost is about USD0.005 per square meter, the cost of full plate color printing ink is about USD0.05 per square meter, and the power consumption of the whole machine is not more than 3 kilowatts.
9) Simple operation: Computer program control, automatic height measurement, paper delivery, low manpower cost.
10) Bit working area: flat sheet feed, spray printing, maximum paper for 2500mmX5000mm or longer.
11) Min. order is one piece print: the start and print, the real solution to the sample, the supplement, the emergency list and the small volume carton orders.
12) Fast change: a lot of orders can be choreographed at a time to achieve zero time change.
13) Network control: convenient enterprise to production statistics and supervision and manufacturer remote technical support.
Main Technological Parameters:
Type. |
RYEP-6/8E-25F4 |
RYEP-16E-25F4-ELFS |
Printhead quantiry |
6/8 /16piece |
|
Feeding width |
2500mm |
|
Printing area |
2400mm*2000mm |
|
Color type |
C，M，Y，K, |
|
Printhead model |
EPSON i3200 |
|
Printing efficiency |
1PASS the highest 700 m2/hour （without feeding and idle time） |
|
Print precision |
Min 360*600 DPI |
|
Corrugated thickness |
Between 2mm~16mm |
|
Feeding mode |
Negative pressure adsorption belt |
Lead-edge feeder with Negative pressure adsorption belt |
Graphics Format Support |
JPG、BMP、TIF |
|
Control system |
Digital-printing control system from LeiPeng intelligent Technology |
|
Ink-provide |
Automatic two levels supply, Fully enclosed ink supply channel efficiency. |
|
Print head cleaning system |
Automatic ink stack suction cleaning |
|
Work environment |
15-45℃ indoor, temperature , Humidity 50-70% |
|
Warranty |
12 months for the print head, 1 year for the machine. |
|
Operate system |
Win7/ Win10 system 64-bit operating system |
|
Power supply |
≤ 6KW , AC 220V±10%,50-60Hz |
|
Machine size |
4320*2600*1800mm |
|
Weight |
Net weight: 2300KG |
|
