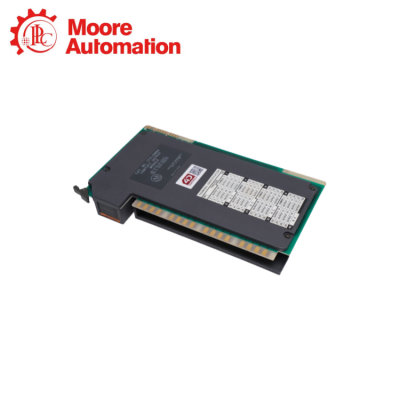

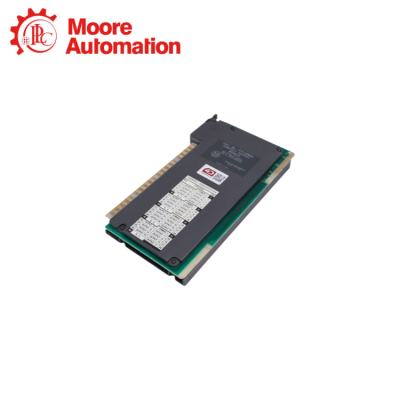

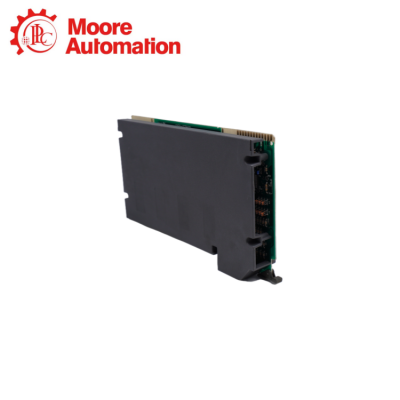

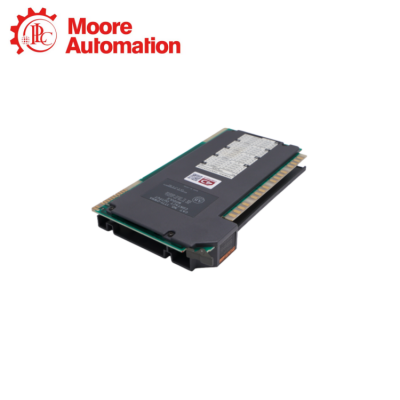

Allen Bradley1771-OWN

Company Profile

▶MOORE has been a trusted name in the industrial automation supply field for over 20 years.

▶ As a dependable source for automation components, we have steadily broadened our product selection, expanded our global network of customers, and earned recognition across the industry.

▶ Our continued success is built on a strong foundation of quality, reliability, and dedication to customer satisfaction.

▶ From rare and discontinued parts to everyday automation needs, MOORE delivers expertise, outstanding service, and reliable warranty support, setting us apart in the market.

Specification

Type: PLC Output Module, Relay Output

Channels: 8 Form C relay outputs

Voltage Range: 5–250 V AC / 5–220 V DC

Output Current: 2 A per channel (resistive load), 16 A max per module

Voltage Drop: ≤1.5 V AC/DC across closed contacts

Off-State Leakage: 0 mA (mechanical relay isolation)

Surge Current: 4 A for 10 ms per channel

Signal Delay: 10 ms (On), 10 ms (Off)

Power Dissipation: Approx. 3.6 W

Backplane Current: 300 mA @ 5 V DC

Operating Temperature: 0–60 °C

Mounting: 1771 I/O chassis

Features: Relay isolation, field-to-logic isolation, suitable for high-power loads
