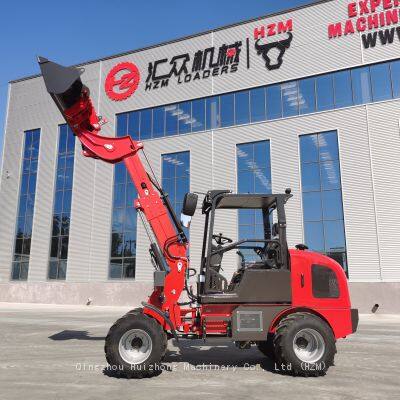

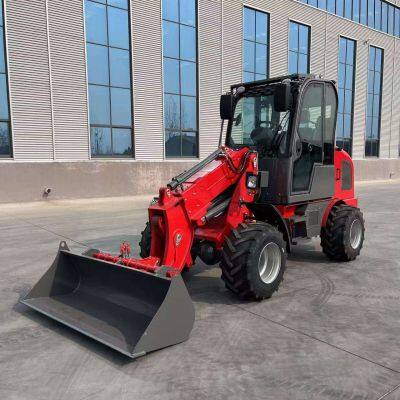

Help CenterChinese Manufacturer HZM 811T 810BT 1000kg Small 4 Wheel Shovel Loader Front End Telescopic Loader
Related Products
-
Hot Selling HZM 811T 810BT 1ton Small Tractor Telescopic Boom LoaderUS$ 10200 - 10800MOQ: 1 Unit -
HZM810BT Mini Wheel Loader for Sale With Euro5 Engine LoadersUS$ 10200 - 10800MOQ: 1 Unit
-
Euro Design HZM10BT HZM811 Hydrostatic Front End Articulated Wheel Loader for SaleUS$ 10200 - 10800MOQ: 1 Unit
-
Euro5 Chinese Construction Machinery Mini Wheel Loader HZM811 HZM810B in EuropeUS$ 8500 - 9000MOQ: 1 Unit
-
Chinese Manufacturer HZM 811 810B 1000kg Small 4 Wheel Shovel Loader Front End Bucket LoadersUS$ 8500 - 9000MOQ: 1 Unit
This small wheel loader with compact design,equipped Xinchai or Yunnei E5 powerful engine ,Euro quick hitch connect different euro size attachments convenience. Electric joystick button control better driving for the machine,811T offer customer a economic option for daily work
Whole drive system | Hydraulic system(torque converter) | |
Specification | Overall weight (kg) | 2800 (with cab) |
2550 (with roll bar) | ||
L×W×H(mm) | 4800×1520×2420 | |
Rated bucket capacity(m3) | 0.5 | |
Rated load(kg) | 1000 | |
Dump height (mm) | 3227 | |
Dump distance(mm) | 1372 | |
Wheel base(mm) | 2173 | |
Thread(mm) | 1175 | |
Total time(s) | 8 | |
Engine | Standard Model | ChangchaZN390 （Xinchai490 Euro 3 36.8Kw） （ Yunnei Euro 5） |
Type | Direct injection, Horizontal, Water-cooled, 3 stroke | |
Rated power(KW) | 25 | |
Rated speed(r/min) | 2400 | |
Steering system | Max. turning angle | 40 |
Min turning radius(mm) | 3800-4200MM | |
Hydraulic system | Working pressure | 16Mpa |
Boom lifting time | 4.2S | |
Tank capacity | 30L | |
Stand bucket | Width (mm) | 1600 |
Send Inquiry to This Supplier
