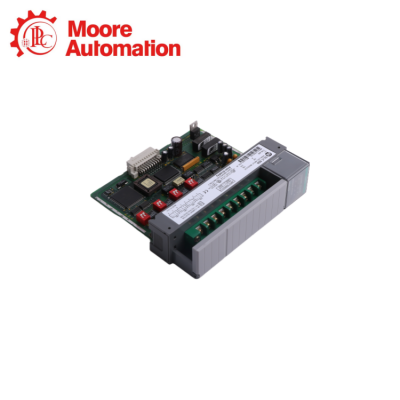

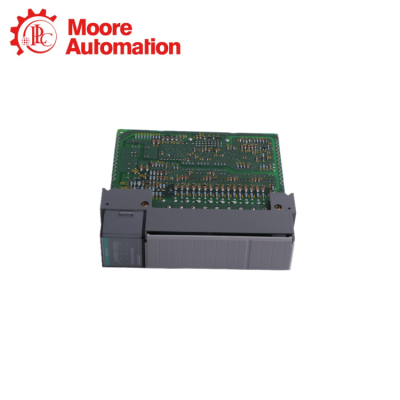

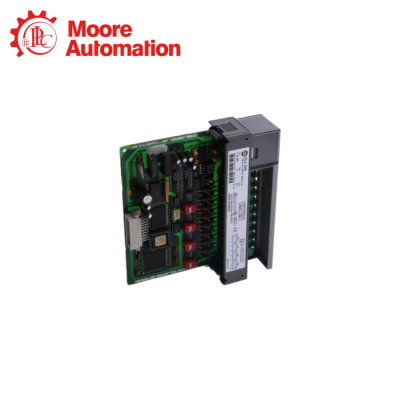

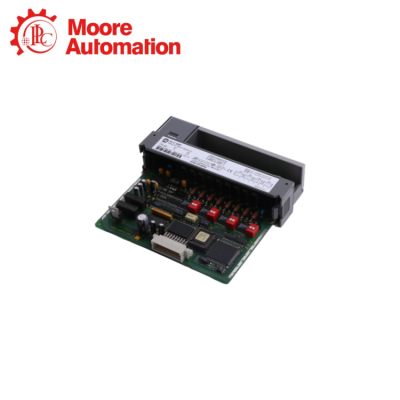

Allen Bradley1746-NI8

Professional foam protecting packaging to ensure no damage during global transportation

Promptly reply within 24 hours

Variety of discontinued products

E-mail :

sales5@askplc.com

Wechat :

189501258464

Backplane Current (5 Volts)

200 milliamps

Inputs

1746-NI4

Backplane Current (24 Volts DC)

100 milliamps

Input signal Category

-20 to +20 mA (or) -10 to +10V dc

Bandwidth

1-75 Hertz

Input Filter Frequencies

1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz, 50 Hz, 75 Hz

Update Time

6 milliseconds

Chassis location

Any I/O module slot except slot 0

Resolution

16 bits

Backplane Current

(5 Volts) 200 mA;(24 Volts DC) 100 mA

Step Response

0.75-730 milliseconds

Conversion type

Successive approximation, switched capacitor

Applications

Combination 120 Volts AC I/O

Input Types, Voltage

10V dc 1-5V dc 0-5V dc 0-10V dc

Backplane Power Consumption

14 Watts Maximum

Input Type, Current

0-20 mA 4-20 mA 20 mA 0-1 mA

Input Impedance

250 Ohms

Data Format

Engineering Units Scaled for PID Proportional Counts (-32,768 to +32,767 range), Proportional Counts (User Defined Range, Class 3 only). 1746-NI4 Data Form

Cable

1492-ACABLE*C

LED Indicators

9 green status indicators one for each of 8 channels and one for module status

Thermal Dissipation

3.4 Watts

Wire Size

14 AWG

UPC

10662072678036

UNSPSC

32151705
