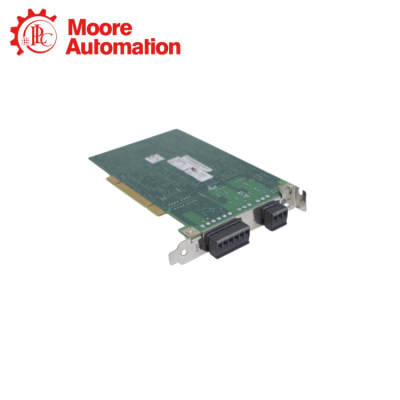

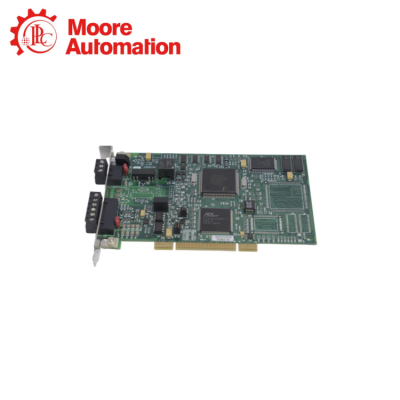

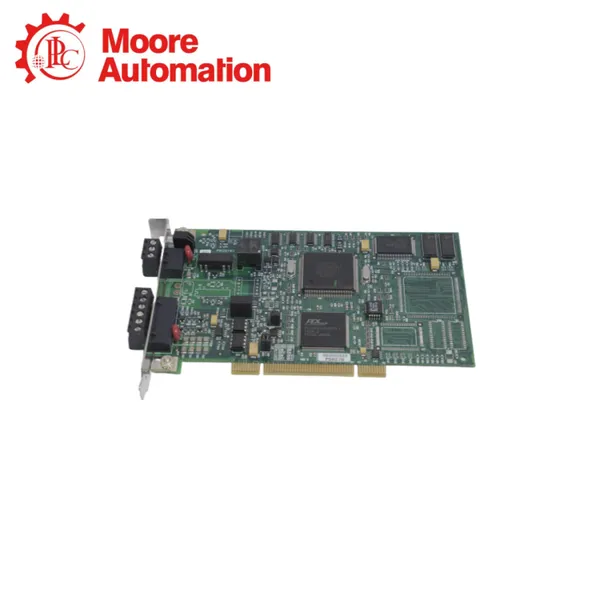

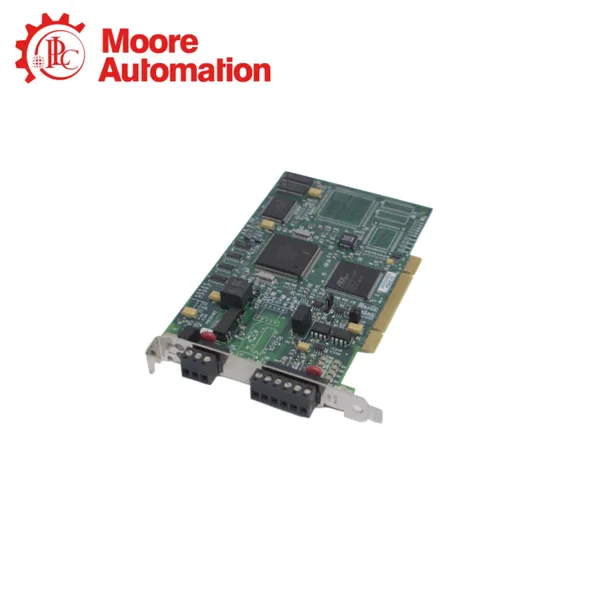

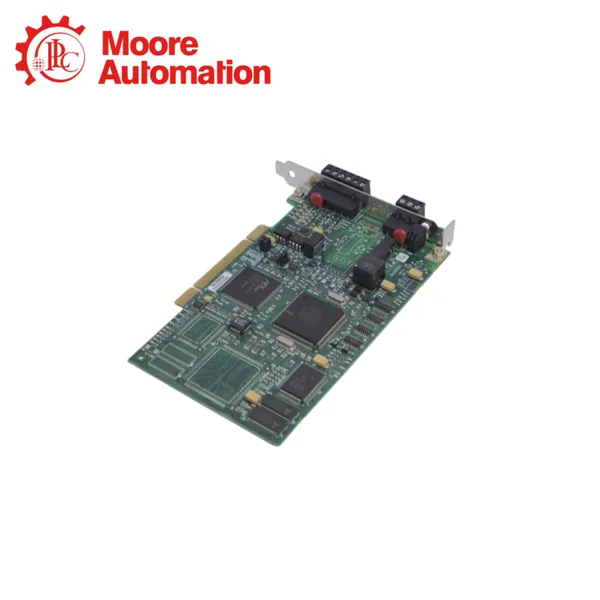

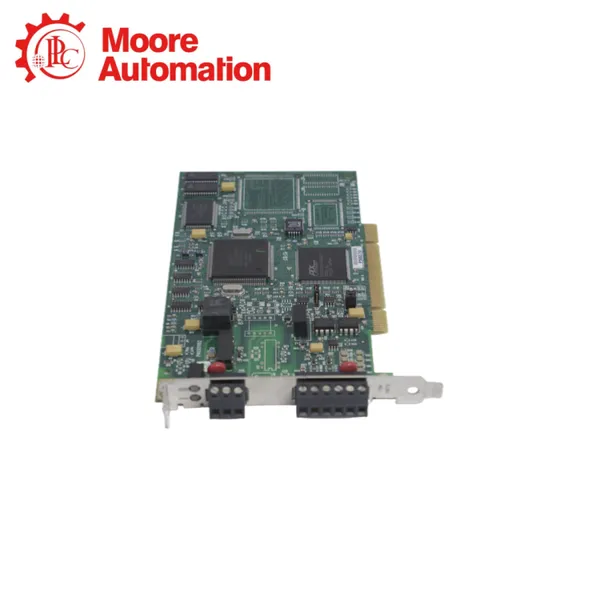

Allen Bradley1784-PKTX

Xiamen Amikon Limited

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Trading Company

Year Established:

2004

Factory Size:

5,000-10,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Pls contact us and tell us your requirement

Mobile: +86 18950128464 (whatsapp)

E-mail: sales5@askplc.com

Wechat: 18950128464

Product Parameter

Description	Network Interface card
Communication Protocol:	Data Highway Plus (DH+); Remote I/O (RIO); DH-485
Communication channels:	Channel 1A: DH+ / RIO Channel 1C: DH-485
PCI port:	PCI 2.3 compliant
Compatible controllers:	PLC-5, PLC-5/250, and SLC 5/04 processors, and SLC 5/01, SLC 5/02, and SLC5/03 processors (only via 1785-KA5)
Remote I/O scanner:	Supported
DH+ / RIO Maximum cable and communication:	10,000 ft. (3048 m) @ 57.6K bit/s 5, 000 ft. (1,524 m) @ 115.2K bits/s 2,500 ft. (762 m) @ 230.4K bits/s
DH-485 maximum cable and communication:	4,000 ft. (1219 m) @ 1200, 2400, 4800, 9600 or 19,200 bits/s
Status LEDs:	1 diagnostic/status LED per channel
Number of modules per system:	Four (4)
Product Line	Allen Bradley PLC 5
Module Type	Bus Communication Card
Wiring Arm	1771-WN
Required External Power	None
Max Modules Per System	4
Bus Communcations	Local PCI 2.3 Compliant
LEDs	1 Diagnosis/Status Per Channel
Dimensions	4.5 x 12.4 x 6.3 inches (115 x 317 x 160 millimeters)
Weight	0.3 lbs (0.1 kg)
Coating	Conformal Coat
Typical AC Signal Delay (Off)	29 (+/- 8) ms
Typical DC Signal Delay (Off)	30 (+/- 7) ms
Channels	1A 3-Pin Phoenix for DH+ & Remote I/O, 1C 6-Pin Phoenix for DH-485
DH+/DH-485/RIO	Yes
