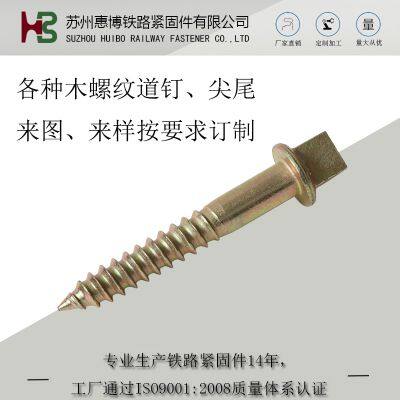

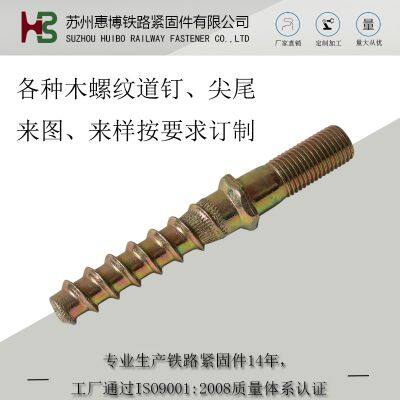

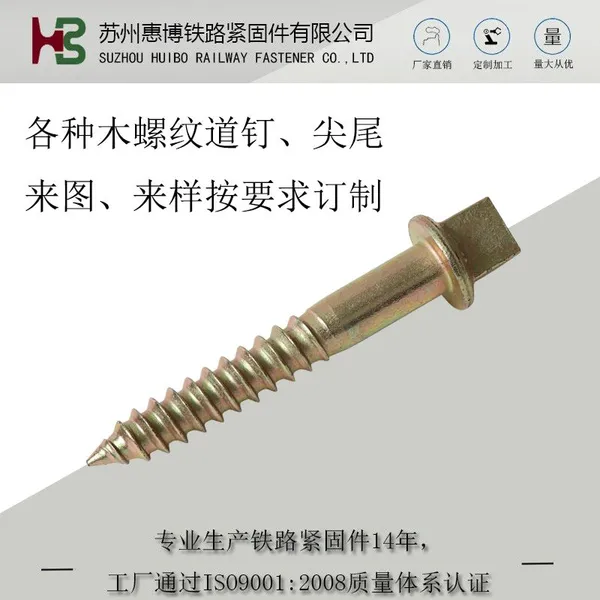

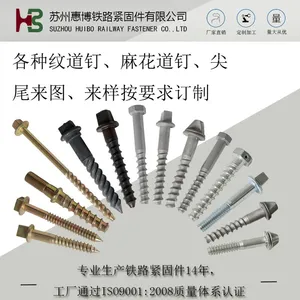

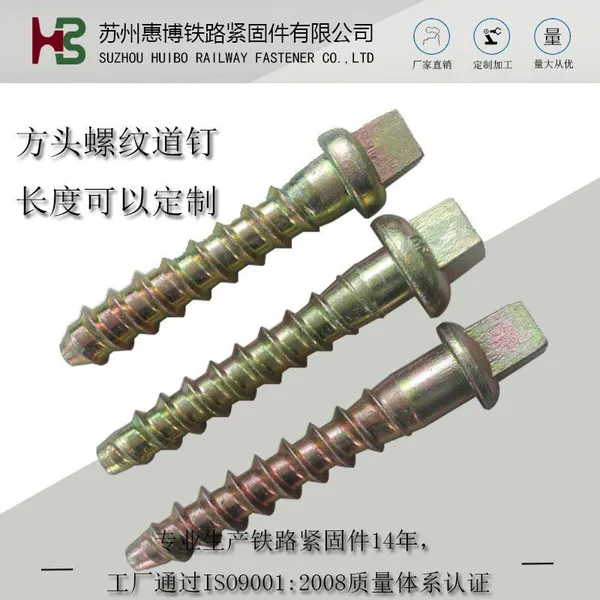

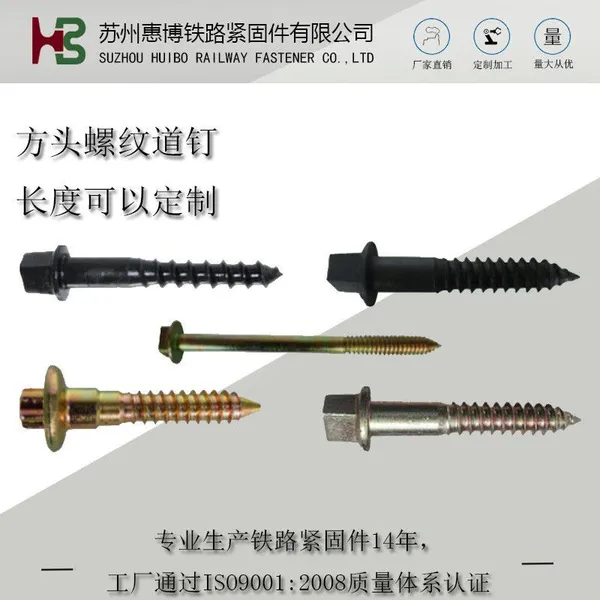

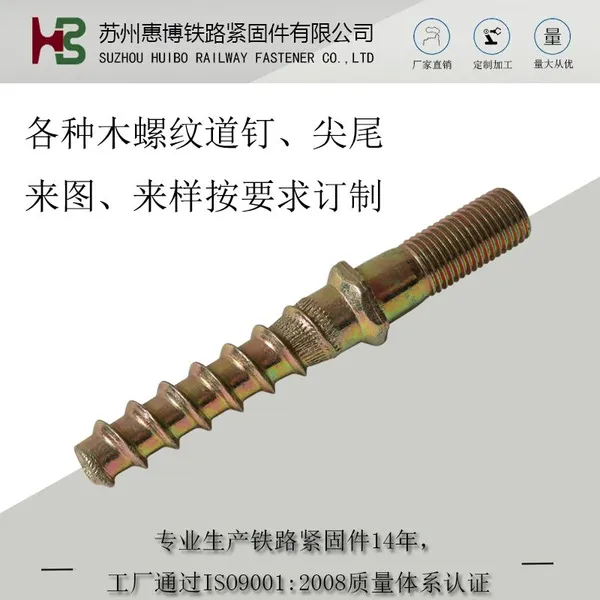

Railroad Fasteners Screw Spikes Square Rectangular Hex and Dome Heads Spikes Dog Spike Ss25 Ss8 DHS35 Sdu9

Suzhou HuiBo Railway Fastener Co.,Ltd is an expert of manufacturing track fasteners, located in Changshu, China, close to Shanghai. Our company ranks a leading position in this industry, awarded with SGS-ISO9001:2008 quality system certificate and CRCC certification, which is the highest honor of Chinese Railways. HuiBo Railway was established by an elite team coming from a state-owned enterprise, with high-class technical research and development, production management and quality control.

We followed standards like AREMA, DIN, BS, UIC, GOST, NF, JIS, GB etc., and also provides such as E clip fastening system, SKL (W) Tension clip system, Nabla fastening system, KPO clamp plate system, crane rail system etc. Meanwhile, we are able to customize products as per your samples or drawings. There are four major of our product categories, as follows:

A) Rail Spike Series: Screw Spike, Dog Spike, Elastic Spike etc., annual capacity 7,000 tons.

B) Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt,Turnout Bolt,
　　Fish Bolt, T bolt etc., annual capacity 5,000 tons.

C) Rail Clip series: Nabla Clip, Elastic Clip, SKL Tension Clamp, O Clip, Gauge Lock Clip etc., annual
　　capacity 4 million pieces.

D) Other materials and accessories: Clamp plate, Gauge Insulator, Rubber Pad, Fish plate, Nut, Plastic
　　Dowel, Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, Gauge Rod etc., annual
　　sales far more than 13 million pieces.

Track Spike, Dog Spike, Rail Spike

•           The dog spike is used to fasten T-shaped rail road track to wooden ties, which has an L-shaped head and square shank, and the underside of whose head is sloped to fit the top surface of the rail base. Spikes with various sizes are provided to meet the different requirements of penetrating length of spikes. The common track spikes are the 5/8”*6” and the 9/16”*5-1/2” for smaller rail sections, and they are usually secured in either 200 lb. kegs or 50 lb. kegs.

Lock Spike

•           The Tie Plate employ spring compression to hold tie plates firmly in place on cross ties and bridge timbers. They can be driven with standard track tools. Spikes are placed on the diagonally opposite hold-down holes of the tie plate and driven in prebored holes in the tie. Holes of 9/16 in. diameter are drilled to a depth of 7 in. below the top of the tie plate. Spikes are available in 6 in. or 7 in. lengths.Two lock spikes normally are used in conjunction with two standard cut spikes in each tie plate.

Elastic Rail Spike

•           The development of a simple and economical fastening for use with flat-bottom rail resulted in development of the elastic rail spike.This provided a simple and economical fastening for use with flat-bottom rail on wood sleepers.The lockspike baseplate fastening, which is an alternative to the elastic rail spike, is a simple one-piece spring spike designed specifically to secure baseplates to wood sleepers.It fills the hole in the baseplate by spring action in a lateral direction, and holds the track gauge secure with the baseplate fixed firmly to the sleeper

• The different kinds of Sleeper Screws,Track Spike, Lock Spike and Elastic Rail Spikes are HuiBo Railway's conventional products, our production capacity reached to 1,200Tons each month ,all for exporting ! We monthly and annually produced and shippedto the clients worldwide !
