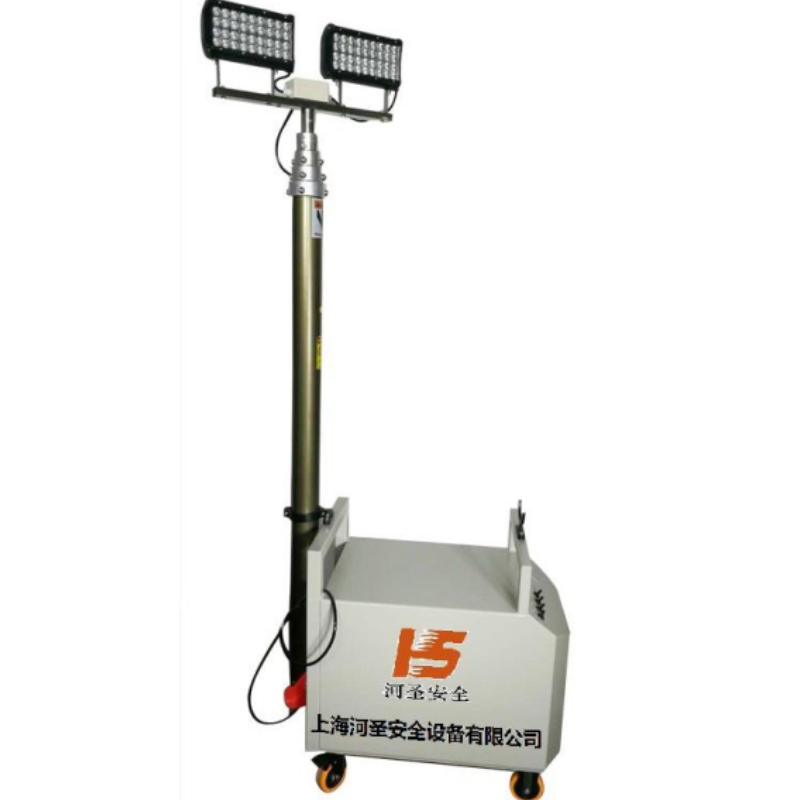

All-terrain Wheels Mobile Lighting Tower Mobile Led Light Tower Mast 2×150W Rechargeable Outdoor Light Tower

Mobile Lighting Tower - 2×150W Rechargeable - Hesung Safety / YDC-45-2150F Technical Specifications1. Lighting System

• Light Configuration:

• 360° horizontal rotation and 180° vertical tilt (pitch) for precise beam targeting.

• Individual lamp adjustment: Each of the 2 LED heads can be independently directed to different angles for multi-directional illumination.

• Unified beam alignment: Both lamps can be focused in the same direction for concentrated, long-distance lighting.

• 2×150W energy-efficient LED lamps mounted on a single adjustable panel.

• Flexible orientation:

• Full 3D adjustability:

• Illumination Performance:

• Single-lamp luminous flux: 15,000 lumens (lm) per 150W LED.

• Total luminous output: 30,000 lm (2×15,000 lm), ensuring high-intensity coverage.

• LED lifespan: >10,000 hours, minimizing replacement frequency and maintenance costs.

• Lighting Coverage:

• Effective illumination radius: 30–50 meters, suitable for medium-scale outdoor areas.

2. Power System

• Battery Options:

• AC mains charging (standard 110V/220V input).

• Optional solar charging compatibility (for extended off-grid use, if specified).

• 100Ah battery: Approximately 5–8 hours (at full load, 300W total).

• 200Ah battery: Approximately 10–16 hours (at full load, 300W total).

• 100Ah or 200Ah rechargeable battery pack (deep-cycle, lithium-ion or AGM, depending on model).

• Estimated runtime:

• Charging method:

3. Mast and Deployment

• Pneumatic Telescoping Mast:

• Maximum deployment height: 4.5 meters (vertical extension from base).

• Height adjustability: Allows fine-tuning of light projection distance and coverage area.

• Actuation Methods:

• Electric or manual air pump for rapid mast elevation/retraction.

• Wireless remote control: Enables 30-meter range operation for safe, convenient adjustments.

4. Control and Operation

• Dual Control Modes:

• Onboard control panel: Features physical buttons for manual lamp activation/deactivation and mast adjustment.

• 50-meter wireless remote control (enhanced range for flexible operation).

• Individual Lamp Control:

• Each lamp can be controlled independently (e.g., one lamp on while the other is off).

5. Structural and Environmental Features

• Robust Construction:

• Weather-resistant design: Built to withstand outdoor conditions (IP65 rating recommended for dust/water resistance, though not explicitly stated).

• Sturdy tripod base: Ensures stability on uneven terrain.

• Portability and Setup:

• Compact folded design for easy transportation via trailer or vehicle.

• Quick deployment: Mast and lighting unit can be set up in minutes without specialized tools.

6. Key Applications

• Construction Sites: Nighttime roadwork, building renovations, and equipment maintenance.

• Emergency Services: Power outage response, temporary shelter lighting, and disaster relief.

• Outdoor Events: Camping, sports venues, concerts, and festivals.

• Industrial & Commercial: Warehouse lighting, parking lot illumination, and security patrols.

7. Technical Summary

8. Conclusion

The Hesung Safety YDC-45-2150F Mobile Lighting Tower is a versatile, high-performance, and eco-friendly solution for temporary illumination needs. Its standout features include:
 30,000-lumen output with 360°/180° adjustability for precise, multi-directional lighting.
 Dual battery options (100Ah/200Ah) for flexible runtime management.
 4.5m pneumatic mast with wireless remote control (30–50m range) for effortless setup.
 Independent lamp control to customize illumination zones.
