Bently Nevada 330104-08-14-05-01-00 Proximity Probe

Basic info of this item

Brand: Bently Nevada

Manufacturer P/N: 330104-08-14-05-01-00

COO: USA

Shipping from: Xiamen city, Fujian Province

Condition: Brand new

Warranty: 12 months

MOQ: 1 PC

Technical Details of 330104-08-14-05-01-00

File 1 – Intrinsically Safe (ia)

Class I, Zone 0: AEx / Ex ia IIC T5…T1 Ga

Class I, Groups A, B, C, D (when installed per conditions)

Class II, Groups E, F, G (when installed per conditions)

Class III applicable

Protection method: intrinsically safe zener barriers per drawing 141092 or galvanic isolators

Refer to Temperature Schedule table for exact T-rating

File 2 – Non-incendive / Increased Safety (nA, ec)

Class I, Zone 2: AEx / Ex nA IIC T5…T1 Gc

Class I, Division 2, Groups A, B, C, D

Class I, Zone 2: AEx / Ex ec IIC T5…T1 Gc

Class I, Division 2, Groups A, B, C, D

Installation: non-incendive circuit connected per drawing 140979

Refer to Temperature Schedule table for exact T-rating

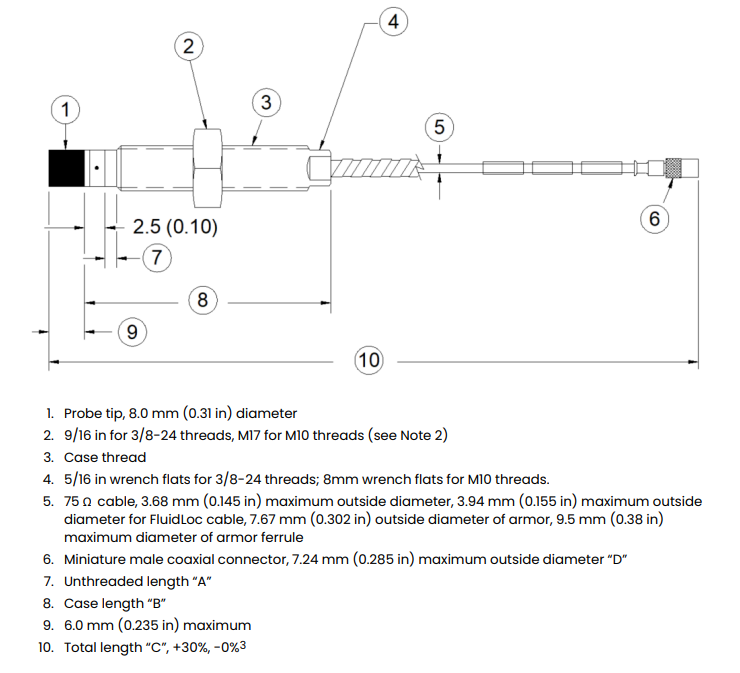

File 3 – Probe & Cable Data

Probe Case Torque – Maximum: 33.9 N·m (300 in-lbf)

Probe Case Torque – Recommended: 11.2 N·m (100 in-lbf) for standard forward-mounted probes

Standard forward-mount probes (first three threads): max 22.6 N·m (200 in-lbf), recommended 7.5 N·m (66 in-lbf)

Reverse-mount probes: max 22.6 N·m (200 in-lbf), recommended 7.5 N·m (66 in-lbf)

Extension Cable – Standard: 75 Ω triaxial, FEP-insulated fluoroethylene propylene

Extension Cable – Extended Temperature: 75 Ω triaxial, PFA-insulated perfluoroalkoxy

Minimum cable bend radius: 25.4 mm (1.0 in)
