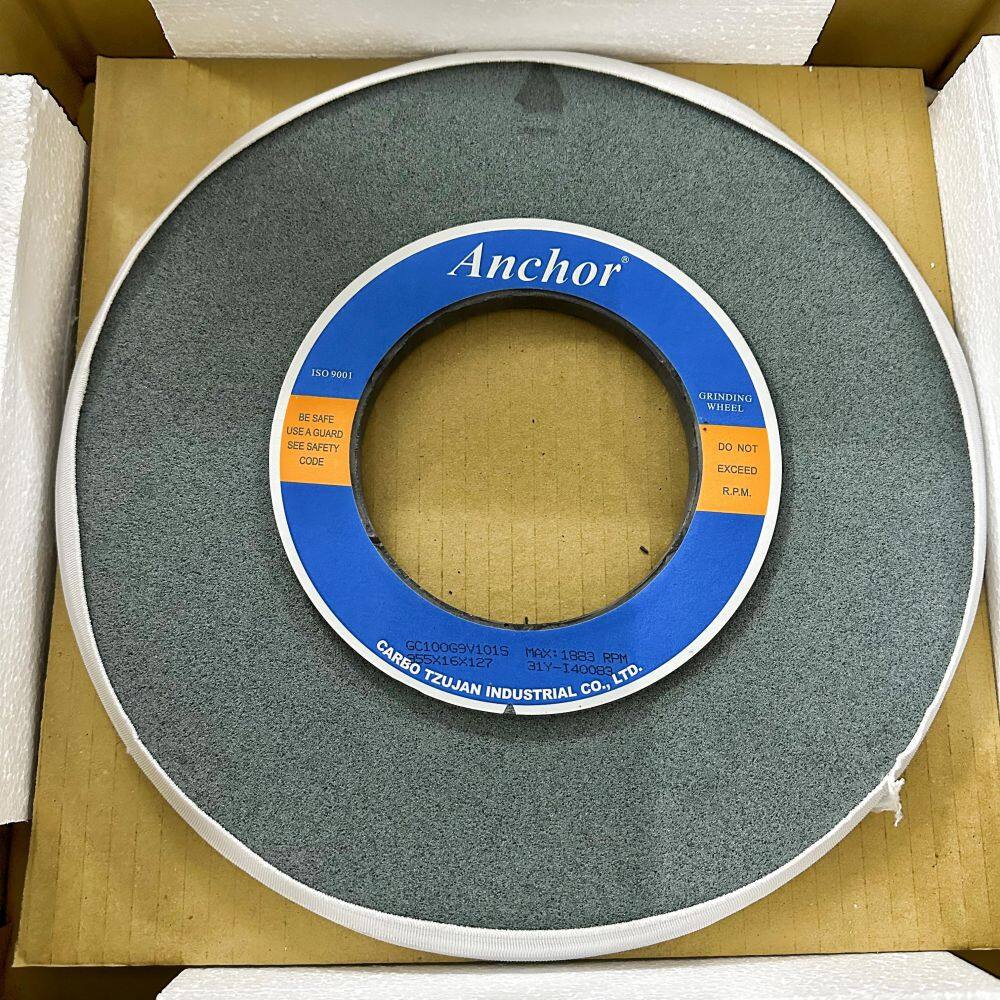

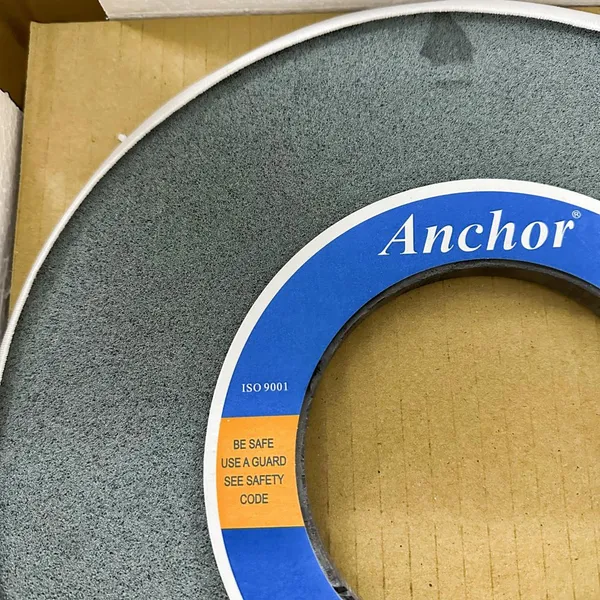

Anchor Taiwan Genuine GC Green Silicon Carbide Grinding Wheel for Linear Guide & Cylindrical Grinding - Product Introduction
As the authorized Tier-1 distributor of Anchor Taiwan, we proudly present this premium GC Green Silicon Carbide Grinding Wheel, specially engineered for high-precision linear guide rail grinding and cylindrical grinding of stainless steel. Manufactured with high-purity GC abrasives (SiC ≥99%) and Anchor’s proprietary bonding technology, this industrial-grade wheel delivers exceptional cutting performance and surface finish quality for demanding machining applications.
Key Features & Benefits:
✅ Superior Abrasive Quality – High-grade GC (Green Silicon Carbide) ensures excellent hardness and sharpness, ideal for grinding stainless steel, titanium alloys, and hardened materials.
✅ High Precision Grinding – Achieves Ra 0.2-0.4μm surface finish, perfect for linear guide rails, ball screws, and precision shafts.
✅ Optimized Heat Resistance – Special bond formulation minimizes thermal deformation and workpiece burning, even at high speeds (up to 60m/s).
✅ Longer Wheel Life – 30% longer lifespan compared to conventional wheels, reducing tooling costs.
Technical Specifications:
Material: GC (Green Silicon Carbide)
Grit Size: 80# / 100# / 120# (custom options available)
Hardness Grade: K-M (medium to hard)
Max. Operating Speed: 60m/s
Balance Quality: G6.3 (high dynamic stability)
Typical Applications:

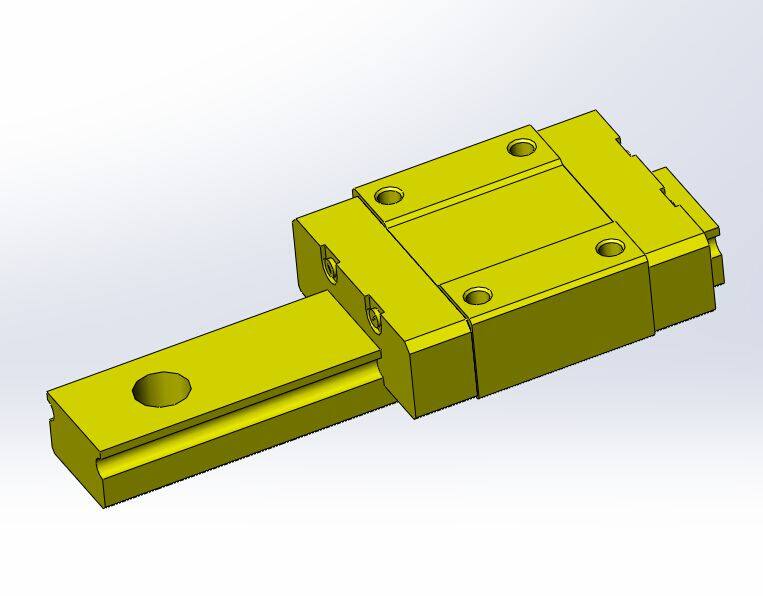

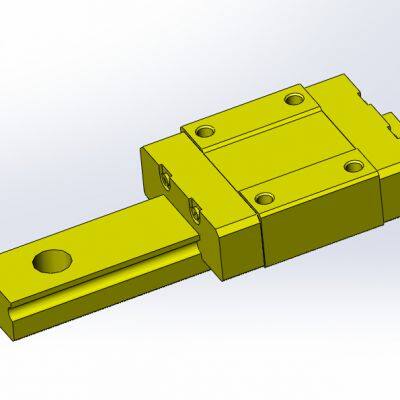

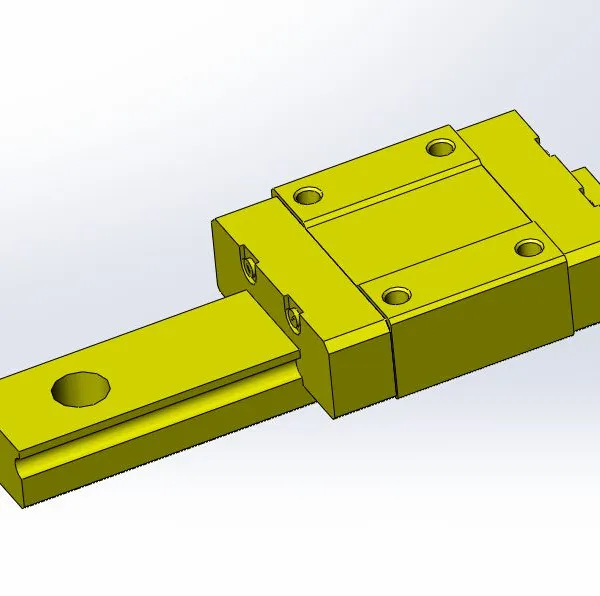

✔ Linear guide rail grinding (HIWIN, THK, NSK standards)
✔ Stainless steel shafts & rollers (medical, automotive, aerospace)

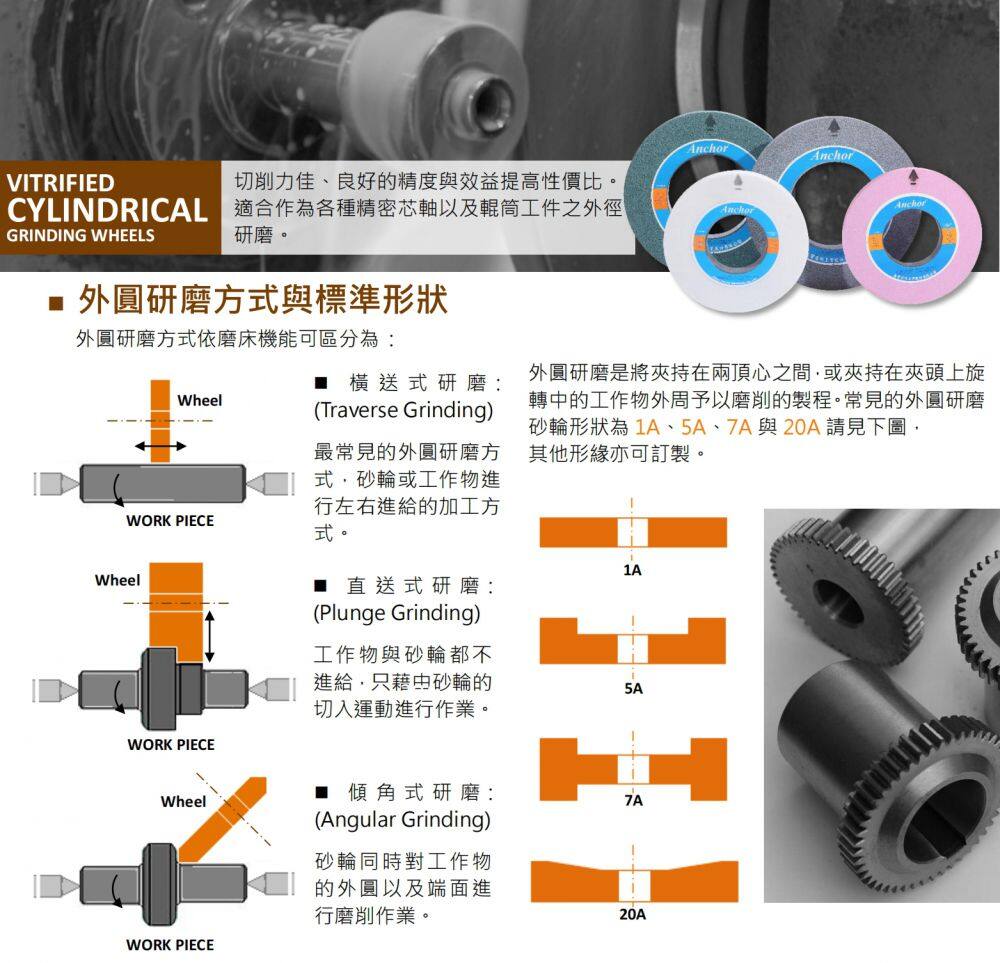

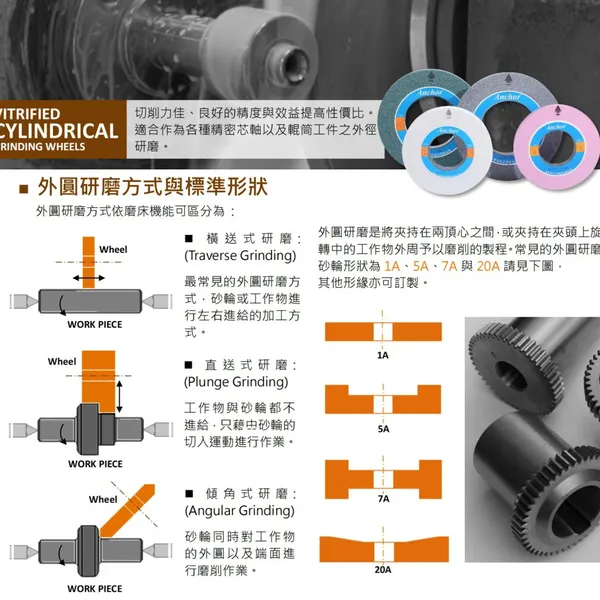

✔ Precision cylindrical grinding (bearing races, hydraulic components)
Why Choose Us?
✔ 100% Genuine Anchor Taiwan Products – Full manufacturer warranty & quality assurance.
✔ Technical Support – Expert guidance on wheel selection & grinding parameters.
✔ Custom Solutions – Available in various sizes, grits, and bond specifications.
✔ Fast Global Delivery – Stock availability for urgent orders.
Trusted by leading manufacturers worldwide, Anchor Taiwan’s GC Green Silicon Carbide Grinding Wheels set the benchmark for precision, durability, and performance. Contact us today for technical consultation and competitive pricing!
