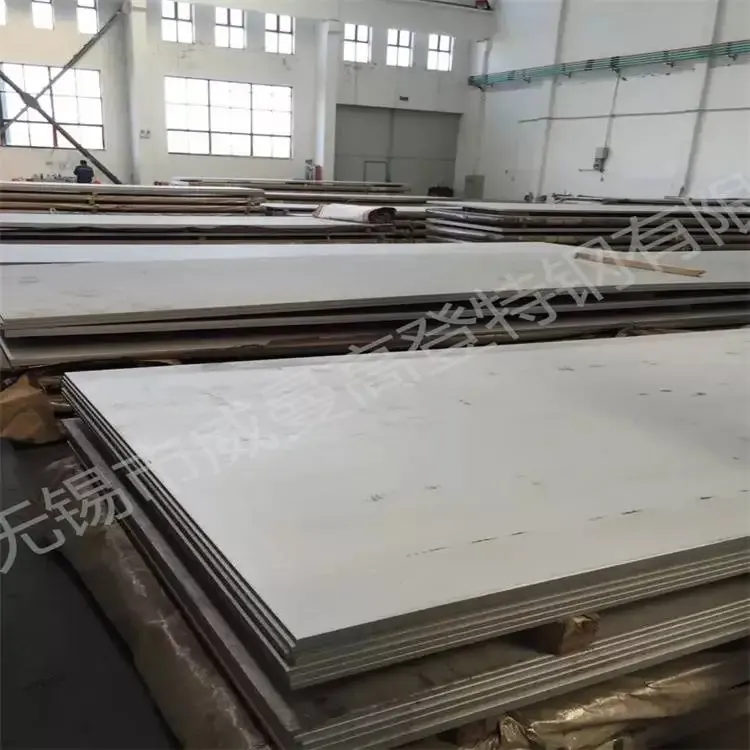

Our company offers a diverse inventory of both imported and domestically produced 317L (00Cr19Ni13Mo3) stainless steel plate materials. These plates are crafted to meet the highest standards of quality and performance, making them suitable for a wide range of applications in various industries around the world.
The 317L stainless steel, also known as 00Cr19Ni13Mo3, is a low - carbon version of 317 stainless steel. This grade contains a balanced composition of chromium (Cr), nickel (Ni), and molybdenum (Mo). The chromium content provides excellent corrosion resistance, forming a passive oxide layer on the surface of the plate that protects it from oxidation and rust. The nickel enhances the toughness and ductility of the material, while the molybdenum further improves its resistance to pitting and crevice corrosion, especially in chloride - containing environments. The low carbon content reduces the risk of carbide precipitation during welding, ensuring the integrity of the welded joints.
We source our materials from top - notch suppliers, and they are produced using advanced hot - rolling and cold - rolling techniques. Hot rolling is a process where the steel is heated above its recrystallization temperature and then passed through rollers to achieve the desired thickness and shape. This process results in plates with good mechanical properties and a relatively smooth surface finish. Cold rolling, on the other hand, is performed at room temperature. It is used to produce plates with higher precision in terms of thickness and a superior surface finish. Cold - rolled plates also have better flatness and dimensional accuracy, which is crucial for applications that require tight tolerances.
Density: The density of 317L stainless steel is approximately 7.98 g/cm³. This relatively high density gives the plates a substantial and sturdy feel, making them suitable for heavy - duty applications.
Tensile Strength: The minimum tensile strength of 317L stainless steel plates is around 485 MPa. This high tensile strength means that the plates can withstand significant pulling forces without breaking, making them reliable for structural applications.
Yield Strength: The yield strength is typically around 205 MPa. This indicates the stress at which the material begins to deform plastically, and the 317L plates have sufficient yield strength to maintain their shape under normal operating conditions.
Elongation: The elongation at break is usually around 40%. This high elongation percentage shows that the plates can stretch to a certain extent before fracturing, providing good ductility and formability.
Chemical Industry: Due to its excellent corrosion resistance, 317L stainless steel plates are widely used in the chemical processing industry. They can be used to construct storage tanks, reaction vessels, and pipelines for transporting corrosive chemicals such as acids, alkalis, and salts.
Food and Beverage Industry: The hygienic properties of 317L stainless steel make it an ideal choice for the food and beverage industry. It can be used to fabricate equipment such as food processing machinery, storage silos, and brewing tanks, ensuring the safety and quality of food products.
Marine and Offshore Applications: The high resistance to pitting and crevice corrosion in chloride - rich environments makes these plates suitable for marine and offshore structures. They can be used in shipbuilding, offshore oil platforms, and coastal infrastructure.
Architectural and Construction: In the architectural and construction fields, 317L stainless steel plates are used for decorative purposes, as well as for structural components. Their aesthetic appeal, combined with their durability, makes them a popular choice for building facades, handrails, and interior decorations.
We are a manufacturer with a strong commitment to quality. Our company was established in 2017, and we have a team of 11 - 20 professional sales representatives. We have an annual export volume ranging from US$5 Million - US$10 Million, and our products are sold to major markets across the globe, including North America, South America, Europe, Asia, Africa, and Oceania. We ensure that each plate in our inventory undergoes strict quality control measures, including chemical analysis, mechanical property testing, and surface inspection. Whether you need a small quantity for a specific project or a large - scale supply for an industrial application, we can meet your requirements with high - quality 317L stainless steel plate materials.
