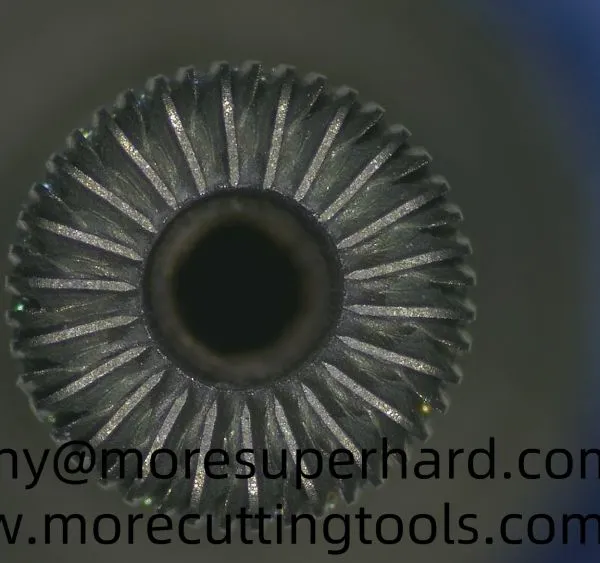

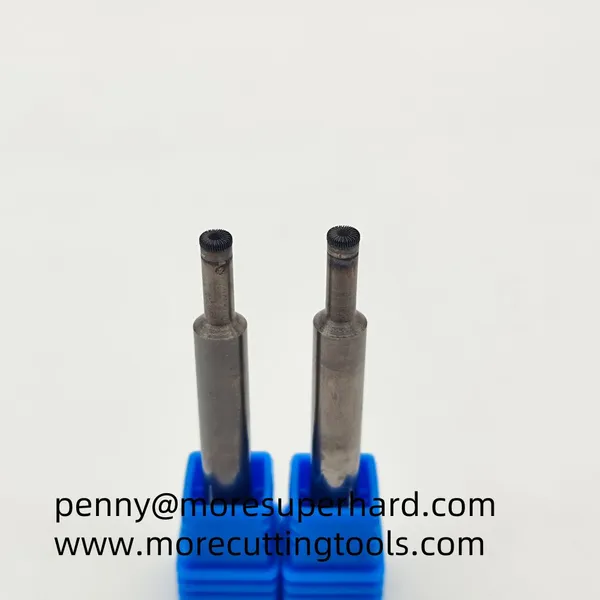

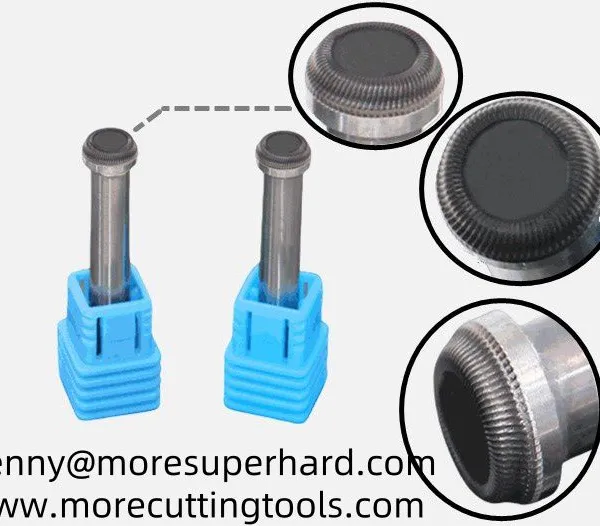

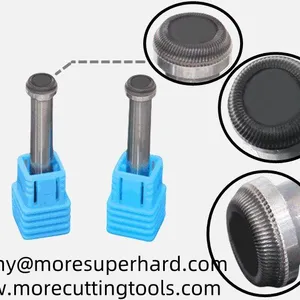

Solid PCD Micro Edge Milling Cutter, PCD Solid Multi-edged Tools
US$ 5
≥1 Blade
Key Specifications
Get Latest Price
Type:
Other
Surface Finishing:
Other
Blade Material:
Diamond
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou,
Delivery Detail:
7 days
Related Products
-
PCD Drawing Dies,ND Drawing Dies,Tungsten Carbid Wire Drawing DiesUS$ 5.5MOQ: 1 Blade -
Tungsten Carbide Inserts, Carbide Cutting Tools, CNC Carbide InsertsUS$ 4MOQ: 10 Boxes
-
PCD Circular Saw Blade, PCD Saw Blades, Diamond Tipped Saw BladesUS$ 12MOQ: 1 Blade
-
Diamond Honing Stone, Honing Stick, Honing HeadUS$ 8MOQ: 5 Blades
-
PCD Grooving Tool for PistonsUS$ 5 - 10MOQ: 1 Piece
Type
Other
Surface Finishing
Other
Blade Material
Diamond
Origin
China
Body material: Carbide
Blade material: PCD (polycrystalline diamond)
Specifications: 20~50 blades/non-standard customization
Processing materials: glass, ceramics, graphite, silicon carbide, titanium alloy, carbide
Application areas: glass contour molding, ceramic watch cases, graphite molds, and other hard and brittle materials
Specification
The PCD micro-edge cutting tool can process brittle and hard materials such as silicon aluminum, silicon carbide, graphite, carbon fiber, sapphire, ceramics, and tungsten steel, covering various high-tech and industrial application fields, with a surface roughness of Ra＜0.08μm. Suitable for finishing workpieces made of titanium alloy or aluminum alloy, etc., and can eliminate vertical cutter marks left by milling cutter processing.
PCD micro-edge cutting tools can play an important role in processing in these fields, especially when facing the processing of brittle and hard materials. In these fields, the pursuit of high precision in material processing, long tool life, and high efficiency are key.
The following are the main application areas and processing material characteristics and advantages of PCD micro-edge cutting tools:
Silicon Aluminum and Silicon Carbide
Material Characteristics:
Silicon Aluminum Alloy: Commonly used in semiconductor devices and power electronics, this material is characterized by high hardness, with silicon particles reaching up to 1000 HV. Challenges include rapid tool wear, the formation of built-up edges, and difficulties in achieving desired surface roughness.
Silicon Carbide: With a Mohs hardness of 9.5, second only to diamond, silicon carbide is both extremely hard and brittle, making it prone to cracking during machining.
Advantages of PCD Tools:
PCD micro-edge cutting tools, with their diamond-welded heads, offer unparalleled hardness, wear resistance, and low friction. These attributes make them the ideal choice for processing silicon aluminum and silicon carbide, outperforming standard PCD tools by offering superior wear resistance and precision.
