Help CenterNitrile Gearbox Gasket Oil Seal Plug End Cap China Oil Seal Supplier
Related Products
-
High Quality KDIK Oil Seal Factory End Cap Covers Seal Gearbox Oil Seal for GearboxNegotiableMOQ: 100 Pieces -
Hot Sale Heavy Truck Excavator for Hydraulic O-Ring Seals for John DeereNegotiableMOQ: 100 Pieces
-
High Quality O-Ring Orings O Rings Manufacturer Oil Seal Factory for Daf / MackNegotiableMOQ: 100 Pieces
-
Wheel Seal O-Ring for Scania Truck KDIK Oil Seal Factory From China SupplierNegotiableMOQ: 100 Pieces
-
High Performance Rubber Repair O-Ring for Volvo Modern Doosan Daewoo From China Oil Seal FactoryNegotiableMOQ: 100 Pieces

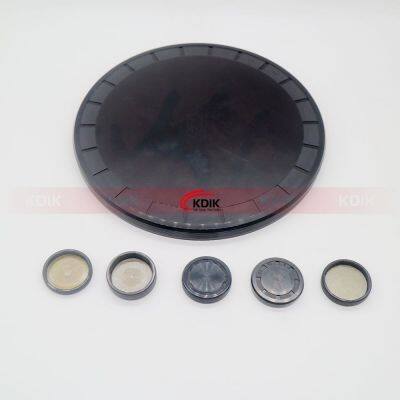

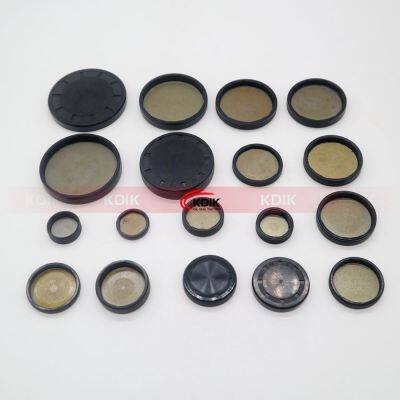

End Cap Covers Oil Seals(EC/VK/CAP):
End caps are designed for applications where the shaft does not pass through the housing wall of the bore. The end cover provides protection for the bearings. The covers are designed to fit into housing bores for rotary shaft seals. They have the same tolerances as those for the O.D. of a seal. The inner housing is carbon steel and the outer seal is nitrile rubber. It is mainly used for the orifice, the core opening and the bearing of an oil seal, which is particularly used as a substitute for an end flange or an end cover in a gear box, and the rubber layer at the outer diameter ensures the oil leakage in the oil seal seat. At the same time, it also strengthens the neatness and beauty of the cabinet.
| Catalog for End Cover Cap Seals | ||||||||
| NO. | TYPE | SIZE | NO. | TYPE | SIZE | NO. | TYPE | SIZE |
| 1 | EC | 16*6 | 21 | EC | 60*8 | 41 | EC | 100*10 |
| 2 | EC | 22*5 | 22 | EC | 60*10 | 42 | EC | 100*12 |
| 3 | EC | 24*5 | 23 | EC | 62*8 | 43 | EC | 110*10 |
| 4 | EC | 26*7 | 24 | EC | 62*10 | 44 | EC | 110*12 |
| 5 | EC | 28*6 | 25 | EC | 65*8 | 45 | EC | 115*10 |
| 6 | EC | 30*5 | 26 | EC | 70*10 | 46 | EC | 120*10 |
| 7 | EC | 32*5 | 27 | EC | 72*6 | 47 | EC | 120*12 |
| 8 | EC | 32*7 | 28 | EC | 72*8 | 48 | EC | 125*12 |
| 9 | EC | 35*7 | 29 | EC | 72*10 | 49 | EC | 130*12 |
| 10 | EC | 37*7 | 30 | EC | 75*8 | 50 | EC | 140*12 |
| 11 | EC | 40*5 | 31 | EC | 75*10 | 51 | EC | 150*12 |
| 12 | EC | 40*7 | 32 | EC | 80*10 | 52 | EC | 150*15 |
| 13 | EC | 40*10 | 33 | EC | 80*12 | 53 | EC | 145*15 |
| 14 | EC | 42*8 | 34 | EC | 85*10 | 54 | EC | 160*15 |
| 15 | EC | 45*10 | 35 | EC | 85*12 | 55 | EC | 170*15 |
| 16 | EC | 47*7 | 36 | EC | 90*7 | 56 | EC | 180*15 |
| 17 | EC | 50*7 | 37 | EC | 90*10 | |||
| 18 | EC | 52*7 | 38 | EC | 90*12 | |||
| 19 | EC | 52*8 | 39 | EC | 95*10 | |||
| 20 | EC | 55*7 | 40 | EC | 95*12 | |||
Our Advantages
1. We cooperate with first-class raw material suppliers in China and abroad, using the best raw materials. High quality NBR, silicon and FKM materials are imported from USA, Germany and Southeast Asia.
2. Top quality custom rubber products that can completely meet your needs.
3. Fast production & in-time delivery that never delay your project and usage.
4. One-stop custom service and value-added service to save your time and cost.
5. OEM/ODM Services are available. We can design and produce various Non-standard
Rubber Parts according to your PDF,3D or STEP drawing files.
6. All of rubber finished products are 100% inspected before shipment.
Xingtai Honglei Seal Manufacturing Co., Ltd. is a leading enterprise in China. our products have been tested by the Center of HEBEI Province Rubber Products Inspection. All the performance indicators meet the industry standards. Xingtai Honglei Seal Manufacturing Co., Ltd. registered trademark "KDIK" is senior manufacturer for global markets. We are professional oil seals factory with more than 18 years experience. Our main product lines include: Automobile oil seal, Agricultural & Construction machinery oil seal, Wheel hub oil seals for tractors, Valve Stem Seals, Precision Rubber Parts, O-rings. Our Products are widely used in coal mines, oil fields, electric power, ships, automobiles, locomotives, construction machinery, agricultural machinery and other industries.
