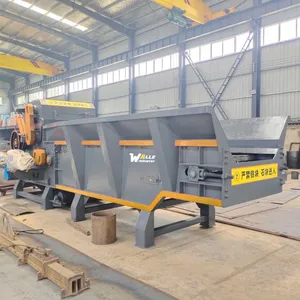

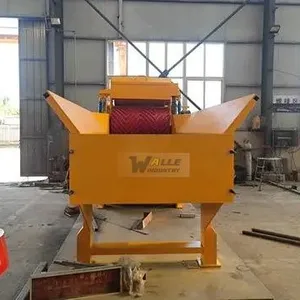

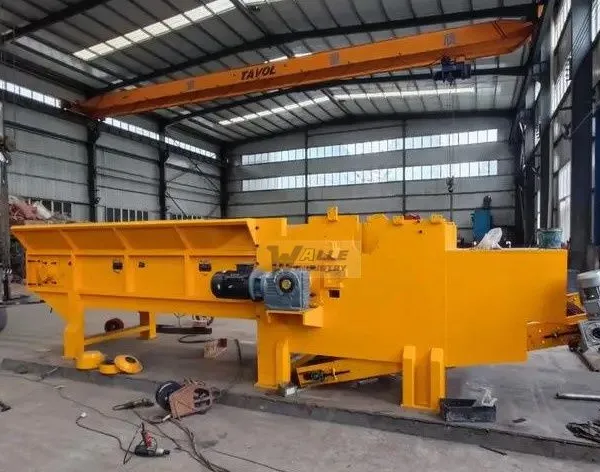

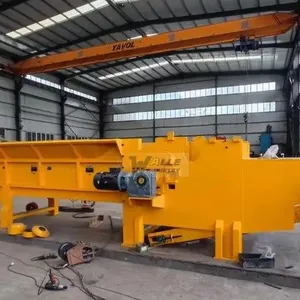

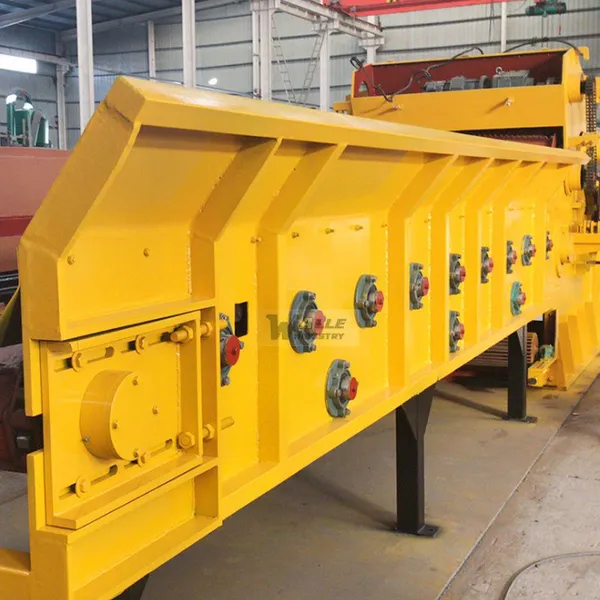

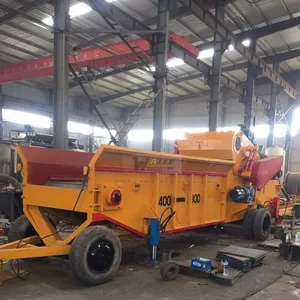

Muti-Functional Waste Wood Crushing of Used Pallet Old Template Wood Logs Crusher

FOB Price

US$ 18600

≥1 Sets

Port QINGDAO
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	ISO, CE	Warranty	2 year
After-sales Service	engineer ready to serve	Screw	Other
Automation	Automatic	Knife Type	Piece Knife Crusher
capacity	300-400KG/H	area	15㎡
power	52KW	loading time	15 days
Transport Package	20GP	Specification	WL-T300 TURBO
Trademark	WALLE INDUSTRY	Origin	CHINA

Product Description

Basic Info.

Model NO.

WL-1200

Automatic Grade

Full-Automatic

Warranty

1 Year

Power

160 Kw

Feeder

1200*400mm

Rotor Speed

480 Rpm

Cutter Material

H13

Dimension

6000*2950*1950mm

Weight

12000

Conveyor

6000*1400mm

Conveyor Power

4kw

Hydraulic System

3 Kw

Transport Package

Plastic Film

Trademark

walle industry

Origin

China

HS Code

8477209000

Production Capacity

10set/Month

Product Description

The wood chipper machine is a special equipment of biomass energy power plant for fuel reserve. With the widely raw material appliance, All kinds of trees, undersized log, timber cutting residues such as branches, wood processing residues (such as slab, batten, log core, building templates and so on), Also some non-wooden raw materials (such as waste of flax, reed, bamboo, maize straw, cotton stalk, etc.).
With the more than years manufacturer experience of wood drum chipper, According to the raw materials characteristics and biomass energy plant's requirement for material particle size, we designed and developed serious high output chippers. To ensure the uptime and operation, the motor and reducer are powerful and strong type.

MODEL	WL1000	WL1300	WL1600
FEEDER MM	100*400	1300*400	1600*400
Main motor	110kw	160kw	220kw
Force feeder	5.5kw*2	7.5kw*2	11kw*2
feeding convyor	Metal plate conveyor L4*W1 m	metal plate conveyor L4*1.2m	metal plate conveyor L6*w1.4m
Cutter material	H13 OR D2
Rotor diam.	850mm	850mm	1000mm
discharge motor	1.5 kw	2.2kw	3kw
Speed of rotor	510 rpm	510 rpm	365 rpm
working capacity	8-45Tons per hour (decided by raw material)
weight	9000 kgs	12000kgs	16000kgs
dimension	600022001750mm	600023501750mm	600029501950mm

Scope: wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.Non-wood raw material: sugarcane, reed, straw, etc.

Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory,wood pellet manufacture.

1.high performance H13 Special Customized Knives, and smoothly bites raw woods into chips with visible high throughput rate, and last much longer than normal crusher machines.
2.Main shaft specially fortified with thicker arc shell and Stainless Welded Layer against high load bumping & rotation, supporting LDBX-PF machine to run smoother and stabler.

3.Available materials: Unprocessed woods, like wood logs, branches; Veneers also works perfectly. But the blades are extremely weak to panel materials with nails, huge iron pieces and other irons, will do harm to the blades.
4.The hydraulic system to asssit exchange the spare parts like the fence and cutters.
