This testing device is specifically designed for smart battery pack applications. In addition to standard battery testing functions, it supports communication with the smart battery's control circuitry via the SMBus (System Management Bus) protocol, enabling access to critical battery data—including manufacturing information and real-time sampling data. The collected data can be transmitted to a computer for monitoring, recording, and automated report generation.
Home > Instruments & Meters > Test Instrument > Battery Tester > High-accuracy Battery Tester 20V30A Suitable for Consumer Electronic / Laptops / Notebook/tablet/mobile Phone/power Tool Battery Testing.
High-accuracy Battery Tester 20V30A Suitable for Consumer Electronic / Laptops / Notebook/tablet/mobile Phone/power Tool Battery Testing.
US$ 900 - 1500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
DVD Battery Tester
Application:
Lithium-ion Battery
Test Region:
All
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Neware 100mA Four-Range Button Cell Testing System for Coin Cell, Cylindrical Battery, Prismatic Cell, Pouch Cell, Super-capacitor, Etc.US$ 800 - 1300MOQ: 1 Set -
Neware Battery Tester Battery Analyzer for Cell/ Module/pack Battery Capacity TesterUS$ 800 - 1300MOQ: 1 Set
-
Neware 5V200mA SMBus Smart Battery Tester for Coin Cell, Laptop Cell、 Smartphones Battery、 and Other Consumer Electronic Related Fields.US$ 800 - 1300MOQ: 1 Set
-
Neware 100mA Four-Range Button Cell Testing System for Coin Cell, Cylindrical Battery, Prismatic Cell, Pouch Cell, Super-capacitor, Etc.US$ 800 - 1300MOQ: 1 Set
-
Neware Battery Tester 60V50A for Lithium Battery Module TestingUS$ 1000 - 1800MOQ: 1 Set
Type
DVD Battery Tester
Application
Lithium-ion Battery
Test Region
All
Customized
Customized
Order classification:
The price for the battery tester above is only for reference, please contact me at chengli@neware.com.cn
About the measurement: According to the different ranges of voltage and current for each type batteries, please contact me.
We have standard models: 5V/200mA/6A/12A； 10V/20A/30A; 20V/10A/30A ; 30V/5A/10A/20A
Testing objectives: 2~6 series battery packs, laptop/tablet/mobile phone/power tools/small drones battery testing and other battery testing application scenarios.
Testing items: Measure the actual capacity data of the battery; perform cycle life testing on the battery pack and enable intelligent battery data learning; support constant voltage charging, constant current charging, constant current discharging, constant resistance discharging, and constant power discharging; and through SMBus data, real-time monitoring of the battery pack status.

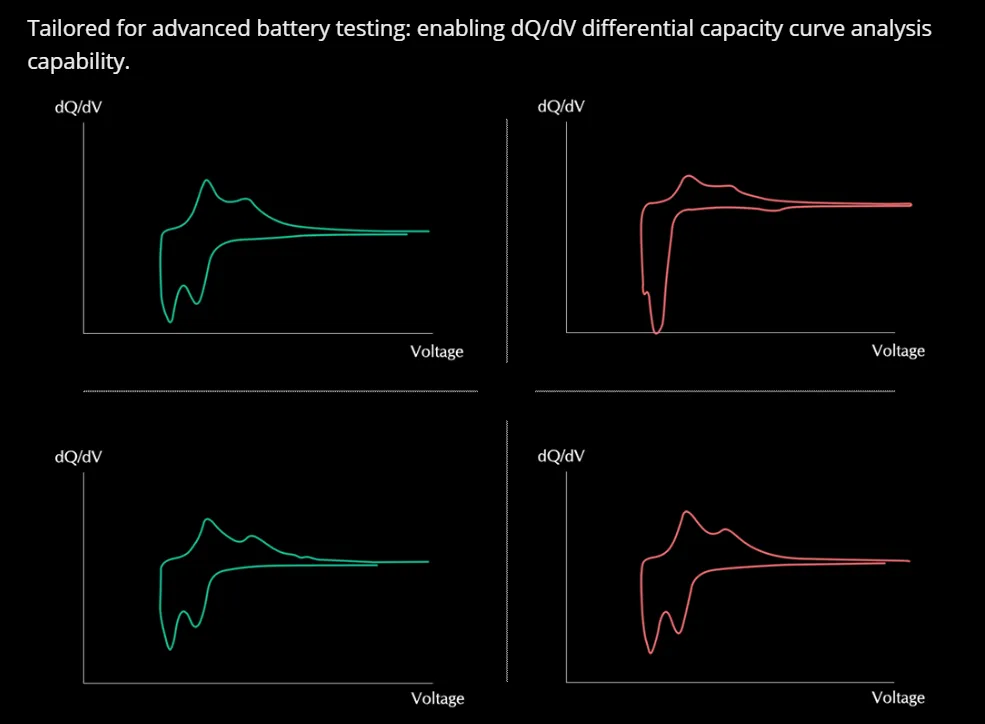

cycle-life, Pulse, DCIR, OCV, SOC, SOH, HPPC, C-Rate, formation, grading, EV driving simulation, etc.
About the clamps: Based on the type of the batteries.
Warranty: 1 year （our after-service network is globally)
Delivery: 7days after deposit
Contact information: Ellie Email: chengli@neware.com.cn

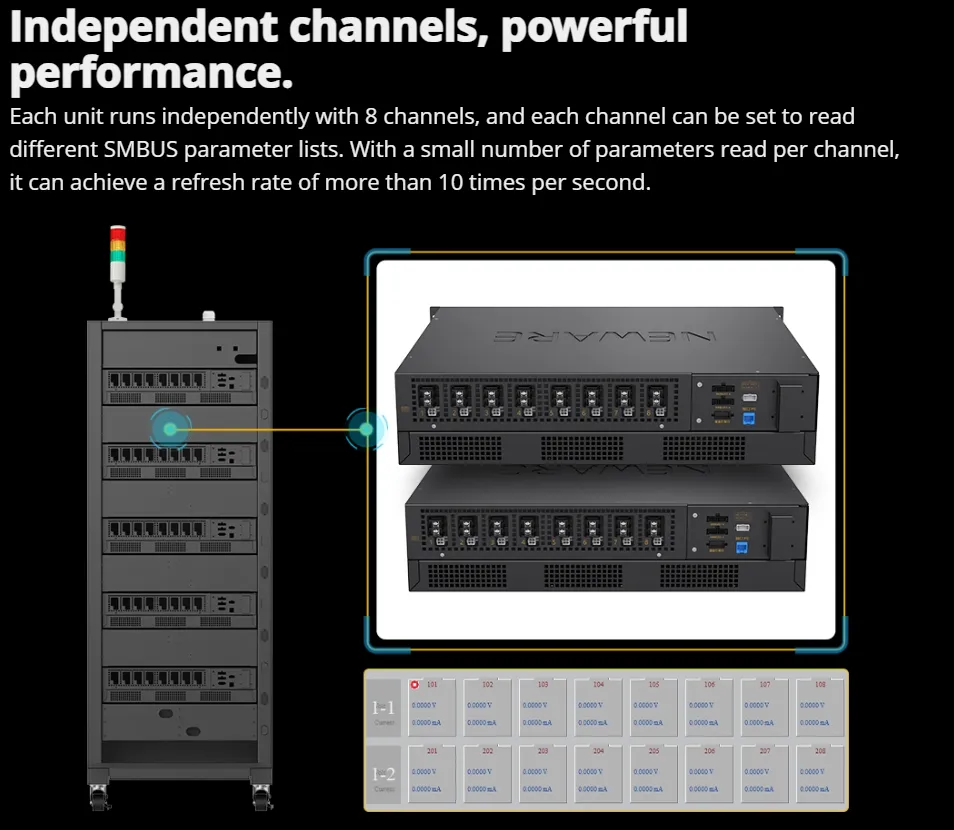

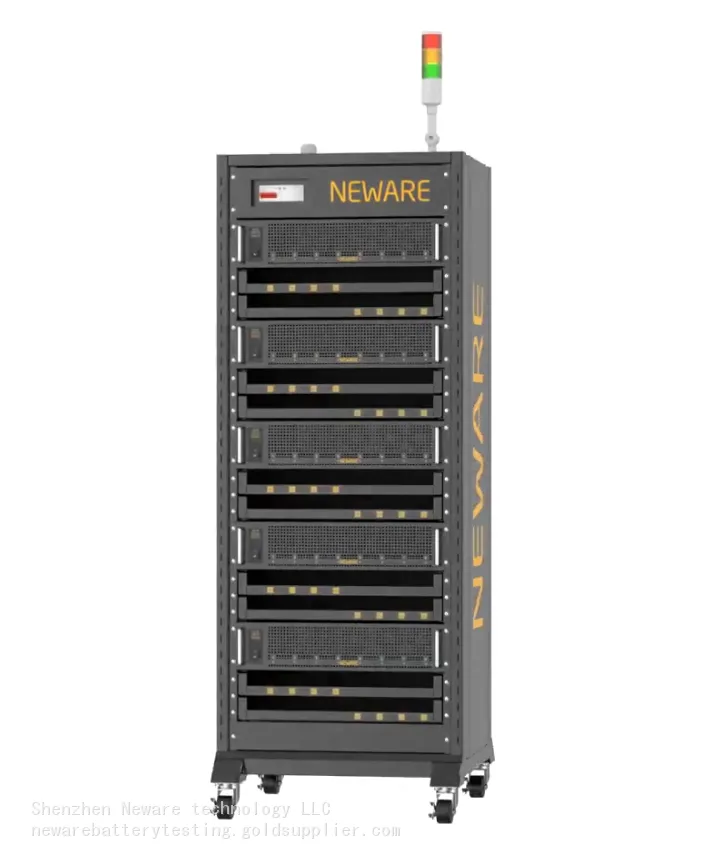

BTS-20V30A is an eight-channel battery analyzer to analyzes batteries from
0.01A to 30A, up to 20V. Each channel of the analyzer has an independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
This system provides most applications in battery testing fields such as Notebook/tablet/mobile phone/power tool/small drone battery testing.
About Neware： Neware Technology, a leading battery testing equipment manufacturer founded in 1998. From cell to module to pack, Neware testers are widely used by battery manufacturers, lab researchers, company engineers, battery technology, and battery applications. NEWARE offers charge/discharge battery testing systems ranging from μA single cell applications up to 300kw packs. Thus far, Neware has provided flexible, high-accuracy battery testing equipment to more than 32,000 customers worldwide. Partners love the stable, cost-effective battery testing equipment and Neware's great service.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1998
Overseas Office
Yes
Factory Size
5,000-10,000 square meters
