I. Core Technologies and Functions
(1) Powerful Processor Performance
High-performance dual-core architecture: The controller is equipped with a 1.6 GHz AMD G-series dual-core processor. This high-performance processor architecture provides it with strong computing capabilities. In complex industrial control scenarios, it can quickly process large amounts of data and control instructions, ensuring the timeliness and accuracy of system responses. For example, in large-scale chemical production facilities, it is necessary to conduct real-time analysis and processing of numerous sensor data to control various parameters in the production process. The dual-core processor of IS420UCSCS2A - B - V0.1 - A can easily handle this, make quick decisions, and ensure the smooth progress of production.
Efficient data processing capability: Thanks to the advanced processor, it can efficiently process various types of data. Whether it is digital data converted from analog signals or real-time data from communication networks, it can complete calculations and processing in a very short time. In the automation control of substations in power systems, it is necessary to monitor and analyze a large number of electrical parameters in real-time, such as voltage, current, and power. This controller can quickly process these data and issue control signals according to preset logic to achieve precise control of power equipment.
(2) Excellent Safety Performance
Compliance with high-level safety standards: It is strictly designed and manufactured in accordance with the IEC 61508 safety standard, with the capability of Safety Integrity Level (SIL) 2 and SIL 3. This means that in safety-critical applications, it can reliably perform safety functions and reduce the risk of accidents. On oil and gas drilling platforms, which involve flammable and explosive hazardous environments, the high safety level of IS420UCSCS2A - B - V0.1 - A ensures that in emergency situations, such as gas leaks or fires, safety protection mechanisms can be triggered in a timely manner to protect the safety of personnel and equipment.
Multiple safety protection mechanisms: In addition to meeting safety standards, it also has built-in multiple safety protection mechanisms. For example, it has a complete fault detection and diagnosis function, which can monitor its own operating status in real-time. Once a hardware failure or software abnormality is detected, it immediately takes corresponding measures, such as switching to redundant equipment or triggering an alarm signal, to ensure the continuous and safe operation of the system. In industrial automation production lines, when a certain equipment failure may affect the safety of the entire production line, the controller can quickly detect and respond to prevent the expansion of the accident.
(3) Flexible Redundant Configuration
Multiple redundant modes available: It supports multiple redundant configuration modes such as simplex, dual, and TMR (Triple Modular Redundancy). Users can flexibly choose the appropriate redundant mode according to the needs of the actual application scenario and the requirements for system reliability. In some small industrial control systems that are cost-sensitive but still require certain reliability guarantees, the simplex mode can be selected; while in large key infrastructure projects with extremely high reliability requirements, such as nuclear power plant control systems, the TMR redundant mode can be adopted. Through three identical modules working simultaneously and performing comparison and verification, the fault tolerance and reliability of the system are greatly improved.
Seamless switching to ensure continuity: In redundant configurations, when the main module fails, the standby module can achieve seamless switching to ensure that the control function of the system is not interrupted. Taking the cooling system of a large data center as an example, the IS420UCSCS2A - B - V0.1 - A controller with dual redundant configuration, when the main controller fails, the standby controller can immediately take over the control task, ensuring the normal operation of the cooling system, and avoiding the temperature of the data center from getting out of control due to controller failure, which affects the normal operation of servers.
(4) Rich Communication Interfaces and Protocol Support

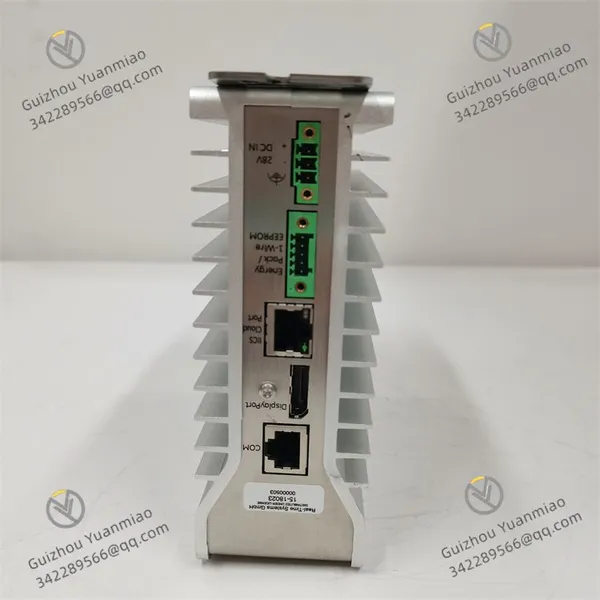

Multi-type interface configuration: It is equipped with rich communication interfaces, including an RS - 232 interface for serial communication with some traditional equipment, to meet the connection needs of different industrial equipment. In the automation transformation projects of some old factories, some equipment may only support the RS - 232 communication interface. The RS - 232 interface of this controller can conveniently connect and exchange data with these equipment. At the same time, it is also equipped with an Ethernet interface, which supports high-speed data transmission, facilitating communication with upper computers, remote monitoring systems, or other intelligent devices to achieve remote control and data sharing. Through the Ethernet interface, enterprise managers can monitor the operating status of equipment in the production site in real-time in the office and make timely decisions.
Wide protocol compatibility: It supports multiple industrial communication protocols, such as Modbus protocol, which enables it to integrate with a large number of devices that meet the Modbus standard. In industrial automation networks, many sensors, actuators, and other devices communicate using the Modbus protocol. IS420UCSCS2A - B - V0.1 - A can easily communicate with these devices to achieve comprehensive control of the entire production process. In addition, it also supports other commonly used industrial communication protocols, such as Profibus, which further enhances its compatibility and versatility in different industrial environments.
II. Hardware Specifications and Characteristics
(1) Stable Power Supply
Wide voltage input range: It adopts a nominal power supply voltage of 28 V DC and has a wide voltage input range of 18 - 32 V DC. This design enables it to adapt to the power supply conditions of different industrial sites, and can work stably even when there is a certain fluctuation in the power supply voltage. In industrial facilities in some remote areas, the power supply may be unstable with large voltage fluctuations. The wide voltage input characteristic of IS420UCSCS2A - B - V0.1 - A can ensure its normal operation in such environments and guarantee the reliability of the control system.
Power supply redundancy function: It has a power supply redundancy function. When the main power supply fails, the standby power supply can automatically switch to ensure the continuous operation of the controller. In the control system of medical equipment in hospitals, the stability of the power supply is extremely high. Once the power supply is interrupted, it may endanger the lives of patients. The power supply redundancy function of this controller can effectively avoid system shutdown caused by power supply failures and ensure the normal operation of medical equipment.
(2) Rugged and Durable Design

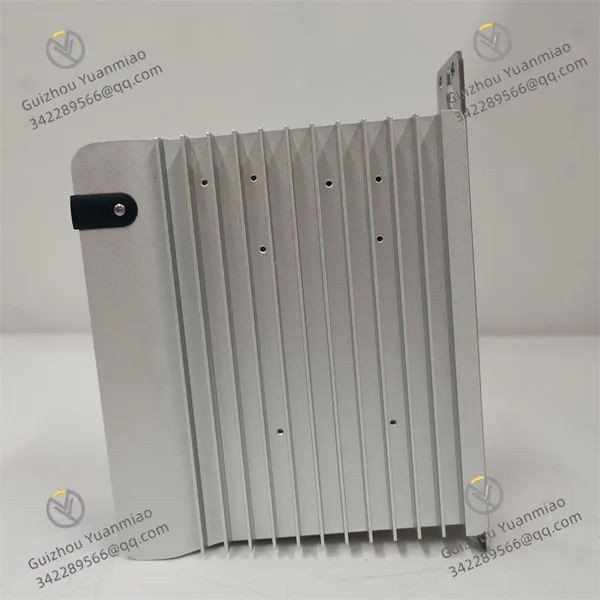

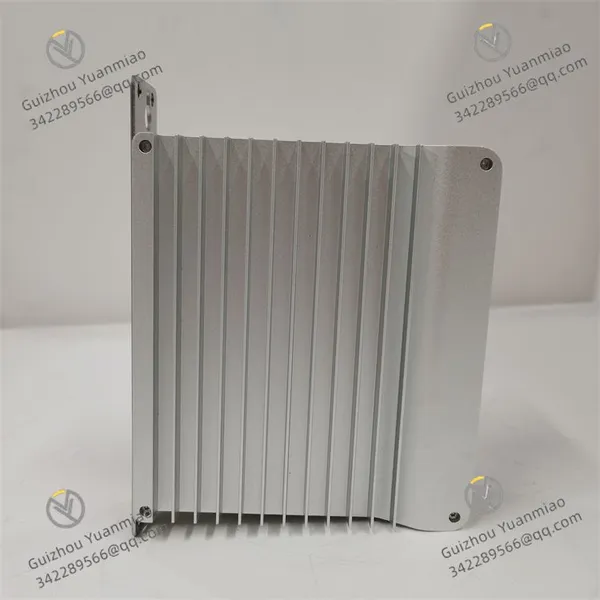

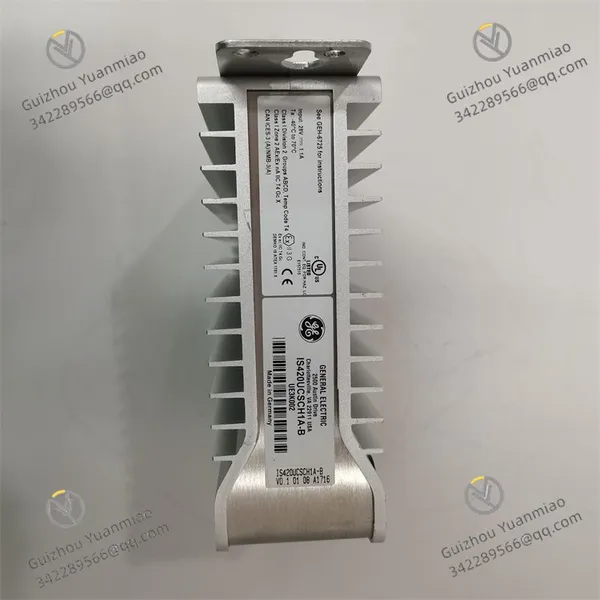

Adaptation to harsh environments: In terms of size, it is 168 x 150 x 55 mm, with an overall compact design, which is convenient for installation in industrial control cabinets with limited space. At the same time, it uses rugged and durable shell materials, which can adapt to harsh industrial environments. In industries such as mining and metallurgy, the working environment is usually accompanied by high temperature, high humidity, dust, and strong electromagnetic interference. IS420UCSCS2A - B - V0.1 - A can operate stably in such environments without being affected by environmental factors in terms of performance and reliability.
High protection level: Although the specific protection level is not clearly mentioned, it can be inferred from its design concept of adapting to harsh environments that it has a high protection level, which can effectively prevent dust, water, and corrosion, and protect internal electronic components from erosion by the external environment. In chemical production workshops, there are a large number of corrosive gases and liquids. The high protection performance of this controller can ensure its long-term stable operation and reduce the frequency of equipment maintenance and replacement.
(3) Convenient Installation Method
It adopts the DIN - rail mounting method, which is simple and convenient. The controller can be installed by simply clipping it into a standard 35 mm DIN rail. In the assembly process of industrial control cabinets, the rail mounting method greatly improves the installation efficiency and facilitates the maintenance and replacement of equipment. At the same time, due to its firm installation, it can effectively resist vibrations and impacts that may exist in industrial sites, ensuring the stability of the controller during operation.
III. Application Fields
(1) Oil and Gas Industry
Safety control of drilling platforms: On offshore oil drilling platforms, IS420UCSCS2A - B - V0.1 - A is used to monitor and control the operating status of various equipment to ensure the safe progress of drilling operations. For example, it monitors parameters such as pressure and temperature of drilling equipment in real-time. When abnormal conditions occur, it quickly triggers the emergency shutdown system to prevent accidents. At the same time, it controls the natural gas leak detection system on the platform. Once a leak is detected, it immediately starts ventilation equipment and alarm devices to ensure the safety of personnel on the platform and the normal operation of equipment.
Safety guarantee for pipeline transportation: In long-distance oil and gas transportation pipelines, this controller is responsible for monitoring key parameters such as pipeline pressure and flow. Through real-time analysis of these parameters, it can timely detect faults such as pipeline leaks and blockages, and take corresponding measures, such as closing relevant valves and starting standby pipelines, to ensure the safety and stability of energy transportation. In a transnational natural gas transportation pipeline, IS420UCSCS2A - B - V0.1 - A monitors pressure and flow data at multiple monitoring points along the line. When the pressure at a certain monitoring point drops abnormally, the controller quickly judges that there may be a pipeline leak, sends an alarm signal in a timely manner, and starts the emergency plan, effectively avoiding the occurrence of large-scale leakage accidents.
(2) Chemical Industry
Control of chemical production processes: In chemical production facilities, IS420UCSCS2A - B - V0.1 - A precisely controls key equipment such as reactors and distillation towers. According to the requirements of the production process, it adjusts parameters such as temperature, pressure, and flow of the equipment in real-time to ensure that chemical reactions are carried out under safe and stable conditions. In the production process of synthetic rubber, through the precise control of the temperature and pressure of the reactor by this controller, the smooth progress of the synthesis reaction is ensured, and the product quality and production efficiency are improved. At the same time, in case of emergencies such as reaction out of control and equipment failure, safety protection measures are quickly activated to prevent the expansion of accidents.
Core of Safety Instrumented System (SIS): As the core equipment of the safety instrumented system in chemical enterprises, it assumes the important responsibility of ensuring the safety of the entire production process. It collects, processes, and judges various safety signals. When dangerous situations are detected, it timely triggers safety interlock devices to stop the operation of relevant equipment and prevent accidents. In a large chemical park, the production facilities of multiple chemical enterprises have adopted the safety instrumented system with IS420UCSCS2A - B - V0.1 - A as the core, which effectively reduces the accident risk and ensures the safe production of the park.
(3) Power Industry
Automation control of power stations: In various power stations such as thermal power stations and hydropower stations, this controller is used to realize the automation control and monitoring of power generation equipment. It collects and analyzes the operating parameters of equipment such as boilers, steam turbines, and generators in real-time, and automatically adjusts the operating status of power generation equipment according to changes in grid load to ensure power generation efficiency and power quality. In thermal power stations, IS420UCSCS2A - B - V0.1 - A monitors parameters such as water level, steam pressure, and combustion status of the boiler in real-time, and automatically adjusts the water supply, fuel supply, and air volume according to these parameters to ensure the stable operation of the boiler and achieve the goal of energy conservation and emission reduction.
Safety monitoring of substations: In substations, it is responsible for the safety monitoring of the operating status of electrical equipment. It monitors parameters such as temperature, current, and voltage of equipment such as transformers, circuit breakers, and disconnectors in real-time. When abnormal conditions occur in the equipment, it timely sends alarm signals and takes corresponding control measures, such as automatic tripping and starting cooling fans, to ensure the safe operation of the substation. In a city's power supply substation, IS420UCSCS2A - B - V0.1 - A conducts 24-hour uninterrupted monitoring of all electrical equipment in the station. Through real-time analysis of equipment operating parameters, it has discovered multiple potential equipment failure hazards in advance and handled them in a timely manner, avoiding power outages and ensuring the normal power supply of the city.
(4) Manufacturing Industry
Control of automated production lines: In automated production lines such as automobile manufacturing and electronic equipment manufacturing, IS420UCSCS2A - B - V0.1 - A is used to coordinate and control the operation of equipment in various production links. According to the requirements of the production process, it precisely controls robots, conveyor lines, processing equipment, etc., to realize the automation and intelligence of the production process. In the body welding production line of an automobile manufacturing plant, through the precise control of the actions of welding robots, welding parameters, and the running speed of the conveyor line by this controller, the consistency of body welding quality and the improvement of production efficiency are ensured. At the same time, when a fault occurs in the production line, it can quickly locate the fault point and take corresponding repair measures to reduce the downtime of the production line.
Equipment safety protection: It provides safety protection functions for production equipment. It monitors the operating status of the equipment in real-time. When dangerous situations such as equipment overload, overheating, and abnormal vibration are detected, it immediately triggers the safety protection device to stop the equipment operation and prevent equipment damage and personnel casualties. In the SMT (Surface Mount Technology) production line of an electronic equipment manufacturing factory, IS420UCSCS2A - B - V0.1 - A conducts safety monitoring of equipment such as chip mounters and reflow ovens. Once abnormal conditions of the equipment are found, such as component mounting errors caused by blockage of the chip mounter's nozzle and abnormal temperature rise of the reflow oven, it timely sends alarm signals and stops the equipment operation, avoiding the production of a large number of defective products and equipment damage.
