QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China

QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China thumbnail-1
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China thumbnail-2
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China thumbnail-3
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China thumbnail-4
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China thumbnail-5
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China photo-1
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China photo-2
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China photo-3
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China photo-4
QDGY Brand High Quality SAE Hydraulic Air A/C Fuel Oil Power Steering Rubber EPDM Brake Hoses Tube Pipes Car Truck Direct China photo-5
US$ 1.5 200 - 499 Pieces
US$ 1.45 500 - 999 Pieces
US$ 1.2 ≥1000 Pieces
Key Specifications
Get Latest Price
Material:
Rubber
Type:
Brake System
Certification:
ISO/TS16949, ISO13485, ISO14001, BSCI, IATF-16949, ISO9001, ISO9002, AMECA, DOT, ECE, FSC, HACCP, GSV, GMP, Other
Contact Supplier Request Quote Chat Now
Qingdao Guosong Machinery Parts Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO,CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Rubber
Type Brake System
Certification ISO/TS16949, ISO13485, ISO14001, BSCI, IATF-16949, ISO9001, ISO9002, AMECA, DOT, ECE, FSC, HACCP, GSV, GMP, Other
Classification Disc
Warranty 3 years
Position Front
After-sales Service 24hours
Main Market South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market, Other, all over the world
Drum Brakes Classification Brake Drum
Product name DOT SAE J1401 Hydraulic brake hose
material EPDM Rubber brake hose
car type Fit for all car type
certificate DOT SAE J1401 FMVSS106,ISO9001
Suitable vehicle type Any vehicle
Packing Customer's packing
application automobile brake system
Transport Package Plastic bag with sticker into carton into pallet
Specification 3.2mm X 10.5MM 1/8,3/16
Trademark QDGY
Origin CHINA


Product Overview
DOT SAE J1401 FMVSS106 CAR BRAKE HOSE
Car Automotive Replacement Brake System Custom length DOT certified OEM Rubber Front Rear Brake Clutch Hydraulic Flex line Hose
QINGDAO GUOYE Professional produce DOT SAE J1401 FMVSS106 Standard Car Brake Hose,more than 2000series OEM numbers can be chose ,samples or drawings also can be accordly make the production . 100% test before shipment make your product 100% safety sales ,safety use ,and longterm market development ,make the business more further .
Also you can chose some fittings from our catalogues,let us know your hose length,then we can give the price and make the production.Any inquiry ,please push contact with Rita He directly.

FEATURES

-----------------------------------------------------------------------------------------------------


1.Two braid PVA reinforced hose or Two PET Reinforce hose ,according to customer's request

2.Meets FMVSS-106 and SAE J1401

3.Every brake hose pressure tested to 3500 psi( 240 bar or 24Mpa )

4.Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
5.Temperature range -50°C to 121 °C
6.Compatible with DOT3,DOT4 and DOT4+ brake fluides
7.Application:
For use in braking system of the vehicle.


High qualtiy brake hose in rolls for hyraulic brake hos assembly

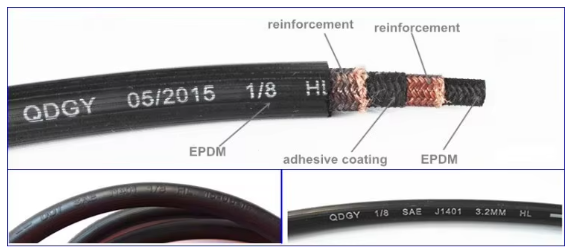

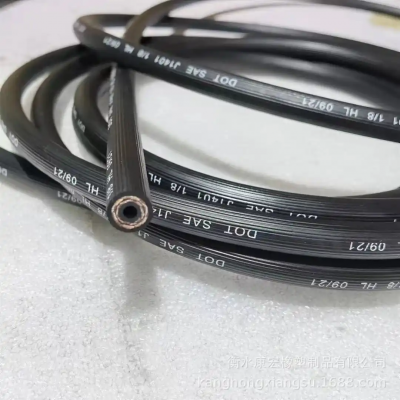

1. Material : EPDM Brake Hose
2.Reinforcement： PET+PET or PVA+PVA
3. Middle rubber material :EPDM
4. Inner tube material : EPDM
5. 100% test before brake hose assemble
HOSE  SIZE
Hose ID
Hose OD
Rubber Material
Reinforcement
1/8"(3.2mm*10.5mm)
3.2mm
10.5mm
EPDM
PET+PET or PVA+PVA

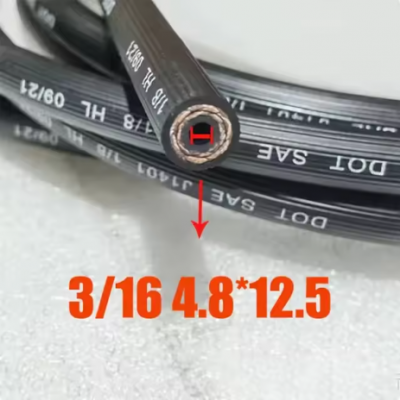

3/16"(4.8mm*12.5mm)
4.8mm
12.5mm
EPDM
PET+PET or PVA+PVA
1/4“（6.3mm*15mm)
6.3mm
15mm
EPDM
PET+PET or PVA+PVA

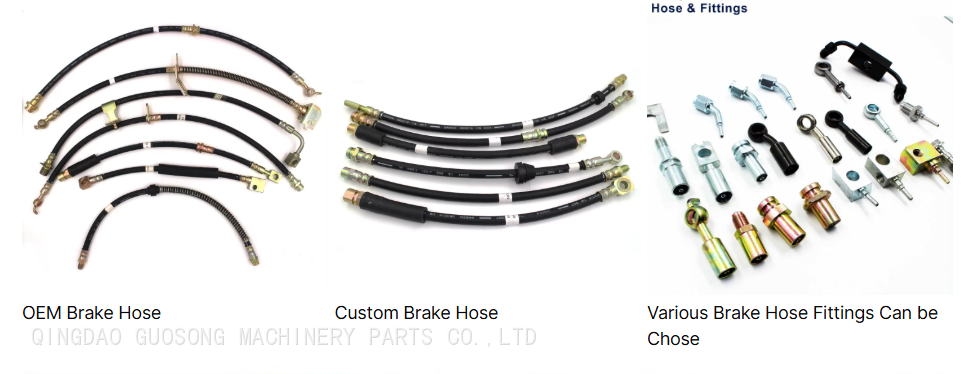

Brake Hose Fittings for 3.2mm 1/8 hydraulic OEM brake hoses

1.Material : Carbon steel or stainless steel material
2.The torsion of fittings more than 30KN
3.Surface treatment : White zinc coating ,yellow zinc coating ,black zinc coating ,green coating ,zinc nickel plated coating ..
4. 100% test before brake hose assemble
5.Production technology : Cold forging +CNC Machining or Robert automatic production


PRODUCT SPECIFICATIONS
No
Hose Size
1/8.3/16
3.2mm*10.5mm（11mm...）
4.8mm*12.5mm
1
Hose Material
EPDM rubber brake hose
customer request material can be ok as well
2
Hose Construction
EPDM+PVA+CR+PVA+EPDM
EPDM+PET+CR+PET+EPDM
3
Burst Pressure
standard ＞49Mpa
test result 85Mpa
4
Working pressure
100% pass test then send out the goods to customer
Safety use ,safety sale,make business more furtuer
5
Tensile test
Standard 1446N
Result : 2800N
6
End Fitting
OEM number different,then end fittings are different
end fitting can chose in our catalogues ,or send to us drawings or samples to quoted the price and make the prduction
7
Engine displacement
6750ml

8
Application
For brake system for vehicle

微信图片_2025073010471520220507_105420_副本_副本20220507_105009_副本_副本

OEM Number Brake Hose Some example Lists :

90947-02F20 90947-02H01 90947-02H00 90947-02H18 90947-C2022 90947-C2021 90947-C2020 90947-02F37 90947-02G66 90947-C2018
90947-C2017 90947-C2005 90947-C2026 90947-02F43 90947-02G84 90947-02F42 90947-02G83 90947-02G20 90947-02F23 90947-02F24
90947-02F18 90947-C2072 90947-C2073 9694034405 TOYOTA 90947-02736
TOYOTA 90947-02653
TOYOTA 9008047023
TOYOTA 9094702565
TOYOTA 9094702940
TOYOTA 9094702532
TOYOTA 9094702550
TOYOTA 9094702587 90947-02383 90947-02814 90947-02813 90947-02E33 90947-02E34 REAR 90947-02E30 L 01465SMGE00 R 01464SMGE00
90080-94060 90947-02A45 90947-02A46 90947-02780 4806E1 4806F6 9694034305 9094702637 9008094066 9008094200 9008094199 9008094178
1176 4347579 1177 4392835/288686 1323 1326 90236246 1389 1390 263116 1395 033-006-008 1443 212.135.060.611 2006 2054 2008 2056
2008 3076 MD001-43-980B 3084 3034 4344 4040 4564 58732-22000 4565 58731-22000 7036 362068 7050 245729 8215 7060 7704002450 7820
SH60837/124574 7903 7908 90947-02455 7936 17030 7954 7955 11191 10492/36091 49927 36531 / 88423 57331 453233 64843 *64845/36545
66717 36525 / 88305 73244 73269 78092 BH36649/88519 78097 78097 79345 BH36752 79346 36787 / 97842 79347 36806 / 77460 79363 380002
/ 88275 79381 73242 / BH36828 79382 BH36755 / 88612 80000 86551 / BH36759 80001 CI4196/BH380005 80004 86550 / CI4195 80936
345729-7040 80952 BH36718 / 88255 80965 BH3773 / 88624 80967 *88983 / 88651 80976 36749 SP-5303 80977 36748 / 77080 84512 84513
36586 84517 11147/*80028 86576 86576 88957 CI4220 = 36952 88958
MR96102107 MR129805 MR129799 46203-89917 SH-30771 46410-SM4-013 46411-SM4-013 90947-02455 90947-02393 29603-87301 46210-04A00
B001-43-980 01464-SV4-000 01465-SV4-000 46411-SR3-003 90049-22132 90049-22102 90049-22047 46210-60A00 46410-SEO-023 46411-SEO-023
46203-G3700 46210-G5110 46211-G5110 46210-50Y02 46210-50Y07 46410-SH3-043 46411-SH3-043 46201-G2500 01465-S04-J01 01464-S04-J01
PW820106 MR129844 46410-SR3-003 OK201-43-98013 90049-22052 90049-22053 90049-22054 90049-22055 90049-22056 90049-22057 90049-22058
90049-22059 90049-22060 90049-22061 90049-22062 90049-22063 90049-22064 90049-22065 90049-22066 90049-22067 90049-22068
90049-22069 90049-22070 90049-22071 90049-22072 90049-22073 90049-22074 90049-22075 90049-22076 90049-22077 90049-22078

SIMILAR PRODUCTS

a32aae1cb424017666a3ee92d5c47926certificate

QINGDAO GUOSONG MACHINERY PARTS CO.,LTD Certificate
DOT SAE J1401 FMVSS106 Certificate ,ISO9001:2015, brand certificate ,Audit Report,Recycling Dual....
Will be your reliable Suppler,Why not chose us ?
Company Profile

brake hose factory 海报


QINGDAO GUOSONG MACHINERY PARTS CO.,LTD Company Introduction

QINGDAO GUOSONG MACHINERY PARTS CO.,LTD is  the leading manufacturer Fluid transfer system Hose and Fittings ,,Brake System Hose and fititngs,brake hose assembly ,OEM brake hoses,Rubber Brake Hose ,1/8 3.2x10.5mm DOT SAE J1401 rubber brake hose ,stainless steel braided brake hose ,stainless steel braided PTFE brake hose line ,brake line kits ,stainless steel braided hose power steering hose,SAE J1402 Air brake hose ,air conditioning hose ,fuel hose ,Oil Hose ,Hose and fittings,Brake hose fittings,Steel brake pipe ,steel brake line ,bundy tube ,bundy pipe ,steel tube and assemblies.......
For brake hose ,we have more than 2000series OEM number can be chosed by customer ,if you have OEM number ,.draings or samples .send to us, all can be produced according to it .

Our all products must 100% pass test then can send goods to our customer ,qualtiy is the first ,competitive is the first .
We have technical new products develop team to research the new products for our customer ,any requests,let us know,we will give best service and best cooperation to make the business further.
We have ISO9001 ,IATF16949 Certificate to do strictly quality system control and improvement details .
Chose us as your supplier ,let us go further.


FAQ
Q1: Waht kinds of main rubber hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401
brake hose,DOT 1/8" brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q2: What size of brake hose can you supply?
A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc
,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,Teflon braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake
hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please
feel free to contact with us,or visit our website ,we will reply you within 24 hours.
