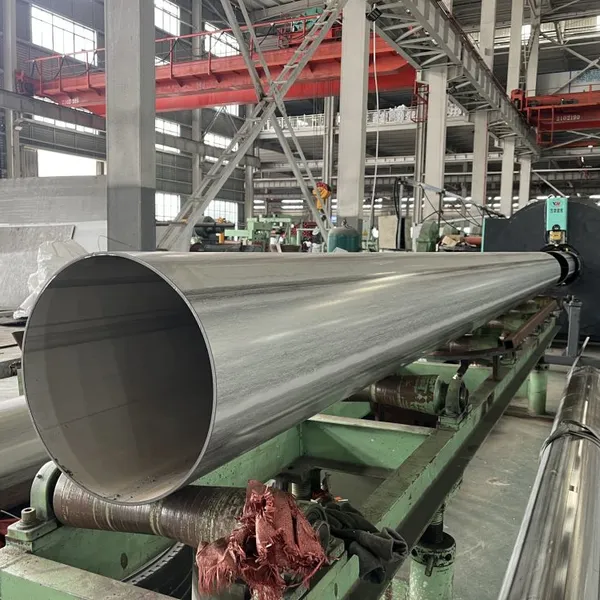

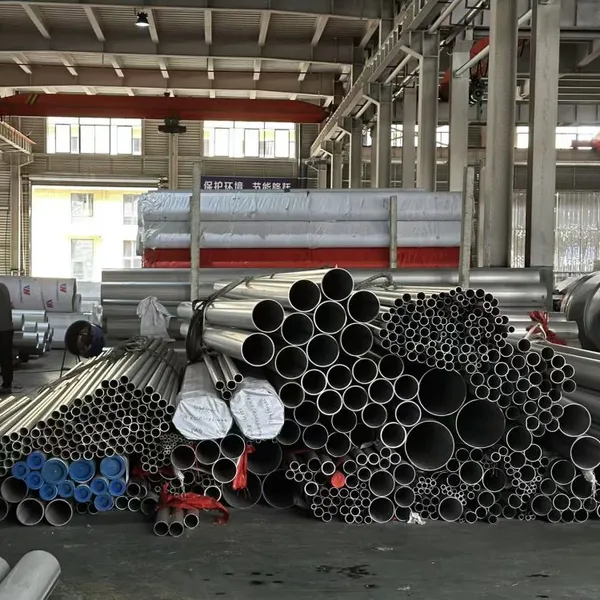

Help CenterHigh-Precision Small Size Stainless Steel Pipe Ss 304L 316 310 321 347 Seamless Pipes
Related Products
-
Large Diameter Water Treatment Stainless Steel Pipe 15 InchesNegotiableMOQ: 2000 Kilograms -
Cold Hot Rolled Stainless Steel Seamless / Welded Pipe for Building MaterialsUS$ 1200 - 1600MOQ: 1 Ton
-
Ss Inox 201 304 316L 310 310S 904L SUS420J2 TP304 S31804 347 904 2205 2507 317 321 Bright Welded Seamless Stainless Box Square Shs Rhs Steel Tube PipeUS$ 1200 - 1600MOQ: 1 Ton
-
ASTM AISI A312 Inox 304 Welded/Seamless Pipe Hot/Cold Rolled Bright Hairline Mirror Polish 304 304L 316 316L Stainless Steel Capillary Tube PipeNegotiableMOQ: 2000 Kilograms
-
API Tubing Drain Valve for Esp Pumping SystemUS$ 1392 - 1700MOQ: 5 Tons
For ASTM A213 Seamless Tubes with diameters less than 1/8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness，mechanical property requirements won’t apply. Tube with other dimensions may be furnished comply with other requirements.
.
Grades TP304H, TP309H, TP309HCb, TP310H, TP310HCb, TP310HCbN, TP316H, TP321H, TP347H, TP347HFG (fine grained) and TP348H are modifications of Grades TP304, TP309S, TP309Cb, TP310S, TP310Cb, TP316, TP321, TP347, and TP348, and are intended for high-temperature service, such as for superheaters and reheaters.
| Product Name | Seamless Stainless Steel Pipe | |
| Size | OD | 6mm-762mm |
| Thickness | 0.5mm-70mm | |
| Length | 5-18M | |
| Standard | ASTM (ASME) (SA)A312 /213/269/ ASTM A511 / JIS G3463/ JIS3459 / DIN2462 | |
| Materail and Grade | TP304/304L/H/LN,TP316/316L,TP317/317L,TP321/TP321H,TP347/347H,TP309S/310S,etc | |
| Process Method | Cold drawn/cold rolled | |
| Standard | ANSI B36.19/36.10 | |
| Usage | Oil Pipe, Casing Tube, Line Pipe and Fluid (Water, Gas) Transmission | |
| Surface | Bright, Pickling, Anti-Corrosion Coating | |
| Proctor | Plastic cap | |
| Package | Bundles, Bulk | |
| Inspection | With Hydraulic Testing, Ultrasonic testing or X-ray Test | |
| Certificate | ISO 9001-2000,PED 97/23/EC,ASME,DNV | |
| Date of Delivery | Less Than 15/20/25/30/40/50/60 Days According To The Quantity | |
| Payment: | L/C or T/T | |
| Port of Shipment | China | |
Chemical Composition Of ASTM A213 Stainless Steel Tubes
| Steel Grades | ASTM A213 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | NB | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0-20.0 | 8.0-11.0 | … | … | … | … |
| TP304H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 18.0-20.0 | 8.0-11.0 | … | … | … | … |
| TP304L | 0.035 | 2.00 | 0.040 | 0.030 | 0.75 | 18.0-20.0 | 8.0-13.0 | … | … | … | … |
| TP310S | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 24.0-26.0 | 19.0-22.0 | 0.75 | … | … | … |
| TP310HCbN | 0.04-0.10 | 2.00 | 0.030 | 0.030 | 0.75 | 24.0-26.0 | 17.0-23.0 | … | 0.15-0.35 | 0.20-0.60 | … |
| TP316 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP316L | 0.035 | 2.00 | 0.040 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | … | … | … |
| TP316H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP321 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | … | 5C-0.60 |
| TP321H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | … | 4C-0.60 |
| TP347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-19.0 | 9.0-13.0 | … | … | 10xC-1.00 | … |
| TP347H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | 8xC-1.00 | … |
Mechanical Properties Of ASTM A213 Stainless Steel Tubes
| Steel Grades | Heat Treatment | Temperure F (C) Min. | ASTM grain size NO. | Tensile Strength Ksi (MPa), Min. | Yield Strength Ksi (MPa), Min. | Elongation %, Min | Hardness | |
| Brinell | Rockwell | |||||||
| TP304 | Solution | 1900 (1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | … | 70(485) | 25(170) | 35 | 192HBW/200HV | 90HRB |
| TP304H | Solution | 1900 (1040) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP310S | Solution | 1900 (1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP310HCbN | Solution | 2000 (1110) | 7 | 95(655) | 43(295) | 30 | 256HBW | 100HRB |
| TP316 | Solution | 1900 (1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP316L | Solution | 1900 (1040) | … | 70(485) | 25(170) | 35 | 192HBW/200HV | 90HRB |
| TP316H | Solution | 1900 (1040) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP321 | Solution | 1900 (1040) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP321H | Solution | 2000(1100) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP347 | Solution | 1900(1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP347H | Solution | 2000(1100) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
ASTM A213 Stainless Steel Tubes Outside Diameter and Wall Thickness Tolerance
| OD, mm | OD Tolerance |
|---|---|
| <25.4 | +/- 0.10 |
| 25.4 – <= 38.1 | +/- 0.15 |
| > 38.1 -<50.8 | +/- 0.20 |
| 50.8 -<63.5 | +/- 0.25 |
| 63.5 -<76.2 | +/- 0.30 |
| 76.2 – <= 101.6 | +/- 0.38 |
| > 101.6 – <= 190.5 | +0.38/-0.64 |
| > 190.5 – <= 228.6 | +0.38/-1.14 |
| OD, mm | WT Tolerance |
|---|---|
| <= 38.1 | +20%/-0 |
| > 38.1 | +22%/-0 |
ASTM A213 Seamless Stainless Steel Pipe & Tube
ASTM A213 tubing has been widely used in high temperature services especially for the boiler and superheater. Tube material could be in alloy steel and stainless steel, and manufactured in seamless of hot rolled or cold drawn. so this pipe usually used in very important places and the price is much higher than normal carbon pipes.
ASTM A213 Application
ASTM A213 Stainless Steel Tubes that are capacitated to withstand temperature variations and thus are used in heat transfer process equipment like boilers, super heaters, heat exchangers, condensers and similar applications.
ASTM A213 Seamless Tube Manufacturer
We are professional ASTM A213 seamless tube manufacture & supplier, having capability to produce wide range size seamless tube for heat exchanger system, manufacturing process starts from extrusion of billet, by cold rolling and cold drawn methods to control size and tolerance, heat treatment will be finished after cold working to achieve original steel properties, which improve high temperature resistance and corrosion resistance, then tubes should be under pickling passivation condition.
