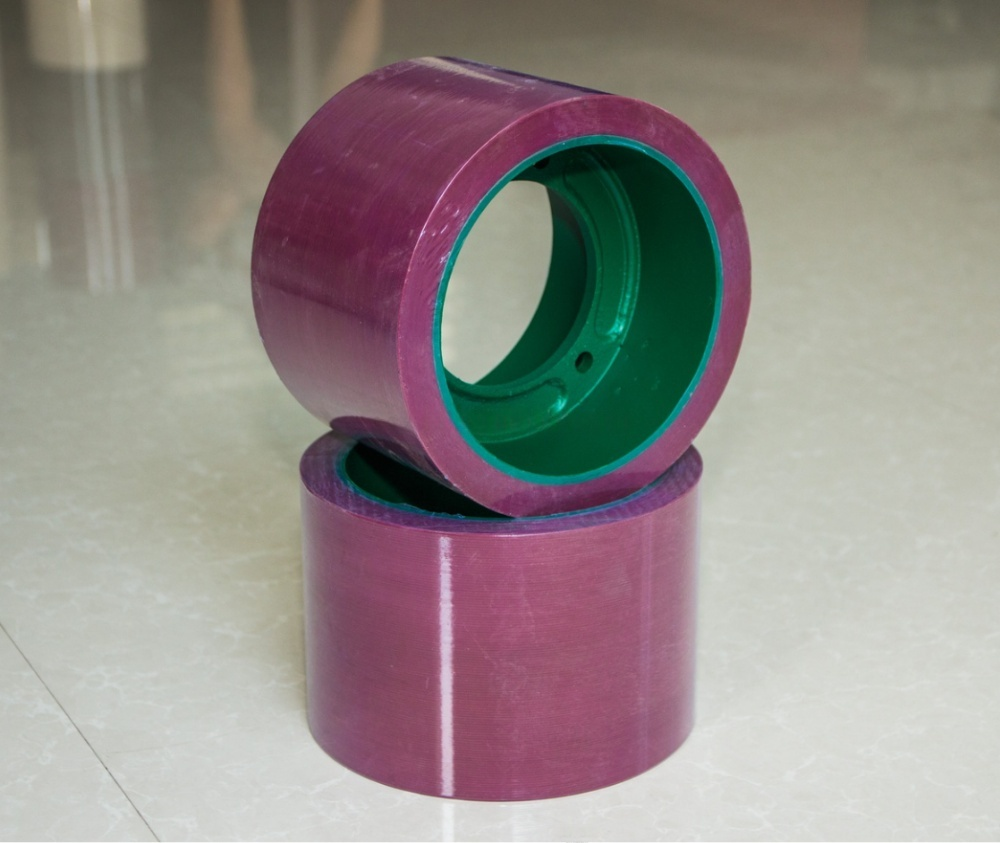

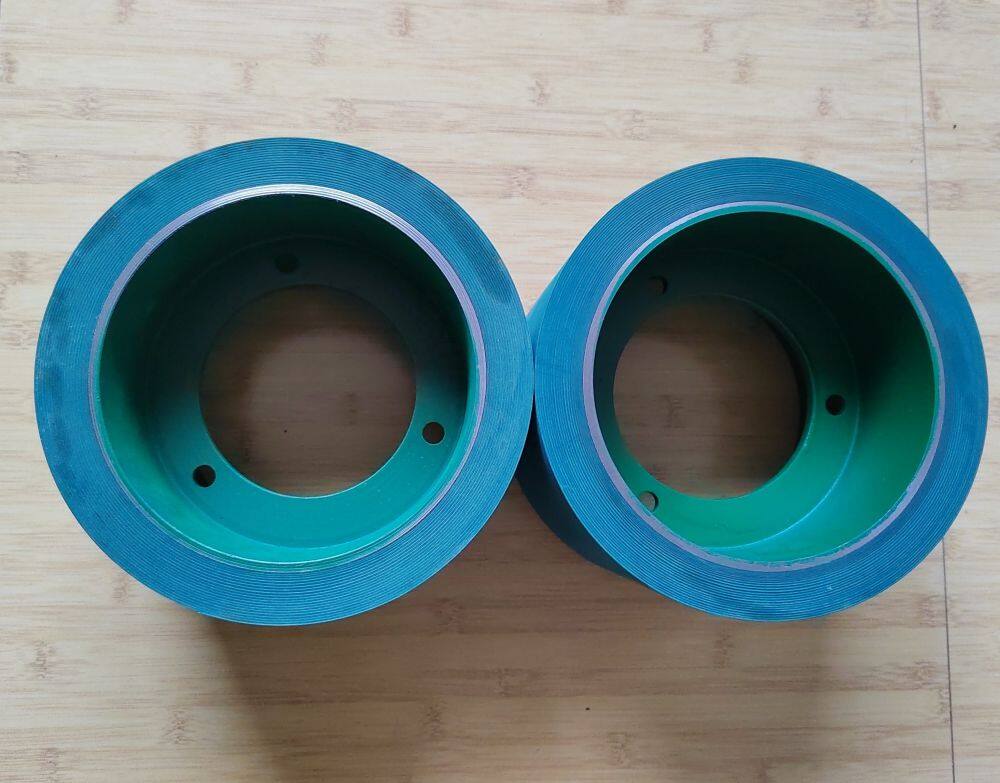

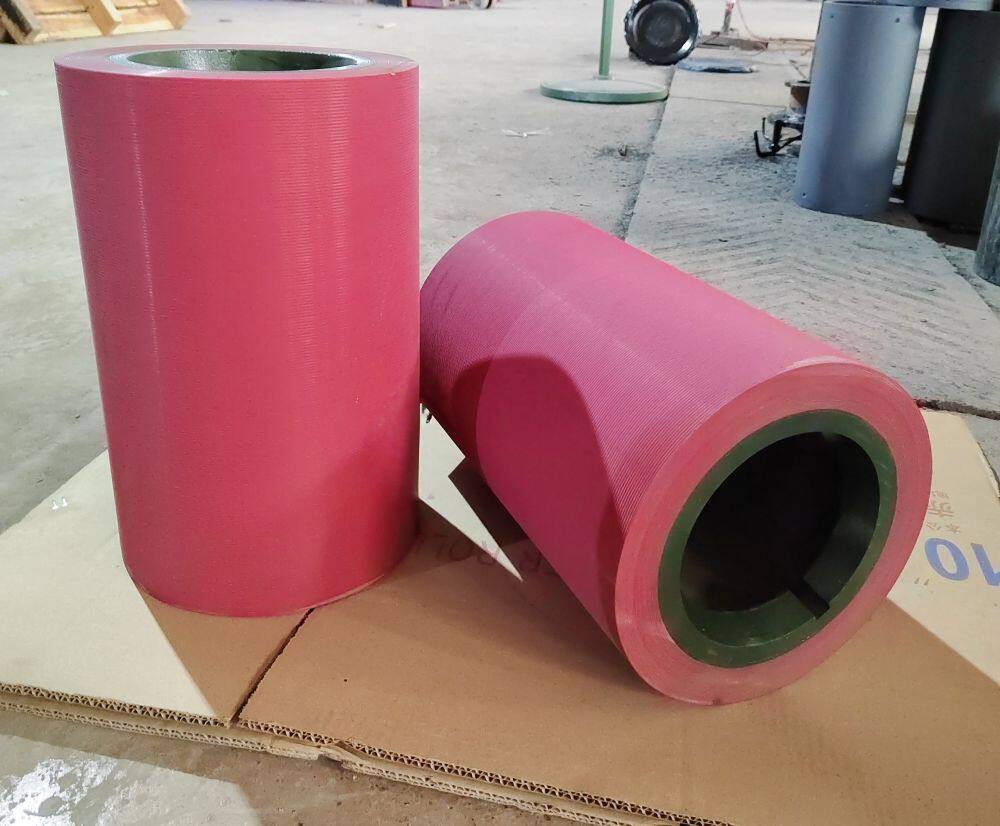

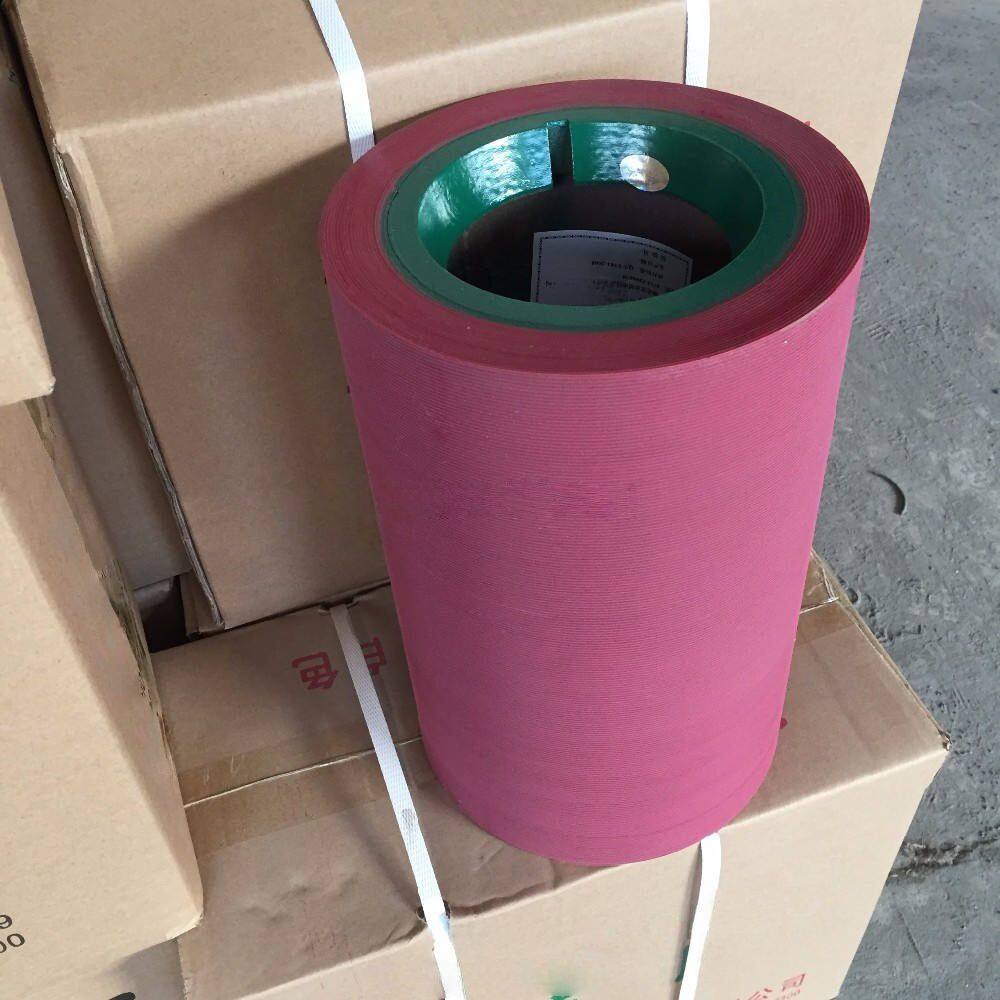

4"-20“ EPDM Rubber Roller for Rice Mill and Husker Machine

Advantages:

Hulling capacity example :

                                           6" EPDM red 150 mt                    6''NBR  white 120-130mt                   6''SBR  brown 90-110mt

1.Excellent bonding that ensures no rubber will be separated from the metal drum.

2.Excellent heat and abrasion resistance ensures maximum durability,thus increasing output.

3.Rollers are coated utilizing calendared sheeting method that ensures rubber layers are air-trap free,thus guarantee smoother production.

4.Fully automated compound mixing facilities to ensure consistency and evenness in material quality and hardness.

5.Choice in type of drum from aluminum and cast iron to facilitate flexibility to adapt to any machines and working condition.

                                                  6.Technical expertise on rubber material and ability to design to your specific needs.

7.Hardness is 88~96 degrees;

8.Offering very strong bonding between rubber and drum;

9.High shelling efficiency up to 95%;

10.Good wear resistance,Strong temperature,no climate impact,not deformation,soft, anti-tear at high-speed.

11.Health and non-toxic, no pollution to rice and bran, clean, bright white grain of rice, pure color quality.

Usage and Tips:

1. Optional of Rice Rubber Roller: For the choice of  the black, brown and white rubber rolls with  hardnes s shore A 90oC and 95oC, it should be according to the type of rices, climate conditions, and different seasons.Try to avoid to use the single roller,  the recommended way is higher hardness for fast roller, lower hardness for slow rollers.

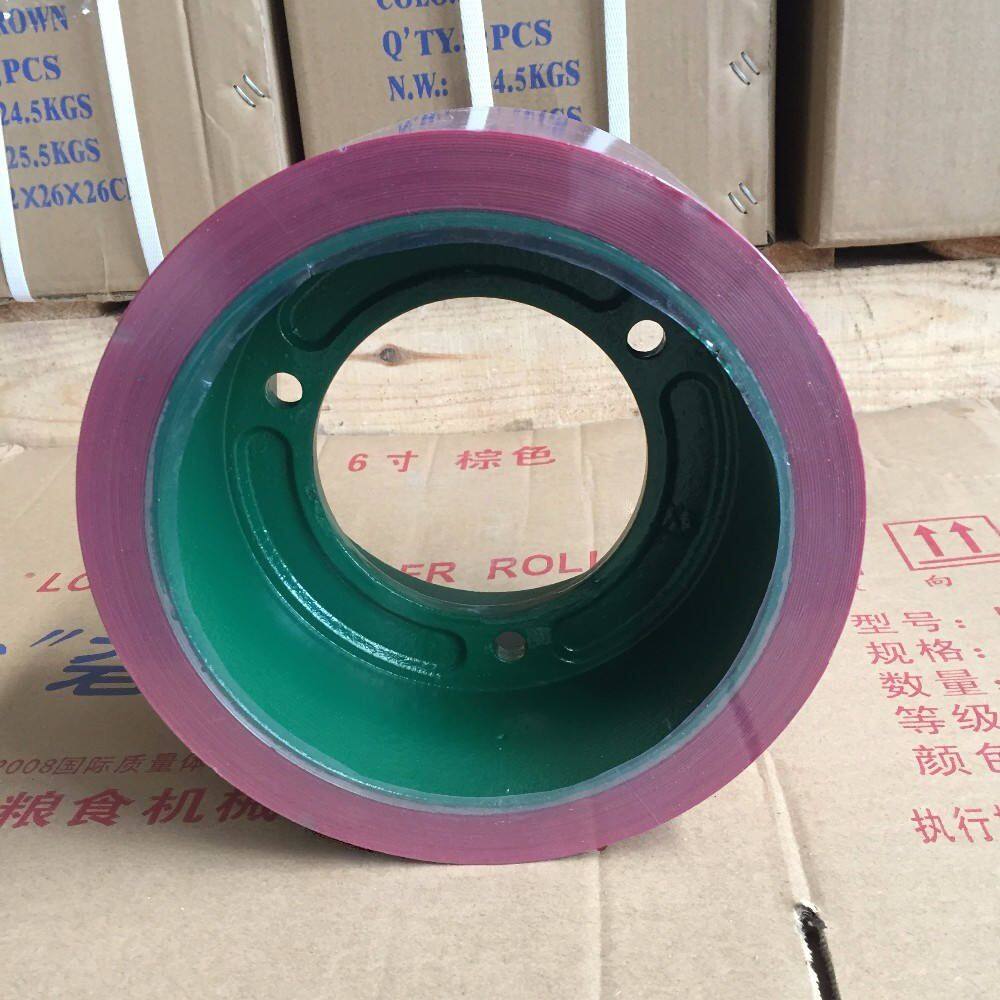

6'' small rice milling machine rubber roller

2.Temperature and Hardness Control: The proper hardness is shore A 82-86oC, and the temperature is below 50oC. When the temperature reaches above 60oC,  the hardness of roller should be reduced 4-8oC

3. Alternative use of rice milling machine rubber roller is recommended:

A: It can increase the usage life of roller and quantity of dehusking rice.

B: Each roller has break time during the working, which is good for recoving the function of rubber, adjusting the speed difference upon different diameters, and controlling the temperature effectively.

4. Two rollers should be at the same level to keep the space equal.

5. The paddy inputting should keep the balance.

6.  Keep the rate of the re-hulling under the limitation.
