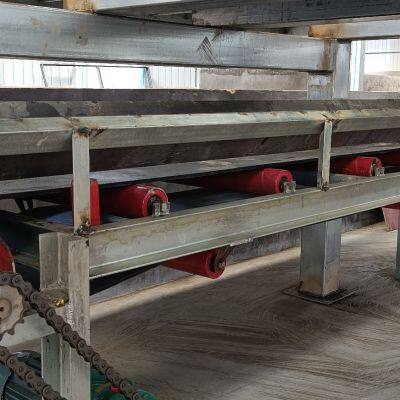

Help CenterOre Conveyor Belt EP300 700x5, High Strength Wear-resistant Conveyor Belt for Coal, Belt Width 800mm x 6mm Thick, NN200 750 x 3(3+1.5) Price: $101
Related Products
-
Coking Coal Conveyor Belt, Flame Retardant and Heat-resistant Conveyor Belt for Coke, Belt Width 900mm x 6mm Thick, NN500 1000 x 3(2+1) Price: $150NegotiableMOQ: 10 Meters -
High Strength Tear Resistant Conveyor Belt EP200 1400mmx8mm Thick for Power Plant, Thermal Power Plant Nylon Conveyor Belt NN400 1200X4 (2+1)NegotiableMOQ: 10 Meters
-
High Strength Tear Resistant Conveyor Belt NN300 1600mmx7mm Thick for Power Plant, Thermal Power Plant Nylon Conveyor Belt EP400 1200X5 (1.5+1.5)NegotiableMOQ: 10 Meters
-
High Strength Tear Resistant for Mineral Raw Material NN500 1800mmx10mm Thick,port Raw Material Nylon Conveyor Belt NN500 2000X6 (4.5+1.5)NegotiableMOQ: 10 Meters
-
NN400 500mmx5mm Thick Conveyor Belt for Transporting Soybeans, Equipped With Conveyor Belt Buckle, and EP300 650X2 (1.5+1.5) Grain Conveyor BeltNegotiableMOQ: 10 Meters
Conveyor belt, high strength wear-resistant conveyor belt , width:300mm -2000mm; thickness:5mm-16mm
Rubber conveyor belts have characteristics such as heat resistance, wear resistance, burn resistance, oil resistance, alkali resistance, heat resistance, and cold resistance. Mainly used for solid material transportation in various mining, metallurgy, steel, coal, hydropower, building materials, chemical, grain and other enterprises.
The conveyor belt is the main component of a belt conveyor, mainly used for large-scale continuous transportation in sectors such as coal, mining, metallurgy, chemical industry, construction, and transportation. The transported materials are divided into block, powder, paste, and finished items. From a microscopic perspective, the conveyor belt is mainly composed of three parts: skeleton material, cover layer, and base material, among which the cover layer is the key part that determines its performance and use. According to the different raw materials used for the covering layer, the conveyor belt industry can be divided into two categories: heavy-duty conveyor belts and light-duty conveyor belts. The former mainly uses rubber (including natural rubber and synthetic rubber) as the main raw material, and is therefore also known as rubber conveyor belts. Its use is concentrated in the fields of heavy industry and infrastructure construction.
Ordinary conveyor belt: covering layer: tensile strength not less than 15Mpa, elongation at break not less than 350%, wear amount ≤ 200mm3; The average value of interlayer adhesion strength in longitudinal specimens shall not be less than 3.2N/mm between layers; The distance between the covering adhesive and the fabric layer shall not be less than 2.1N/mm; The longitudinal elongation at break of the full thickness shall not be less than 10%; The elongation of the full thickness longitudinal reference force shall not exceed 1.5%.
Nylon (NN) and polyester (EP) conveyor belt cover layer, with a tensile strength of not less than 15Mpa, a tensile strength at break of not less than 350%, an average interlayer adhesive strength of not less than 4.5N/mm between fabric layers, and not less than 3.2N/mm between cover adhesive and fabric layers. The longitudinal tensile elongation at break of the entire thickness is not less than 10%, and the longitudinal reference force elongation at the entire thickness is not more than 4%. The cover adhesive is made of rubber and plastic blend, with a national standard tensile strength coefficient for the skeleton, and can be overlapped into a ring shape.
Classification of conveyor belt products
All conveyor belts must be connected in a circular shape before they can be used, so the quality of the conveyor belt joints directly affects the service life of the conveyor belt and whether the conveyor line can run smoothly and smoothly. The commonly used methods for connecting conveyor belts include mechanical joints, cold bonding joints, hot vulcanization joints, etc.
Conveyor belt mechanical joint method: generally refers to the use of belt buckle joints. This joint method is convenient and economical, but the efficiency of the joint is low and it is easy to damage, which has a certain impact on the service life of the conveyor belt product. In PVC and PVG whole core flame-retardant and anti-static conveyor belt joints, this joint method is generally used for products below grade 8.
Cold bonding method for conveyor belts: using cold bonding adhesive to make joints. This joint method is more efficient and economical than mechanical joints, and should have a good joint effect. However, in practice, due to the difficulty in controlling the process conditions and the significant impact of adhesive quality on the joint, it is not very stable.
Conveyor belt hot vulcanization joint method: Practice has proven to be the most ideal joint method, which can ensure high joint efficiency, is also very stable, has a long joint life, and is easy to master. However, there are disadvantages such as complicated process, high cost, and long joint time.
1. Ordinary conveyor belt:
Cover layer: The tensile strength is not less than 15Mpa, the elongation at break is not less than 350%, the wear amount is ≤ 200mm3, the average interlayer bonding strength of the longitudinal sample is not less than 3.2N/mm, the interlayer bonding strength of the cover adhesive is not less than 2.1 N/mm, the longitudinal elongation at break is not less than 10%, and the longitudinal reference force elongation at full thickness is not more than 1.5%
2. Nylon (NN) and polyester (EP) conveyor belts:
Cover layer: The tensile strength shall not be less than 15Mpa, the elongation at break shall not be less than 350%, the wear amount shall not be less than 200mm3, the average interlayer bonding strength of the longitudinal sample shall not be less than 4.5N/mm, the interlayer bonding strength shall not be less than 3.2 N/mm, the longitudinal elongation at break of the full thickness shall not be less than 10%, and the longitudinal reference force elongation at full thickness shall not be greater than 4%. Specifically, it is divided into EP100, EP150, EP200, EP250, EP300, EP350, EP400, etc; It can also be nylon canvas (NN), which can be divided into NN100, NN150, NN200, NN250, NN300, NN350, NN400, NN450, NN500 types, etc.
3. Conveyor belt (heat-resistant, acid resistant, alkali resistant).
4. Flame retardant conveyor belt.
NN100 500×4 Price: $31 per meter
NN150 600×4 Price: $48 per meter
NN250 800×4 Price: $100 per meter
NN300 1000×5 Price: $172 per meter
EP400 1200×5 Price: $245 per meter
EP500 1400×6 Price: $346 per meter
NN300 400x2(1.5+1.5) NN300 400x3(1.5+1.5) EP400 400x2(1.5+1.5) EP400 400x3(1.5+1.5) NN500 400x2(1.5+1.5) NN500 400x3(1.5+1.5)
NN300 400x2(2+1) NN300 400x3(2+1) EP400 400x2(2+1) EP400 400x3(2+1) NN500 400x2(2+1) NN500 400x3(2+1)
NN300 400x2(3+1.5) NN300 400x3(3+1.5) EP400 400x2(3+1.5) EP400 400x3(3+1.5) NN500 400x2(3+1.5) NN500 400x3(3+1.5)
NN300 500x2(1.5+1.5) NN300 500x3(1.5+1.5) EP400 500x2(1.5+1.5) EP400 500x3(1.5+1.5) NN500 500x2(1.5+1.5) NN500 500x3(1.5+1.5)
NN300 500x2(2+1) NN300 500x3(2+1) EP400 500x2(2+1) EP400 500x3(2+1) NN500 500x2(2+1) NN500 500x3(2+1)
NN300 500x2(3+1.5) NN300 500x3(3+1.5) EP400 500x2(3+1.5) EP400 500x3(3+1.5) NN500 500x2(3+1.5) NN500 500x3(3+1.5)
NN300 550x2(1.5+1.5) NN300 550x3(1.5+1.5) EP400 550x2(1.5+1.5) EP400 550x3(1.5+1.5) NN500 550x2(1.5+1.5) NN500 550x3(1.5+1.5)
NN300 550x2(2+1) NN300 550x3(2+1) EP400 550x2(2+1) EP400 550x3(2+1) NN500 550x2(2+1) NN500 550x3(2+1)
NN300 550x2(3+1.5) NN300 550x3(3+1.5) EP400 550x2(3+1.5) EP400 550x3(3+1.5) NN500 550x2(3+1.5) NN500 550x3(3+1.5)
NN300 600x2(1.5+1.5) NN300 600x3(1.5+1.5) EP400 600x2(1.5+1.5) EP400 600x3(1.5+1.5) NN500 600x2(1.5+1.5) NN500 600x3(1.5+1.5)
NN300 600x2(2+1) NN300 600x3(2+1) EP400 600x2(2+1) EP400 600x3(2+1) NN500 600x2(2+1) NN500 600x3(2+1)
NN300 600x2(3+1.5) NN300 600x3(3+1.5) EP400 600x2(3+1.5) EP400 600x3(3+1.5) NN500 600x2(3+1.5) NN500 600x3(3+1.5)
NN300 650x2(1.5+1.5) NN300 650x3(1.5+1.5) EP400 650x2(1.5+1.5) EP400 650x3(1.5+1.5) NN500 650x2(1.5+1.5) NN500 650x3(1.5+1.5)
NN300 650x2(2+1) NN300 650x3(2+1) EP400 650x2(2+1) EP400 650x3(2+1) NN500 650x2(2+1) NN500 650x3(2+1)
NN300 650x2(3+1.5) NN300 650x3(3+1.5) EP400 650x2(3+1.5) EP400 650x3(3+1.5) NN500 650x2(3+1.5) NN500 650x3(3+1.5)
NN300 700x2(1.5+1.5) NN300 700x3(1.5+1.5) EP400 700x2(1.5+1.5) EP400 700x3(1.5+1.5) NN500 700x2(1.5+1.5) NN500 700x3(1.5+1.5)
NN300 700x2(2+1) NN300 700x3(2+1) EP400 700x2(2+1) EP400 700x3(2+1) NN500 700x2(2+1) NN500 700x3(2+1)
NN300 700x2(3+1.5) NN300 700x3(3+1.5) EP400 700x2(3+1.5) EP400 700x3(3+1.5) NN500 700x2(3+1.5) NN500 700x3(3+1.5)
NN300 800x2(1.5+1.5) NN300 800x3(1.5+1.5) EP400 800x2(1.5+1.5) EP400 800x3(1.5+1.5) NN500 800x2(1.5+1.5) NN500 800x3(1.5+1.5)
NN300 800x2(2+1) NN300 800x3(2+1) EP400 800x2(2+1) EP400 800x3(2+1) NN500 800x2(2+1) NN500 800x3(2+1)
NN300 800x2(3+1.5) NN300 800x3(3+1.5) EP400 800x2(3+1.5) EP400 800x3(3+1.5) NN500 800x2(3+1.5) NN500 800x3(3+1.5)
NN300 900x2(1.5+1.5) NN300 900x3(1.5+1.5) EP400 900x2(1.5+1.5) EP400 900x3(1.5+1.5) NN500 900x2(1.5+1.5) NN500 900x3(1.5+1.5)
NN300 900x2(2+1) NN300 900x3(2+1) EP400 900x2(2+1) EP400 900x3(2+1) NN500 900x2(2+1) NN500 900x3(2+1)
NN300 900x2(3+1.5) NN300 900x3(3+1.5) EP400 900x2(3+1.5) EP400 900x3(3+1.5) NN500 900x2(3+1.5) NN500 900x3(3+1.5)
NN300 1000x2(1.5+1.5) NN300 1000x3(1.5+1.5) EP400 1000x2(1.5+1.5) EP400 1000x3(1.5+1.5) NN500 1000x2(1.5+1.5) NN500 1000x3(1.5+1.5)
NN300 1000x2(2+1) NN300 1000x3(2+1) EP400 1000x2(2+1) EP400 1000x3(2+1) NN500 1000x2(2+1) NN500 1000x3(2+1)
NN300 1000x2(3+1.5) NN300 1000x3(3+1.5) EP400 1000x2(3+1.5) EP400 1000x3(3+1.5) NN500 1000x2(3+1.5) NN500 1000x3(3+1.5)
NN300 1200x3(1.5+1.5) NN300 1200x4(1.5+1.5) EP400 1200x3(1.5+1.5) EP400 1200x4(1.5+1.5) NN500 1200x3(1.5+1.5) NN500 1200x4(1.5+1.5)
NN300 1200x3(2+1) NN300 1200x4(2+1) EP400 1200x3(2+1) EP400 1200x4(2+1) NN500 1200x3(2+1) NN500 1200x4(2+1)
NN300 1200x3(3+1.5) NN300 1200x4(3+1.5) EP400 1200x3(3+1.5) EP400 1200x4(3+1.5) NN500 1200x3(3+1.5) NN500 1200x4(3+1.5)
NN300 11400x4(1.5+1.5) NN300 1400x4(1.5+1.5) EP400 11400x4(1.5+1.5) EP400 1400x4(1.5+1.5) NN500 11400x4(1.5+1.5) NN500 1400x4(1.5+1.5)
NN300 11400x4(2+1) NN300 1400x4(2+1) EP400 11400x4(2+1) EP400 1400x4(2+1) NN500 11400x4(2+1) NN500 1400x4(2+1)
NN300 11400x4(3+1.5) NN300 1400x4(3+1.5) EP400 11400x4(3+1.5) EP400 1400x4(3+1.5) NN500 11400x4(3+1.5) NN500 1400x4(3+1.5)
NN300 1600x4(1.5+1.5) NN300 1600x5(1.5+1.5) EP400 1600x4(1.5+1.5) EP400 1600x5(1.5+1.5) NN500 1600x4(1.5+1.5) NN500 1600x5(1.5+1.5)
NN300 1600x4(2+1) NN300 1600x5(2+1) EP400 1600x4(2+1) EP400 1600x5(2+1) NN500 1600x4(2+1) NN500 1600x5(2+1)
NN300 1600x4(3+1.5) NN300 1600x5(3+1.5) EP400 1600x4(3+1.5) EP400 1600x5(3+1.5) NN500 1600x4(3+1.5) NN500 1600x5(3+1.5)
NN300 2000x5(1.5+1.5) NN300 2000x6(1.5+1.5) EP400 2000x5(1.5+1.5) EP400 2000x6(1.5+1.5) NN500 2000x5(1.5+1.5) NN500 2000x6(1.5+1.5)
NN300 2000x5(2+1) NN300 2000x6(2+1) EP400 2000x5(2+1) EP400 2000x6(2+1) NN500 2000x5(2+1) NN500 2000x6(2+1)
NN300 2000x5(3+1.5) NN300 2000x6(3+1.5) EP400 2000x5(3+1.5) EP400 2000x6(3+1.5) NN500 2000x5(3+1.5) NN500 2000x6(3+1.5)
