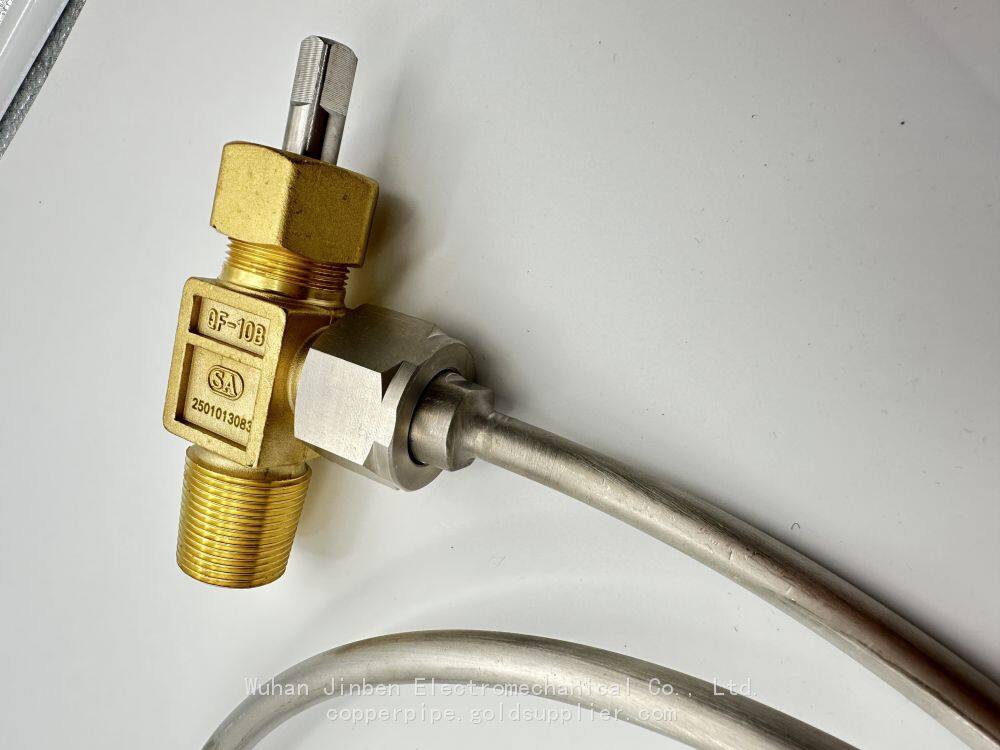

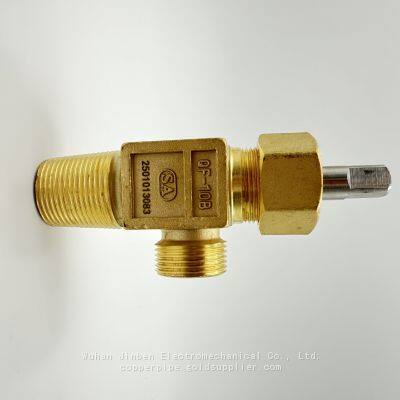

Brief Introduction to Brass Angle Valve QF10B
Brass angle valve QF10B is mainly used for liquid chlorine cylinders, with the following features:
• Material: Usually made of brass, which has good corrosion resistance and can adapt to chlorine environments.
• Specifications and Parameters: The nominal working pressure is generally 2MPa, and the nominal diameter is 6mm. The outlet thread is G3/4, and the thread connected to the cylinder is PZ27.8, complying with the GB8335 standard.
• Connection Type: Threaded connection, easy to install and disassemble, and can be firmly installed on liquid chlorine cylinders.
• Drive Mode: Manual operation. The valve is opened and closed by manually operating the valve stem, which is simple and convenient.
• Application Scope: Suitable for chlorine as the medium, mainly used in occasions involving liquid chlorine storage and use, such as chlorination processes in sewage treatment, to control the inlet and outlet of liquid chlorine.
• Structural Features: It is a right-angle valve, with the pipeline forming a 90° angle at the valve. The flow path is simple, and it has good self-cleaning performance, which can effectively prevent medium blockage.
Customization is supported. We have served China's chlorination industry for 20 years and export to Southeast Asian countries and other regions all year round.
