IS200VRTDH1DAB GE Printed Circuit Board

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

IS200VRTDH1DAB GE Printed Circuit Board thumbnail-1

IS200VRTDH1DAB GE Printed Circuit Board thumbnail-2

IS200VRTDH1DAB GE Printed Circuit Board thumbnail-3

IS200VRTDH1DAB GE Printed Circuit Board photo-1

IS200VRTDH1DAB GE Printed Circuit Board photo-2

IS200VRTDH1DAB GE Printed Circuit Board photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

The IS200VRTDH1DAB is a printed circuit board in GE's Mark VI control system, primarily used for temperature signal acquisition and processing. Here is its detailed information:

Product Functions: It is designed to receive 16 channels of three-wire RTD inputs, provide excitation for RTDs, capture the signals generated by them, convert the signals into digital temperature values, and transmit these digital temperature values to the VCMI (Vehicle Control Module Interface) via the VME backplane, which are then forwarded to the controller. Additionally, it can detect RTD short-circuit and open-circuit faults by checking whether the detected values are out of range.
Product Parameters:

Input Voltage: 220V
Output Voltage: 24V
Frequency Range: 50-60Hz
Maximum Power: 100W
Number of Channels: 16 channels
Signal Types: Supports voltage and resistance signals
Communication Interfaces: Supports industrial automation communication protocols such as Profibus
Scanning Speed: 40ms (25Hz)
Operating Temperature Range: -10°C to 60°C

Product Features: It has high-precision conversion capability, which can accurately convert input voltage to output voltage. It supports a wide input voltage range and can collect data from multiple temperature points simultaneously. It can compensate for the nonlinear characteristics of RTDs and automatically perform cold junction compensation to eliminate the impact of ambient temperature on measurement results. Moreover, this module can handle lead resistances up to 15 ohms, ensuring accurate temperature readings even in installations requiring long cable connections.

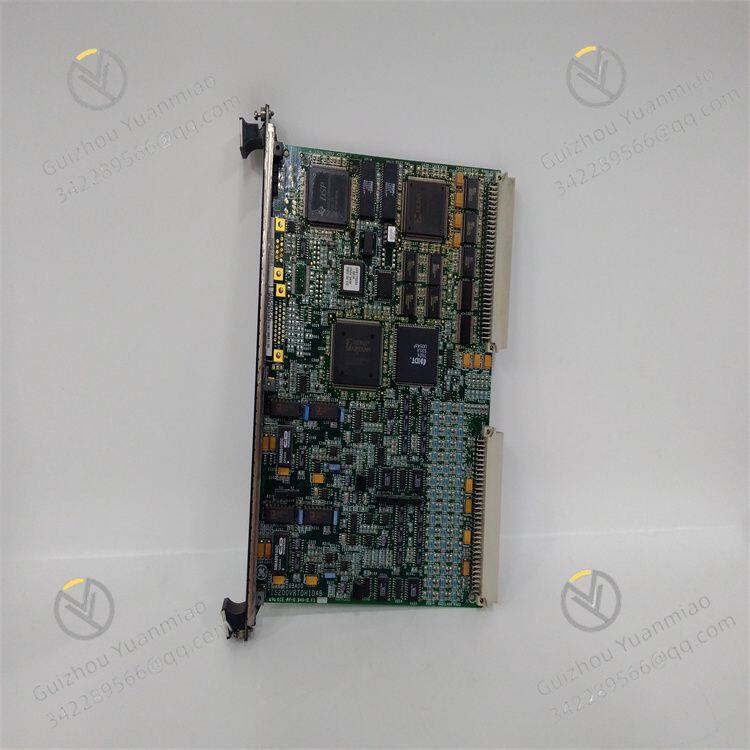

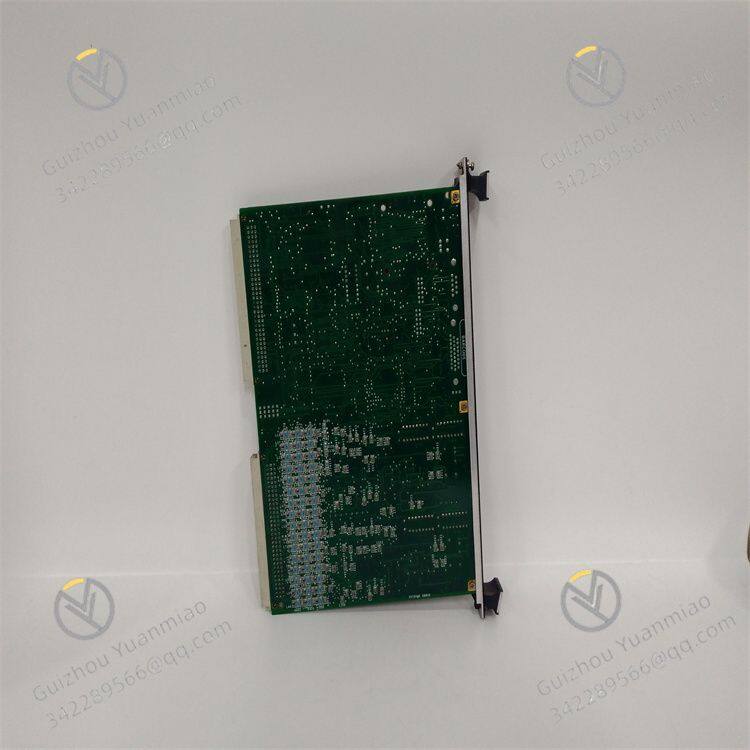

Physical Characteristics: The circuit board contains hundreds of resistors, over 200 capacitors, and more than 200 integrated circuits, with some components located on the back. The front panel is fixed with three screws, there are two backplane connectors on the rear edge of the board, and both the board and the panel are marked with the GE logo and the board ID number.
