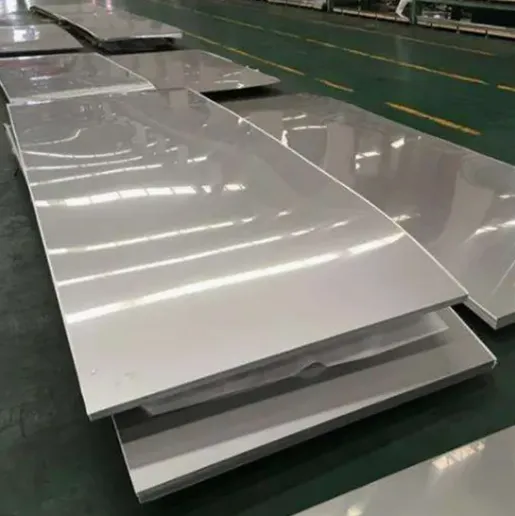

Titanium Hot Rolled Steel Sheet Manufacturer Grade 5 Alloy Plate

FOB Price

Negotiable / Ton

100000 Tons(Min.Order)

Supply Ability 0 Ton / Tons per Month
Port TIANJIN
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	TA2 Titanium Alloy	Shape	Sheet
Color	Silver	Surface Treatment	Spray Coating
Transport Package	Standard Transport Package	Specification	customized
Origin	China

Product Description

Steel Plate Factory Video

Basic Info.

Model NO.

customized

Shape

Sheet

Surface Treatment

Sandblasting

Product Name

Titanium Plate

Length

2000-6000mm

Width

500-3000mm

Feature

High Specification Strength

Surface

Bright

Certification

ISO 9001:2008

Type

Titanium Sheets

Application

Industrial, Medical

Technique

Hot Rolled

Grade

Gr1, Gr2, Gr5, Gr7, Gr9, Ect

Transport Package

Standard Transport Package

Specification

customized

Origin

China

Production Capacity

100ton/Month

Titanium plate features:

1. Titanium plate is the surface of the oxide film equivalent to a good wear resistant hair separation agent, the use of titanium plate saves the separation agent, so that the plate stripping is easy, exempt from the pre-treatment process of the plate, titanium plate is half lighter than the copper plate.
2. The service life of titanium plate is more than 3 times that of copper plate, which can reach 10 to 20 years according to operating conditions
3. Electrolytic copper prepared with titanium seed plate has dense crystalline structure, smooth surface and excellent quality.
4. Because the titanium plate does not need to apply separation agent, it can avoid pollution of copper electrolyte.
5. Increase production capacity to reduce the production cost of electrolytic copper, so as to have better economic benefits.

1.Chemical requirements
Grade	N(≤)	C(≤)	H(≤)	Fe(≤)	O(≤)	Al(≤)	V(≤)	Pd(≤)	Mo(≤)	Ni(≤)	Ti
GR1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	bal
GR2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	bal
GR3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	bal
GR4	0.05	0.08	0.015	0.2	0.4	/	/	/	/	/	bal
GR5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/	bal
GR7	0.03	0.08	0.015	0.3	0.25	/	/	0.12~0.25	/	/	bal
GR9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
GR12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2~0.4	0.6~0.9	bal
GR23	0.05	0.08	0.012	0.25	0.13	5.5~6.5	3.5~4.5				bal

2.Tensile requirements
Grade	Tensil strength(≥)		Yeild strength(≥))		Elongation(≥)%)
Grade	ksi	Mpa	ksi	Mpa	Elongation(≥)%)
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR3	65	450	55	380	18
GR4	80	550	70	483	15
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	483	15
GR12	70	483	20	345	18
GR23	120	828	110	760	10

Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.

Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.

Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.

Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.

Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
