Astmb622 Alloyc-276/Hastelloyc276/N10276/2.4819/Inconel 276 Nickel Based Alloy Nickel Alloy Steel Seamless Corrosion Resistant Tube--Evaporators Tubes
US$ 22 - 30
MOQ: 100 Kilograms
Key Specifications
Get Latest Price
Type:
Stainless Steel Pipes
Certification:
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Custom Cold Rolled Hastelloy B3 N10675 Hastelloy C 276 N10276 Hastelloy C 22 N06022 Hastelloy G35 N06035 Nickel Alloy Stainless Steel Seamless PipeUS$ 22 - 30MOQ: 100 Kilograms -
Nickel Alloy C-276 Hastelloy C-276 (UNS N10276) Steel TubeUS$ 10 - 30MOQ: 50 Kilograms
-
Corrosion Resistant Chemical Industry Hastelloy B3 N10675 Hastelloy C 276 N10276 Nickel Alloy Stainless Steel Seamless Pipe Supplier in ChinaUS$ 22 - 30MOQ: 100 Kilograms
-
Hastelloy C-276 Nickel Alloy Tube Uns N10276 Chrome Nickel PipeUS$ 22 - 30MOQ: 100 Kilograms
-
Hastelloy Steel Tube Nickel and Nickel Base Alloy C-276 N10276 Alloy800US$ 22 - 30MOQ: 100 Kilograms
Type
Stainless Steel Pipes
Certification
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape
Round
Grade
Other
Technique
Other
Surface Treatment
Polished
Standard
ASTM, AISI, GB, JIS, DIN, EN, Other
Specification
OEM
Trademark
ZHONGZHENG INTERNATIONAL
Origin
China
Basic Info.
Model NO.
C276
Grade
Nickel Alloy Steel
Certification
ISO, AISI, ASTM, GB, EN, DIN, JIS
Shape
Round
Technique
Cold Rolled
Surface Treatment
Pickling
Tolerance
-+10%
Processing Service
Bending, Welding, Decoiling, Punching, Cutting
Pipe Form Type
Seamless Steel Pipe
Transport Package
Wooden Case
Specification
OD: 10.3MM-914.4MM
Trademark
zhongzheng
Origin
China
HS Code
75071200
Production Capacity
15000ton/Year
Product Description
| Product Name | Nickel alloy steel tube |
| Grade | Hastelloy C276 |
| Standards | JIS, AISI, ASTM, GB, DIN, EN |
| Diameter | 1/8''-36'' 10.3mm-914.4mm |
| Thickness | 1mm-70mm |
| Length | 5000mm-12000mm,or customize |
| Surface | AP,BA,2B,or others |
| Pipe Ends | Bevel end,Plain end,Bevel both ends,Bevel large end,Bevel small end,or others |
| Application |
petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. |
| Quality and test | Radiography Test Report,PMI,Heat Treatment Charts,Manufacturer Test Certificate,etc. |
| Packing | Ply Wooden Boxes,PE Fabric Bundles,Standard seaworthy export packing,Plastic Bags, or as required |
| Delivery time | 20-75 days |

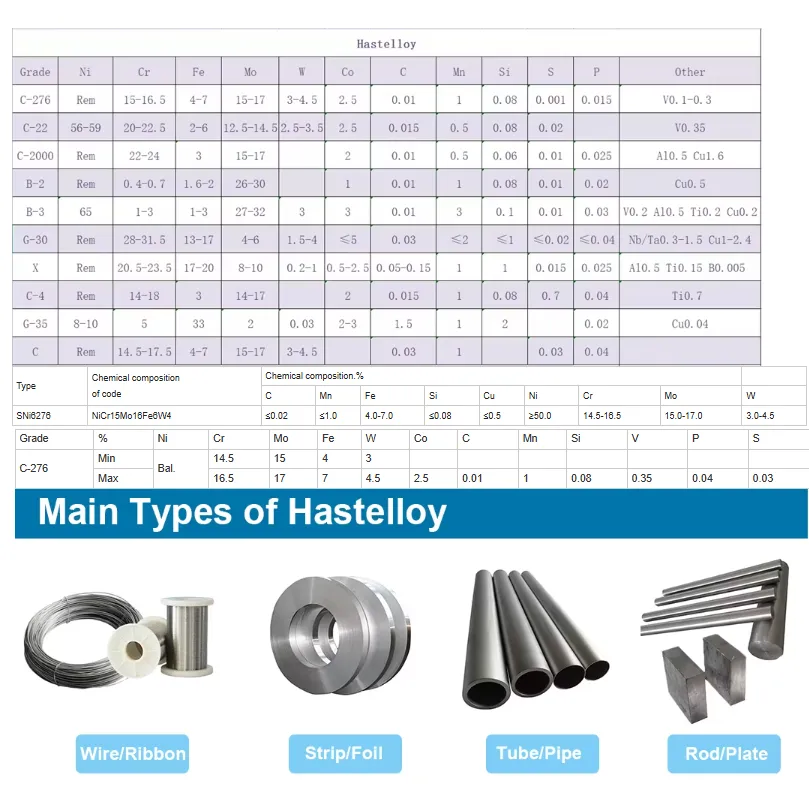

Chemical Composition
| Grade | Ni | Cr | Mo | Fe | W | C | Si | Co | Mn | V | P | S |
| Hastelloy C276 | Balance | 14.50-16.50 | 15.00-17.00 | 4.00-7.00 | 3.00-4.50 | ≤0.01 | ≤0.08 | ≤2.50 | ≤1.00 | ≤0.35 | ≤0.04 | ≤0.03 |
Mechanical Properties
| Grade | Tensile Strength ksi(MPa) | Yield Strength ksi(MPa) | Elongation (%) |
| HASTELLOY C276 | ≥100(690) | ≥41(283) | ≥40 |
The ASTM B622 Nickel alloy seamless tube and pipe tolerance
| B622 (For Cold-worked Pipe and Tube) |
10≤D | ±0.13 | ±15% | OD50.8:+4.8/-0 Details refer to B829 |
||
| 16≤D | ±0.19 | ±10% | ||||
| 38≤D | +0.25 | |||||
| 76≤D≤82 | +0.38 | |||||
| B622 (For Cold-worked Pipe and Tube) |
19≤D≤38 | +0.4/-0.8 | ±12.5% | |||
| 38.1≤D≤82 | +0.8/-0.8 | |||||
| B622 (For Cold-worked Pipe and Tube) |
25≤D≤48 | +0.38 | +16%/-12.5% | |||
| 48≤D≤82 | ±0.51 |
