Home > Products > plastic recycling machines > Plastic Shredder/ Plastic Crusher, Granulator

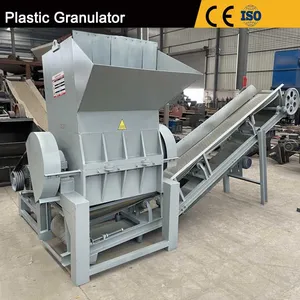

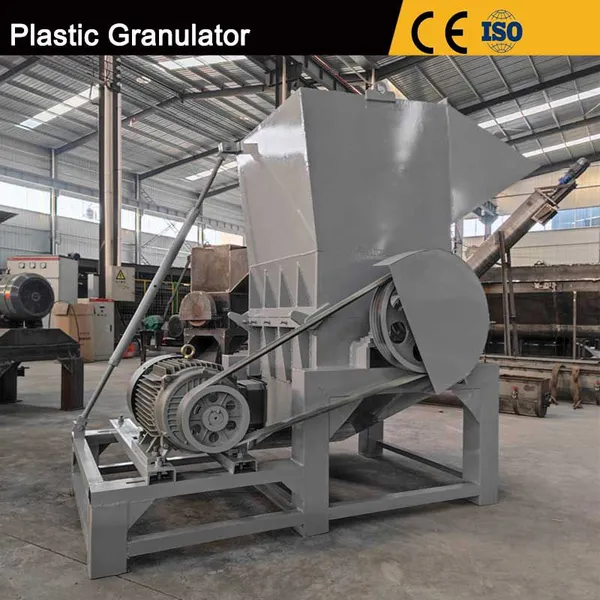

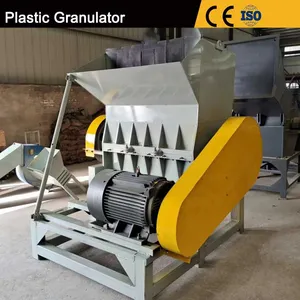

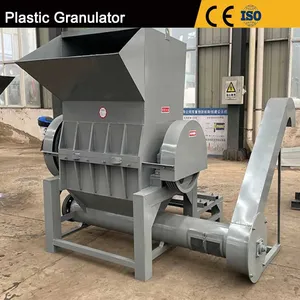

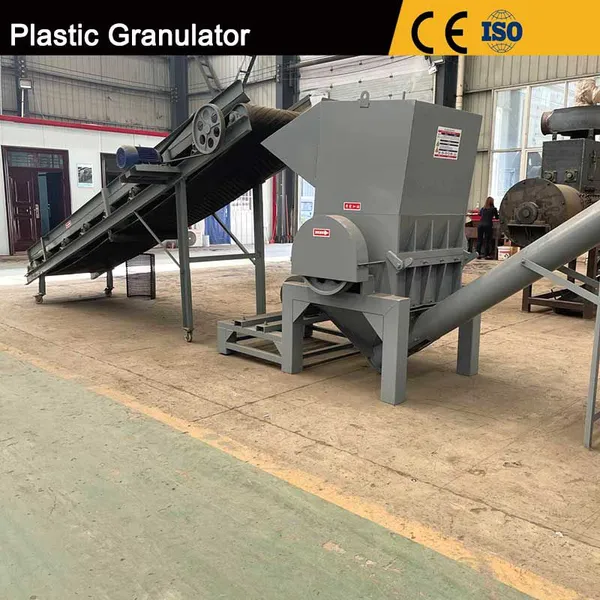

Plastic Shredder/ Plastic Crusher, Granulator

FOB Price

USD $6800

≥1 Set

Supply Ability 0 Set / Sets per Month
Port QINGDAO
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	ISO, CE	Warranty	2 year
After-sales Service	engineer ready to serve	Screw	Other
Automation	Automatic	Knife Type	Piece Knife Crusher
capacity	300-400KG/H	area	15㎡
power	52KW	loading time	15 days
Transport Package	20GP	Specification	WL-T300 TURBO
Trademark	WALLE INDUSTRY	Origin	CHINA

Product Description

Application Scope:

Large appliance housings

Automotive bumpers

Injection-molded products

Product Advantages:

High-strength, customizable main shaft rotors. The main shaft rotors are constructed from high-strength welded steel with a unique V-shaped design. All main shafts undergo rigorous dynamic and static balancing tests to ensure reliable machine operation. Customized main shaft designs can also be provided to meet specific material requirements.
External bearing housing. The bearing housing is mounted on the exterior of the machine body, with the spindle and housing sealed by a seal ring to prevent shredded material from entering the bearings, thereby extending bearing lifespan.
Hydraulic opening/closing mechanism. The upper and lower machine housings and screen frame are equipped with hydraulic opening/closing mechanisms, facilitating machine maintenance and the replacement of blades and screens.
Blade replacement safety device. During blade replacement, the spindle rotor is secured to facilitate blade replacement. Simultaneously, the circuit is disconnected to prevent accidental operation of the machine, ensuring personnel safety.

Product specifications:

model	WLC600/350	WLC600/450	WLC800/450	WLC800/600	WLC1000/600	WLC1200/600
chamber(mm)	600	600	800	800	1000	1200
rotation diameter(mm)	350	450	450	600	600	600
speed(rpm)	580	580	580	520	520	520
blades qty(PCS）	2x3	2x3	2x3	2x5/2x7	2x5/2x7	2x5/2x7
fixed blades qty (PCS）	2	2	4	4	4	4
power(KW）	22	30	37	55	11/15	5/6
hydraulic (KW)		1.1	1.5	1.5	1.5	1.5
screen(mm）	10-50	10-50	10-50	10-50	10-50	10-50
feeder size(mm）	450x600	530x600	530x800	705x800	800x1000	850x1200
(LWH）(mm）	1650x1370x1950	2000x1550x2550	2000x1750x3150	2100x1750x3200	2300x1950x3350	2300x2150x3350
weight(kg）	1800	2600	3100	3500	4500	5500

Company Profile

Henan Walle Industry Co., Ltd

Walle industry is an industrial equipment manufacturer & trader from China, with over 16 years of rich experience and unique knowledge, We help our customers around the world solve a variety of problems from crushing and screening all the way through different materials, we have remained dedicated to our values and to providing material processing solutions that improve the lives of people around the world.
